Diverge 4 Sport
Fully assembled, tuned, and test-ridden—ready to ride at pickup from any DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required. For orders that include a frameset please visit our support center to make sure you have the specialty tools and skills required.
If you decide to take your bike to a local retailer for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.

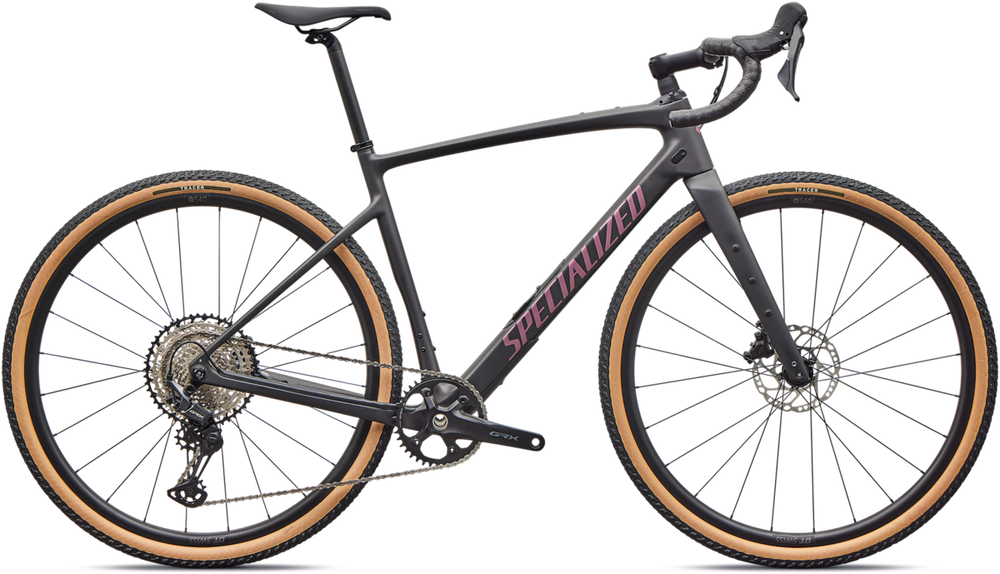

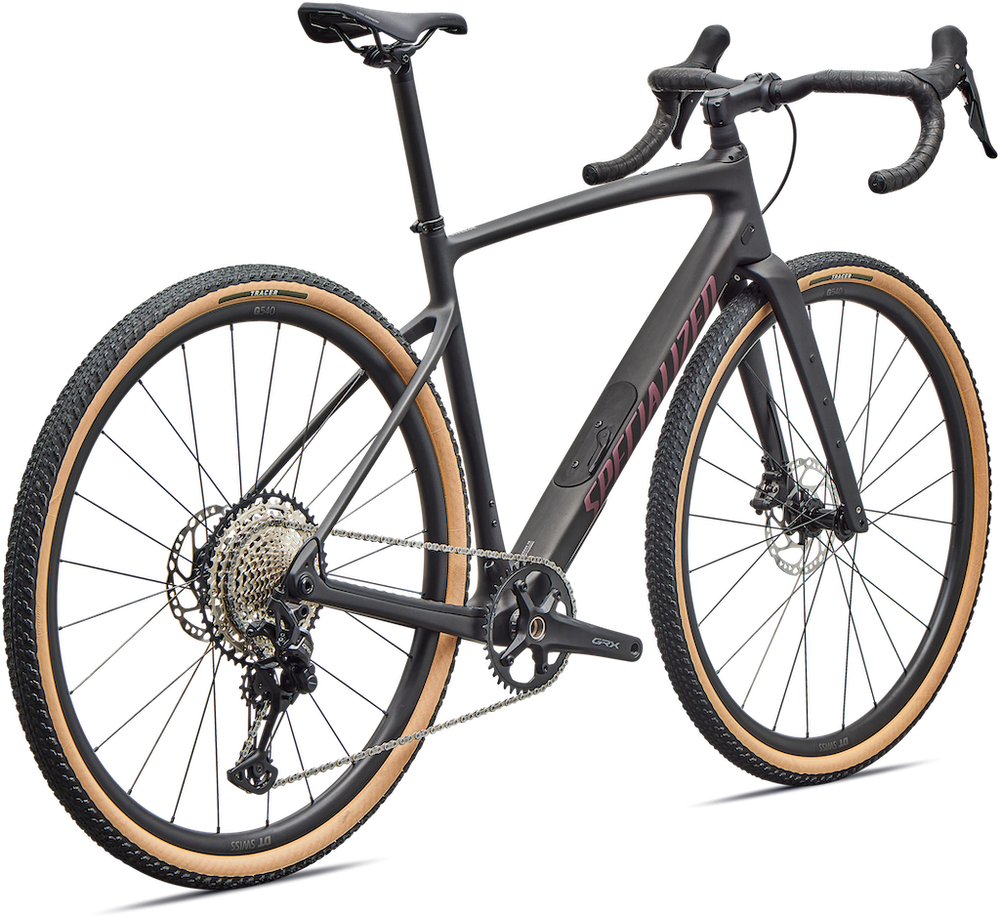

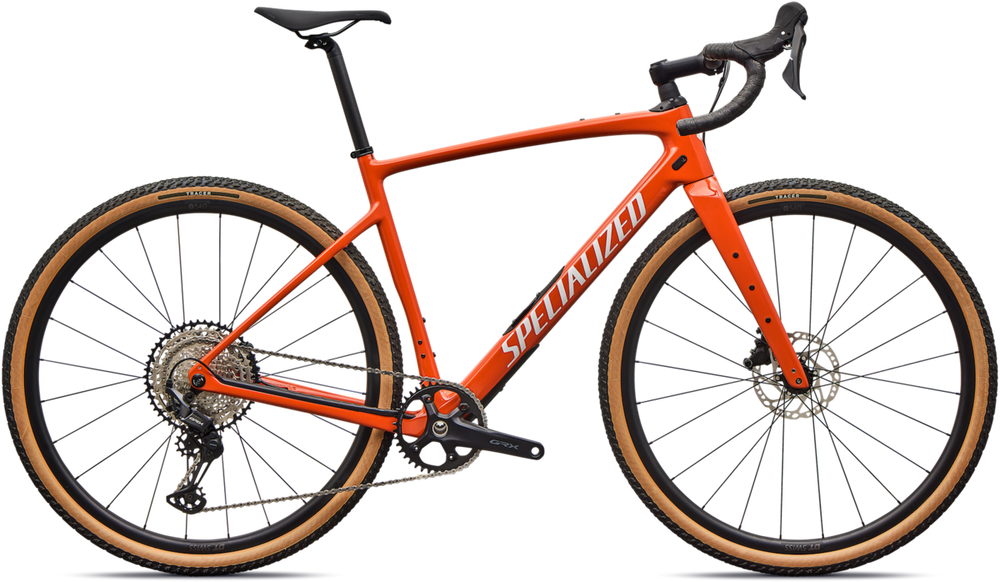

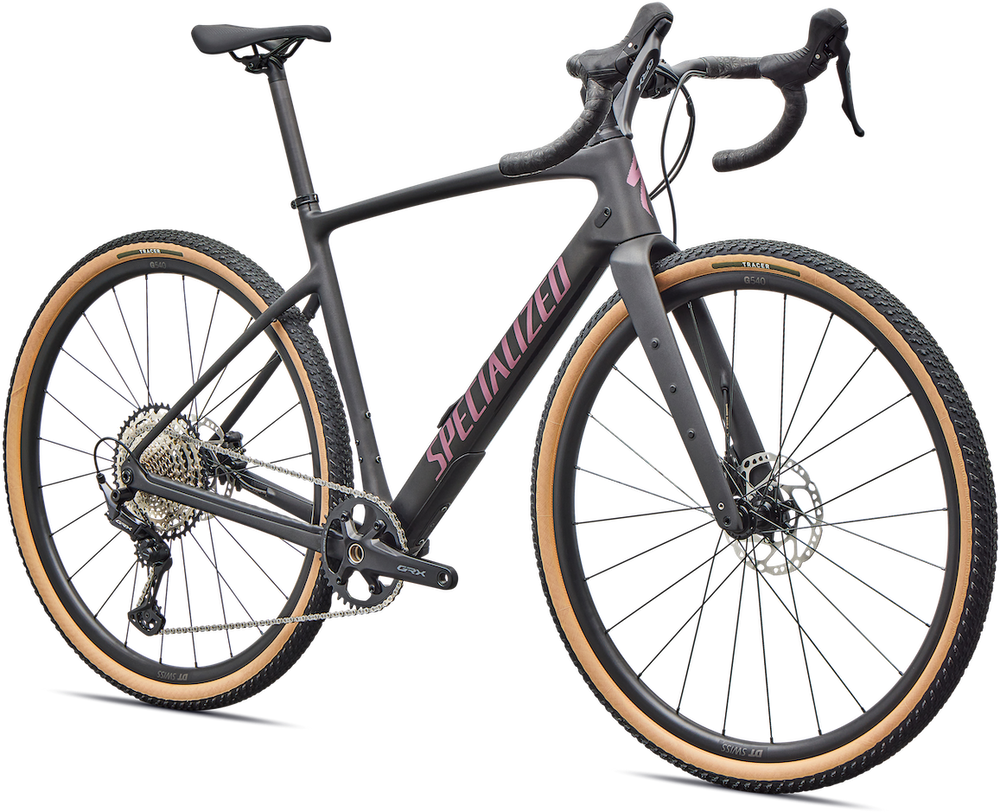

Diverge 4 Sport
Overview
Overview
- Use: Gravel Adventure/Race
- Frameset: FACT 9r Carbon
- Suspension: Future Shock 3.2
- Drivetrain/Wheels: SRAM Rival AXS / Roval Terra C
- Storage: SWAT 4.0
- 9.79kg
Technical Specifications
Technical Specifications
| Frame | Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Fork | Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc |
| Wheels | DT Swiss G540 700c, Center Lock Disc |
| Tires | Tracer 700x45, Tan Sidewall, Tubeless Ready |
| Bottom bracket | Shimano BSA Threaded 68mm |
| Crankset | Shimano GRX FC-RX610, 40T |
| Shifters | Shimano GRX RX820 12 speed |
| Rear derailleur | Shimano GRX RX822-SGS, 12-speed |
| Cassette/freewheel | Shimano SLX, CS-M7100, 12-speed, 10-51t |
| Chain | Shimano SLX, M7100, 12-speed |
| Brakes | Shimano GRX 600, Hydraulic Disc |
| Handlebars | Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare |
| Tape/grips | Supacaz Super Sticky Kush |
| Stem | Future Stem, Comp |
| Seatpost | Carbon, single-bolt, 27.2mm |
| Saddle | Body Geometry Power Sport, steel rails |
| Pedals | Sold Separately |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
| Stack (mm) (mm) | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach (mm) (mm) | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length (mm) (mm) | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle (°) | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop (mm) (mm) | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail (mm) (mm) | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full (mm) (mm) | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset (mm) (mm) | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center (mm) (mm) | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length (mm) (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase (mm) (mm) | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal (mm) (mm) | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height (mm) (mm) | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length (mm) (mm) | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle (°) | 74.5 | 74 | 74 | 74 | 74 | 74 |
| Crank Length (mm) (mm) | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width (mm) (mm) | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length (mm) (mm) | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width (mm) (mm) | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length (mm) (mm) | 330 | 330 | 380 | 380 | 380 | 380 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
| height (cm) | 155-163 | 163-170 | 170-175 | 175-180 | 180-188 | 188-196 |
Sizing to be used as a reference only. Chat with us if you have any questions.
