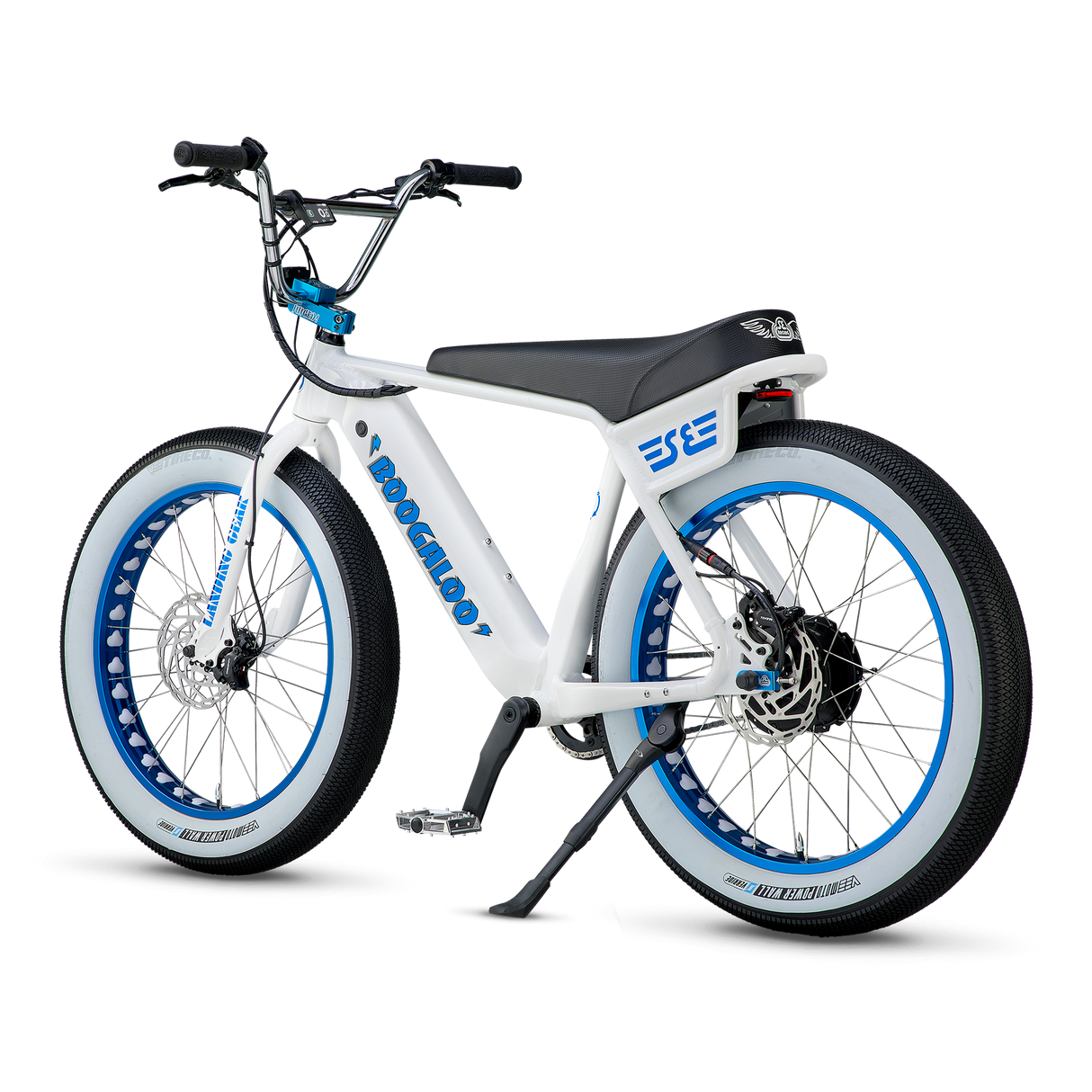

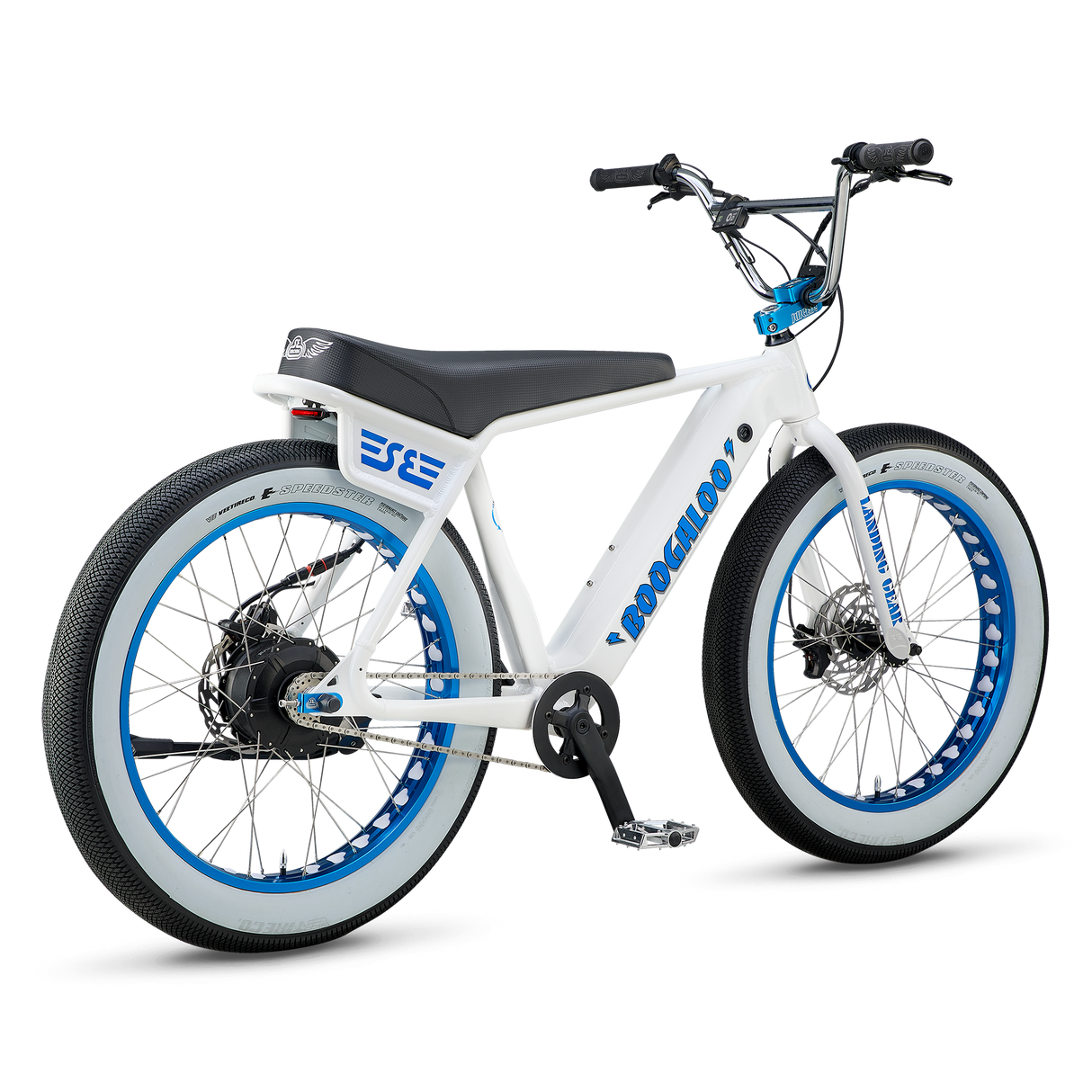

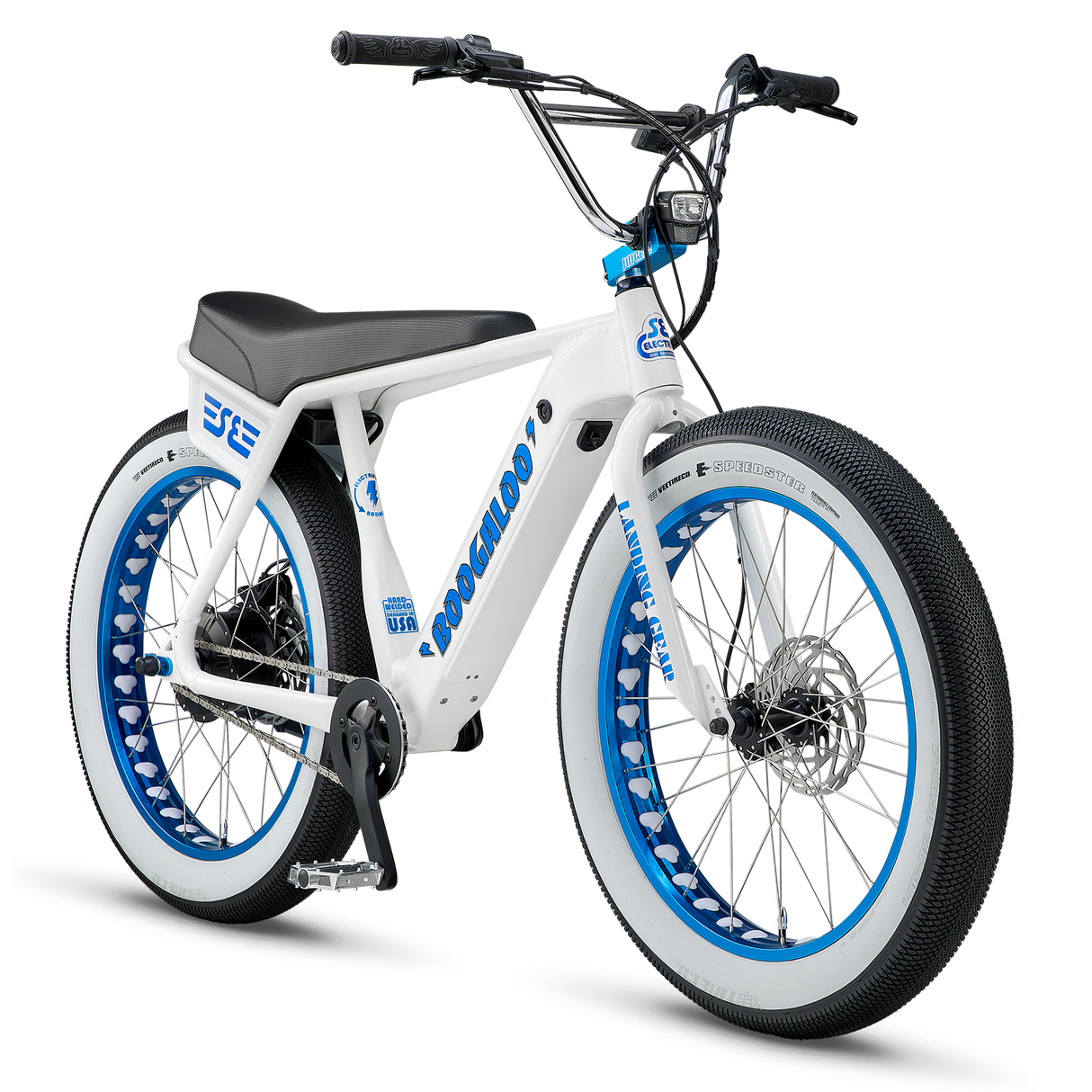

Electric Boogaloo 24" Electric Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Electric Boogaloo 24" Electric Bike
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | 6061 Aluminum, Double Top Tube, Removeable Internal Battery, SE Seat Brace w/ Built-In Grab Handle, Controller Hidden Beneath Seat, Internally-machined Tapered Integrated Head Tube, Tapered Seat Tube, Looptail Rear End w/ 175mm Spaced Dropouts, Disc Brake Tabs, Water Bottle Mounts |
| Fork | Landing Gear, Full Cr-Mo, Disc Tabs, Tapered Steerer Tube, 402mm Axle to Crown, 50mm Offset, 135mm Spaced Dropouts |
| Crankset | Samox Aluminum, 165mm, 34T Steel Chainring with Chainguard |
| Pedals | FPD Low-profile Platform |
| Chain | KMC Z1eHX |

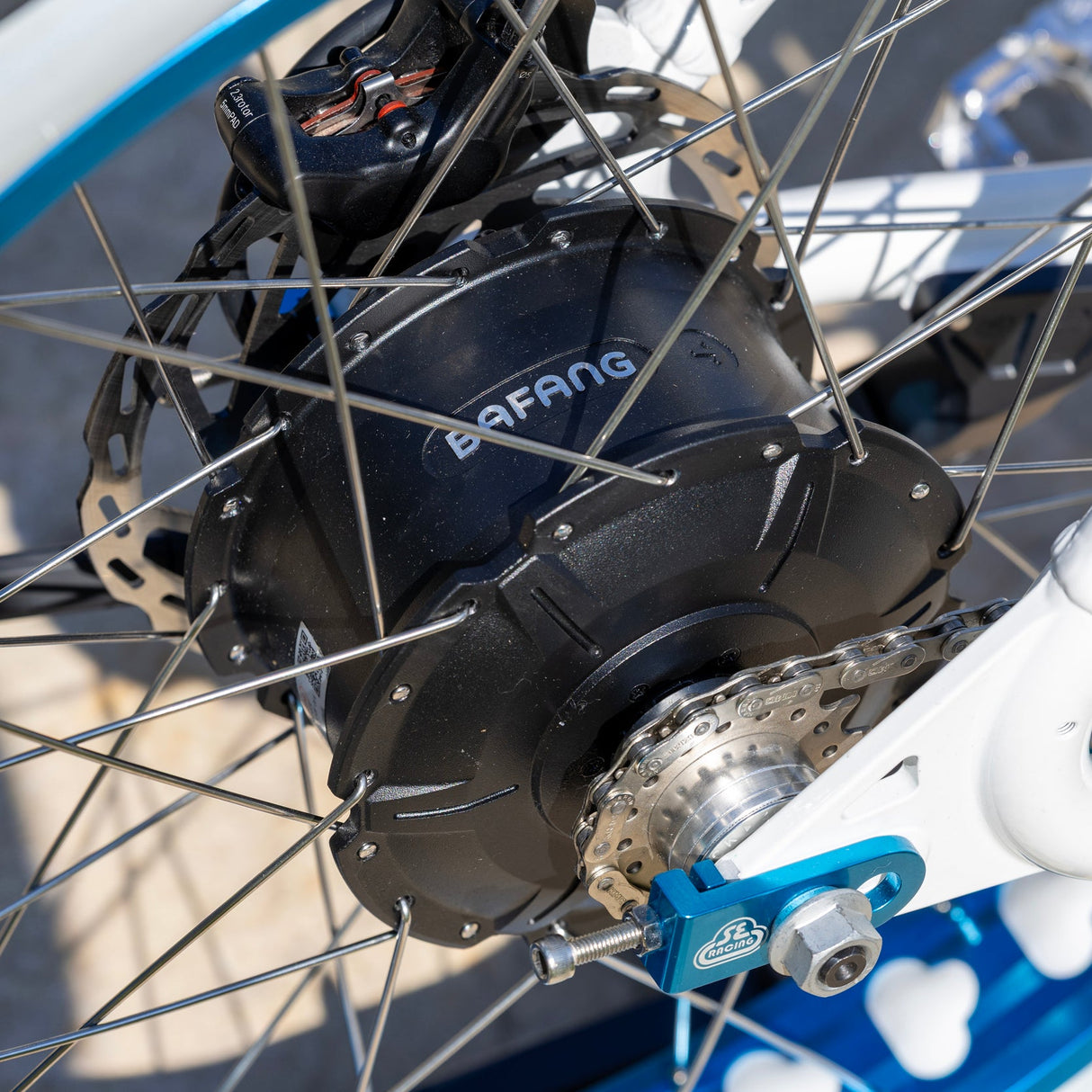

| Wheelset | Alloy 36H Nutted Sealed Front Hub, Bafang H550 Rear Hub, 135mm Front Hub & 175mm Rear Hub, w/ 66mm SE Bubble Fat Rims, 16T Freewheel, Stainless Spokes |

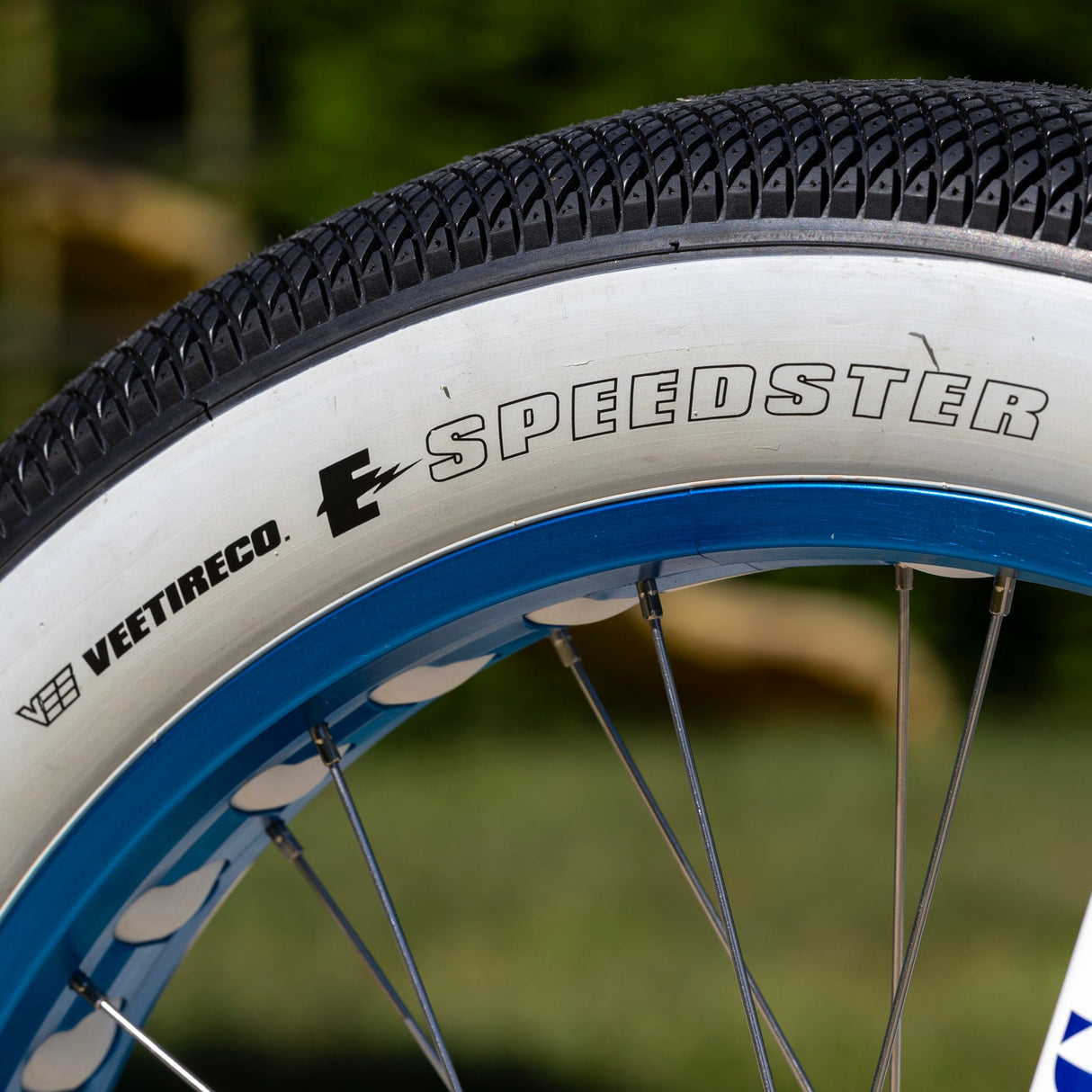

| Tires | Vee Tire Co x SE Racing Speedster, Performance Compound, Override Core, E-25, 24" x 3.5" Front & Rear |

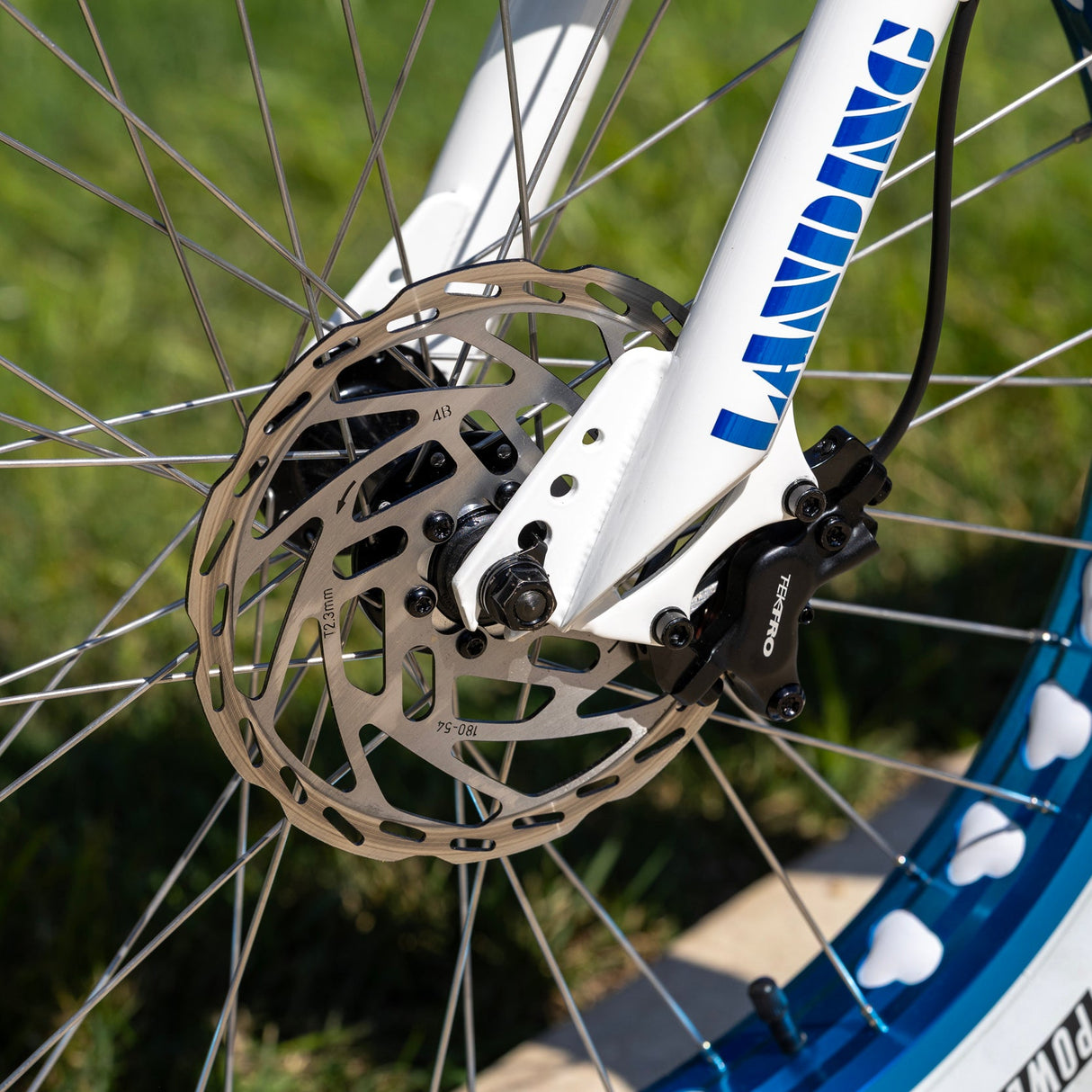

| Brakeset | Tektro HD-E3940, Hydraulic Disc, 4-Piston, Formulated Mineral Oil, Resin Pads, 180mm Rotors |
| Brake levers | Tektro HD-E3940, 3-Finger Lever, New Reservoir Cap |
| Headset | Neco, Sealed 1-1/8"-1.5" Tapered, Integrated Headset |

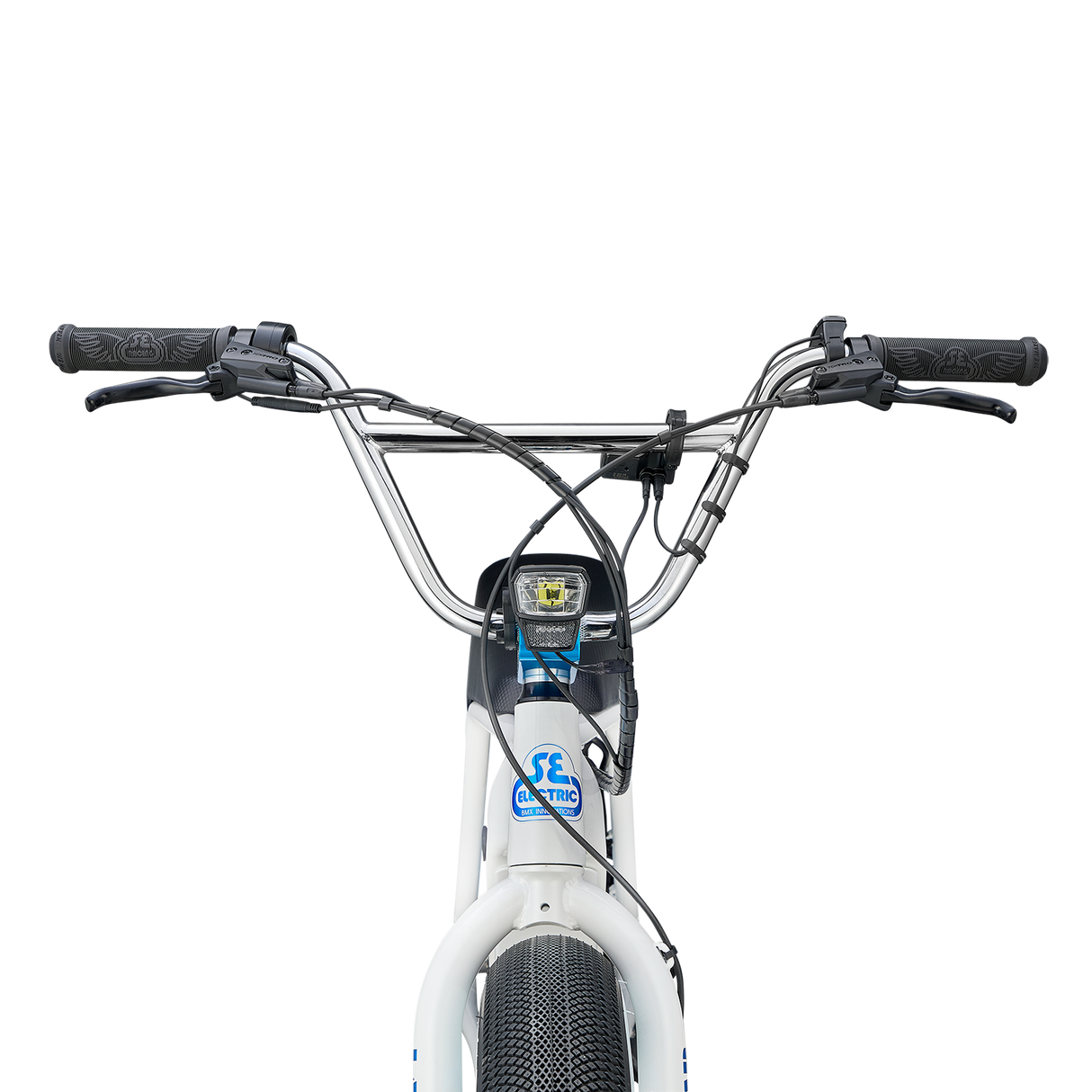

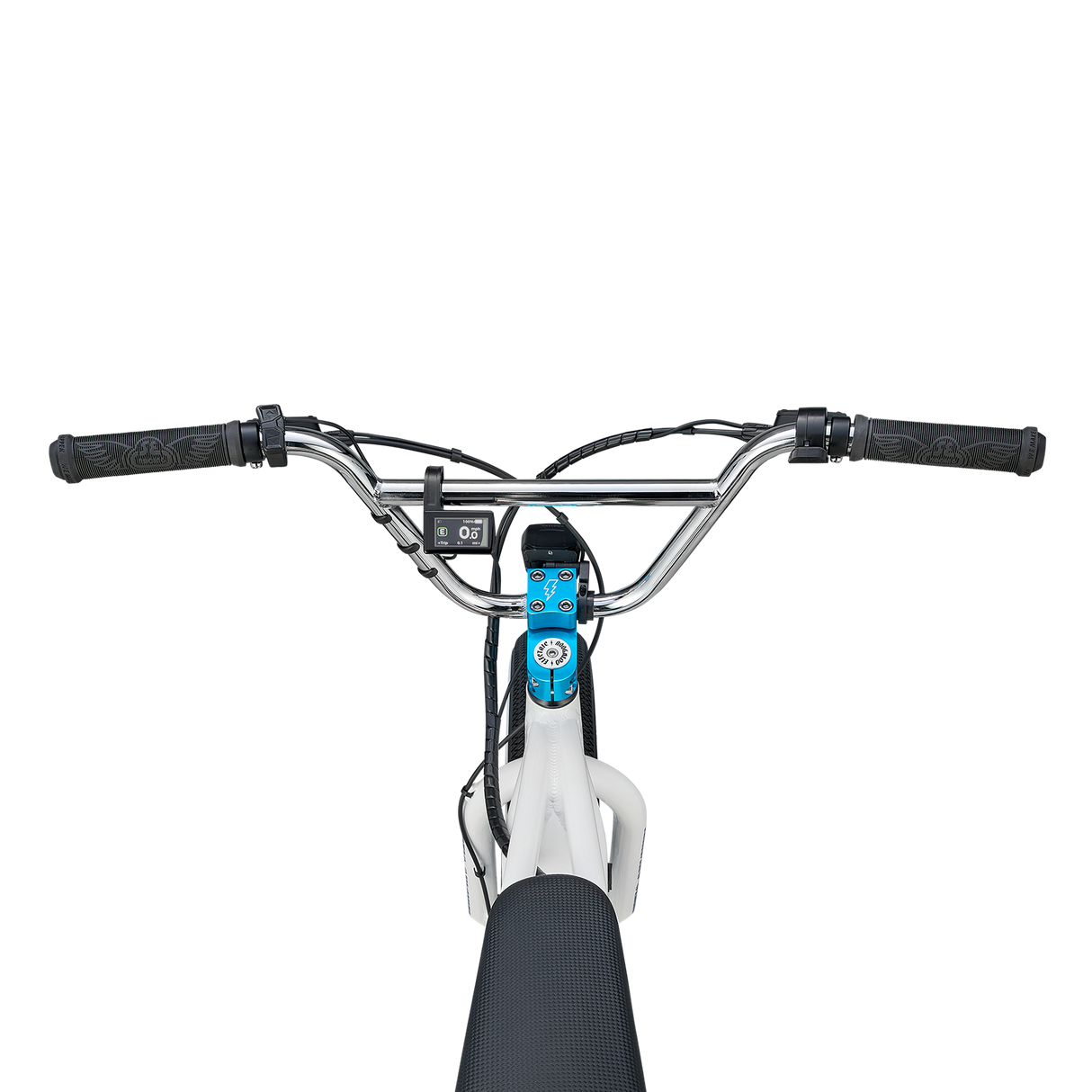

| Handlebar | Power Wing Bar, 28.5" x 8.25", 12° Backsweep, 2° Upsweep |
| Stem | SE Retro Alloy Top-Load, 55mm Reach |
| Grips | SE Racing Mushroom Wing Grips w/ SE Rubber End Plugs |
| Seat | Elongated SE Seat w/ Grippy Cover |
| Accessories | Alloy Kickstand, Alloy Valve Caps, Water Bottle Mounts |
| Motor | Bafang H720, 750W Rear Hub Motor, 950W Peak Power, 48V, 85Nm Torque, 20mph |
| Battery | Bafang Lockable Removeable Internal, 48V, 15Ah, 720Wh, UL2271 Compliant |

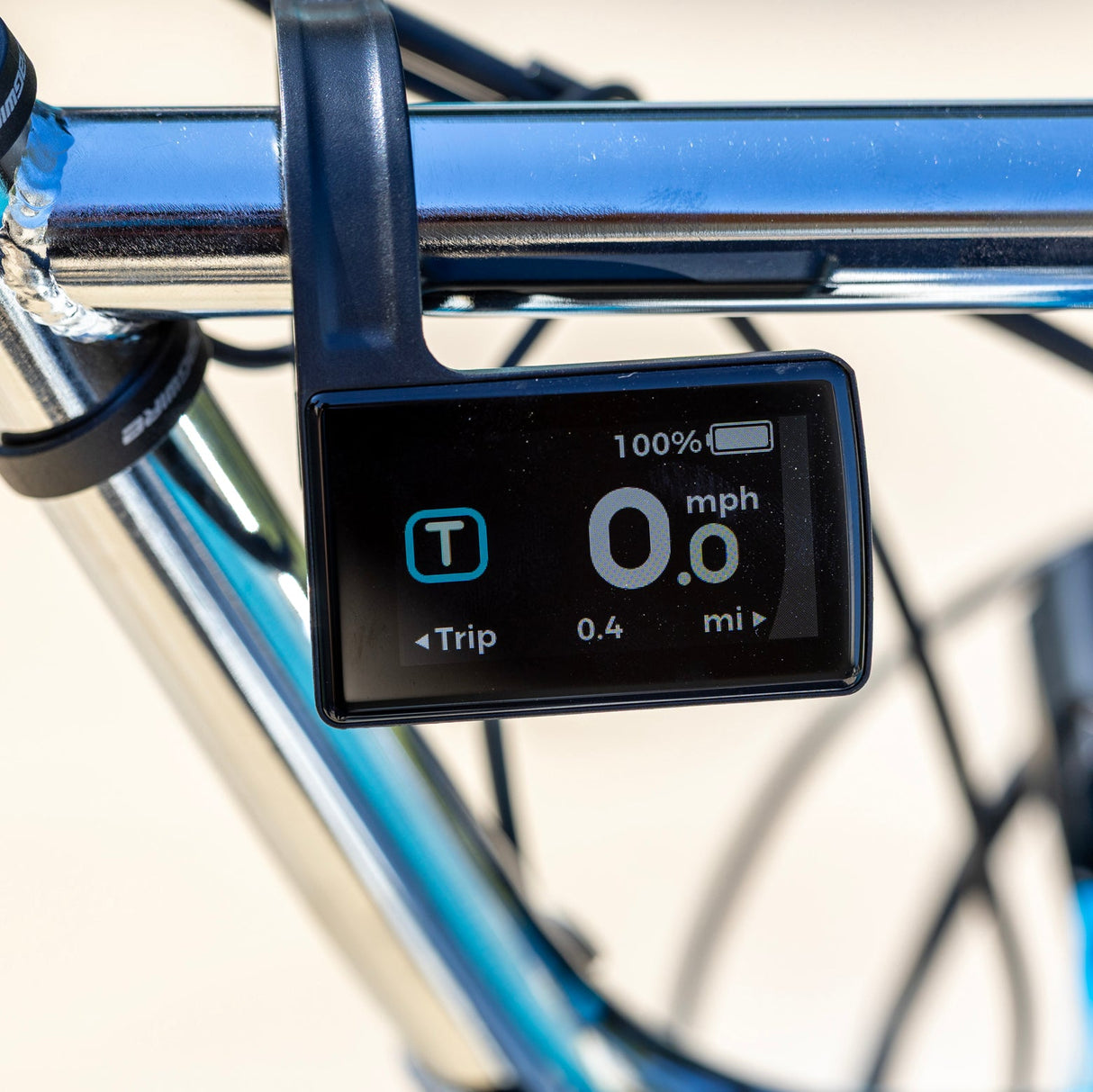

| Display | Bafang DP C245, TFT LCD, 6 Modes, Walk Assist, USB C Charging, Bluetooth 5.0 |

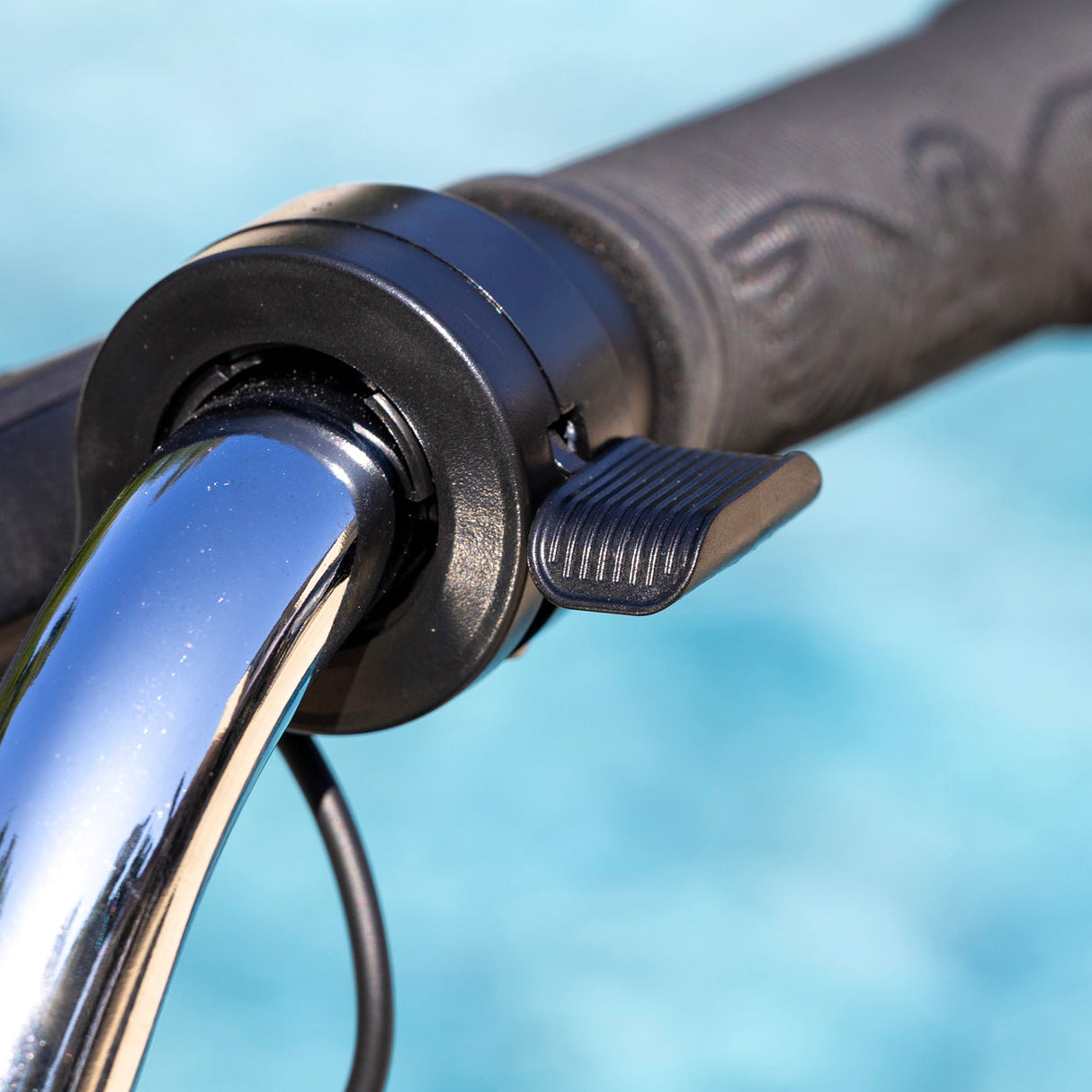

| Throttle | Bafang Thumb Throttle |
| Battery charger | Bafang, 54.6V, 2.0A, DC Output Port |
| Headlight | Lezyne StZVO E300, LED, 300 Lumens, 100 Lux, 6-12V, Water Resistant |

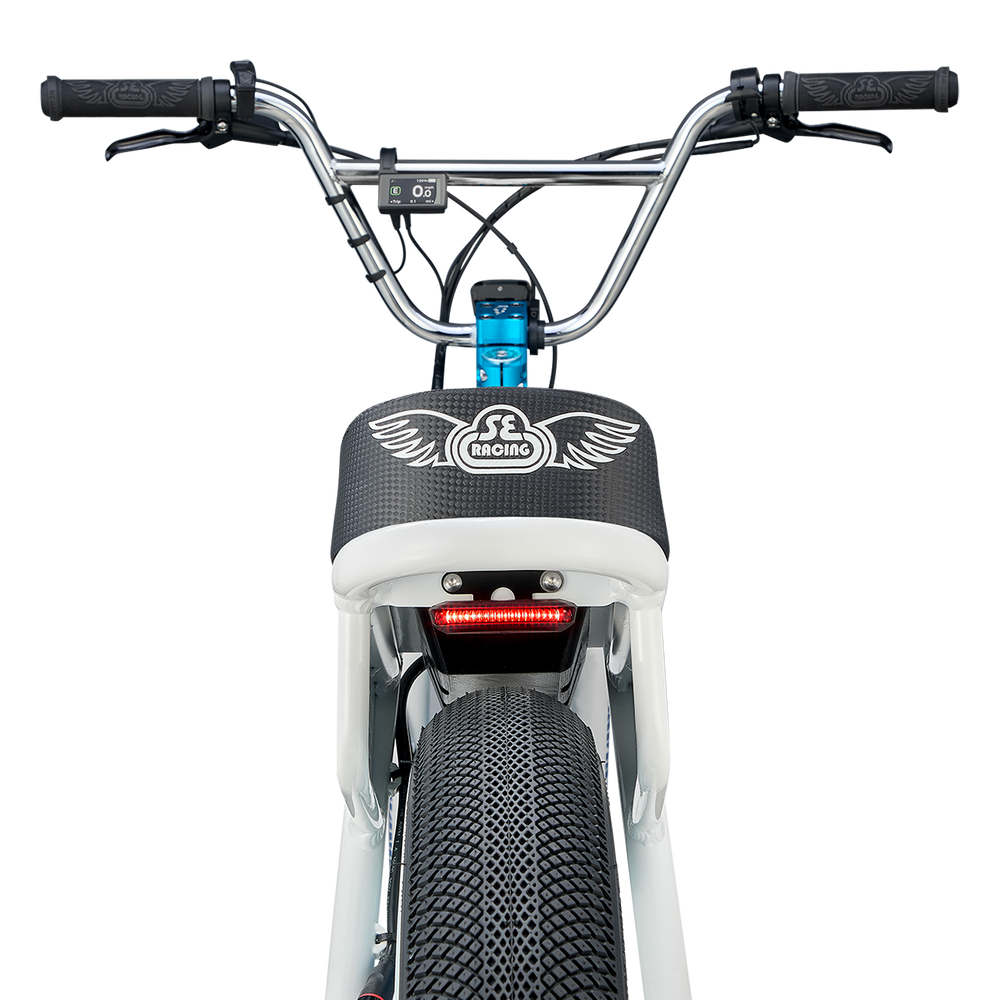

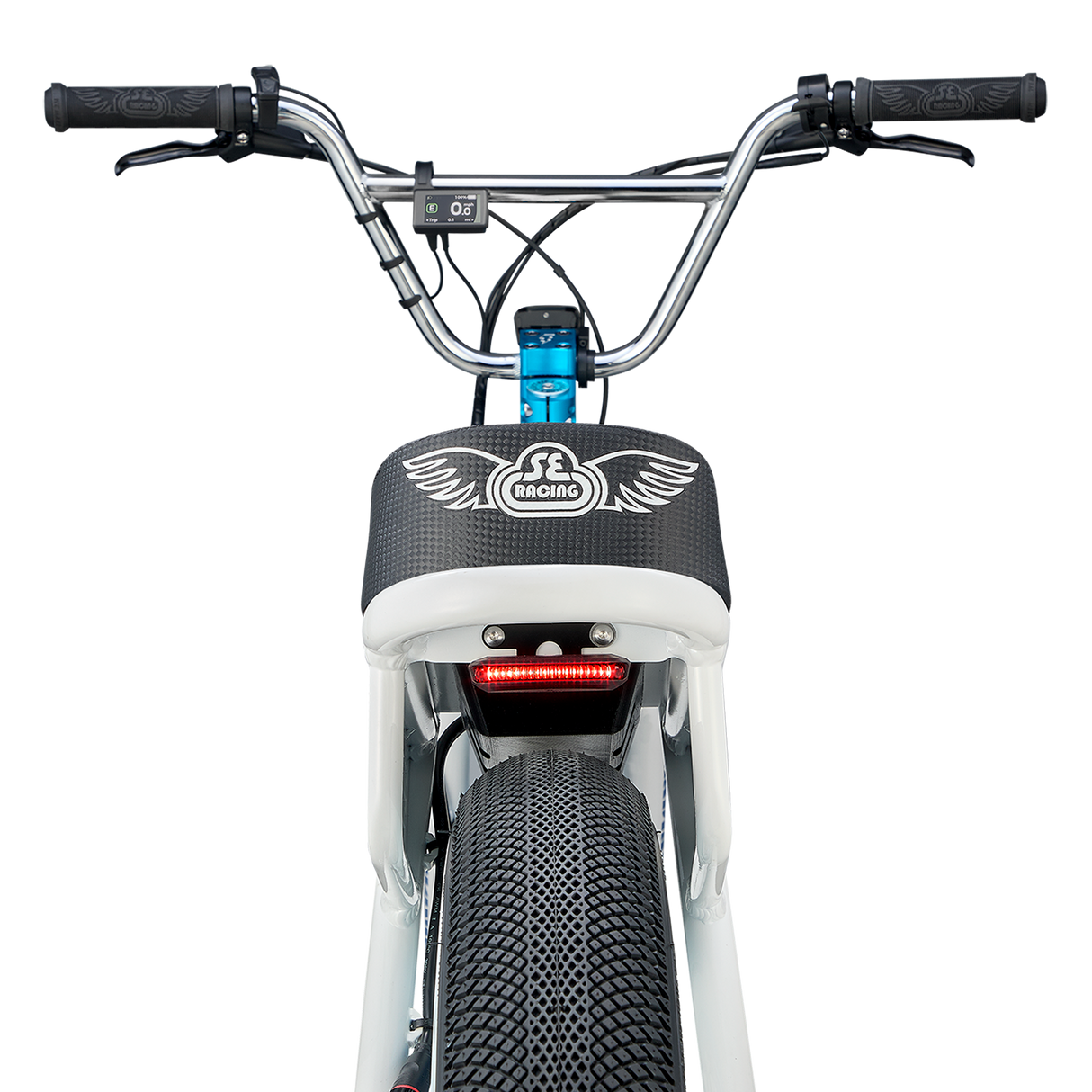

| Rear light | Trelock COB Line LS 65x, Start Up Sequence, 600 Meter Visibility, Brake Light Function |
| Range | Up to 45 miles |
| Charge time | 4 hours |
| Maximum permissible weight | 300 lbs Including Rider, Bicycle, and Extra Baggage |
| Certifications / use condition | Class 2 E-Bike, Use Condition 3, Full Electrical System UL2849 Compliant |
| Weight | 68 lbs / 30.84 kgs |
| Wheel size | 24" |
Parts are subject to change without notice. Chat with us if you have any questions.

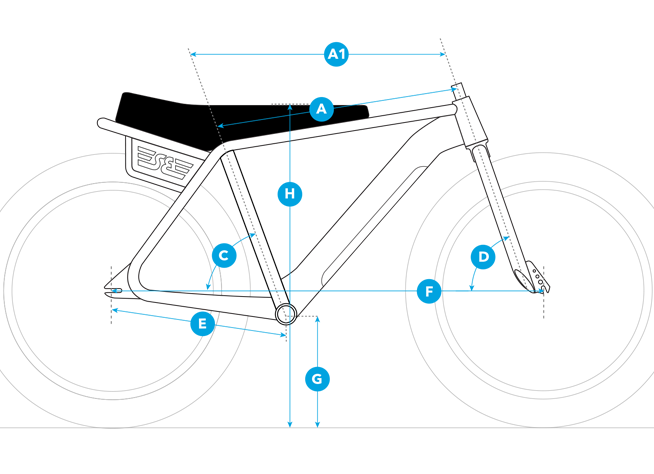

Geometry
Geometry
All measurements provided in inches unless otherwise noted.
| ATop Tube, Actual (inches) | 23.7" |
| A1Top Tube, Effective (inches) | 24.7" |
| BSeat Tube, Center To Top (inches) | 17.9" |
| CSeat Tube Angle (degrees) | 71° |
| DHead Tube Angle (degrees) | 70° |
| EChainstay Length (inches) | 17.1" |
| FWheelbase (inches) | 43.2" |
| GBottom Bracket Height (inches) | 11" |
| HStandover (inches) | 31.7" |
| Stem (mm) | 55mm |
| Handlebar Width (inches) | 28.5" |
| Crank (mm) | 165mm |
| Wheel Size (inches) | 24" |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
