Fargo Steel Gravel Road Frameset
Bike Key Features
-
On-Bike Storage
Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
-

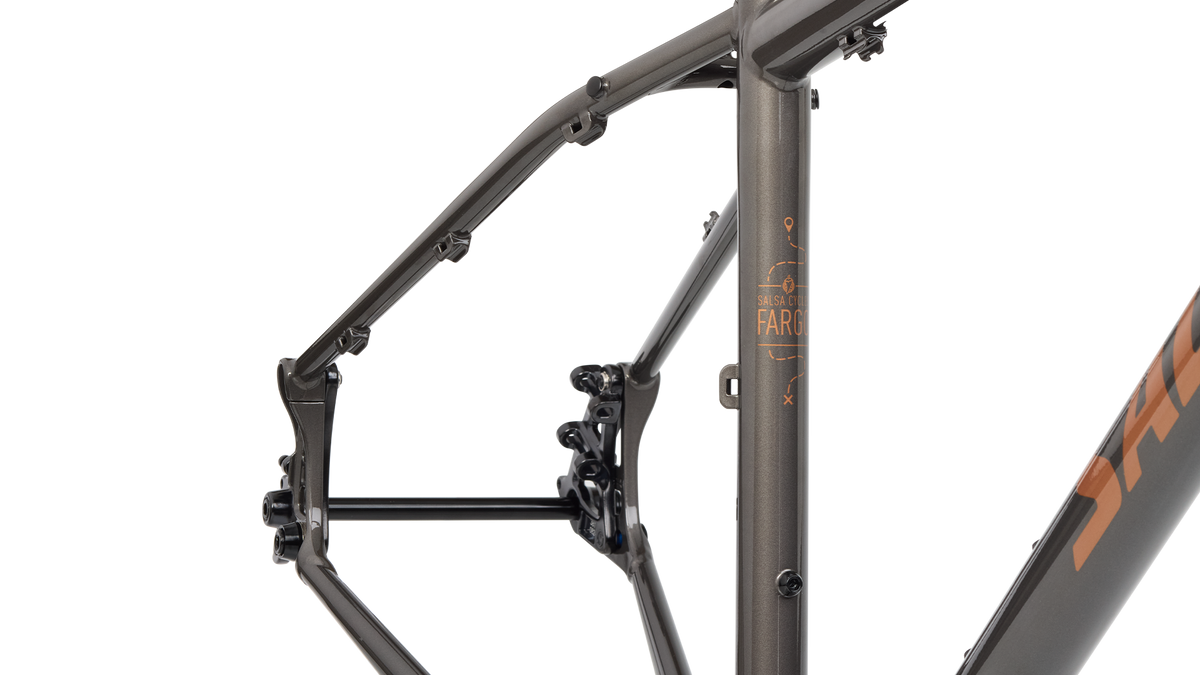

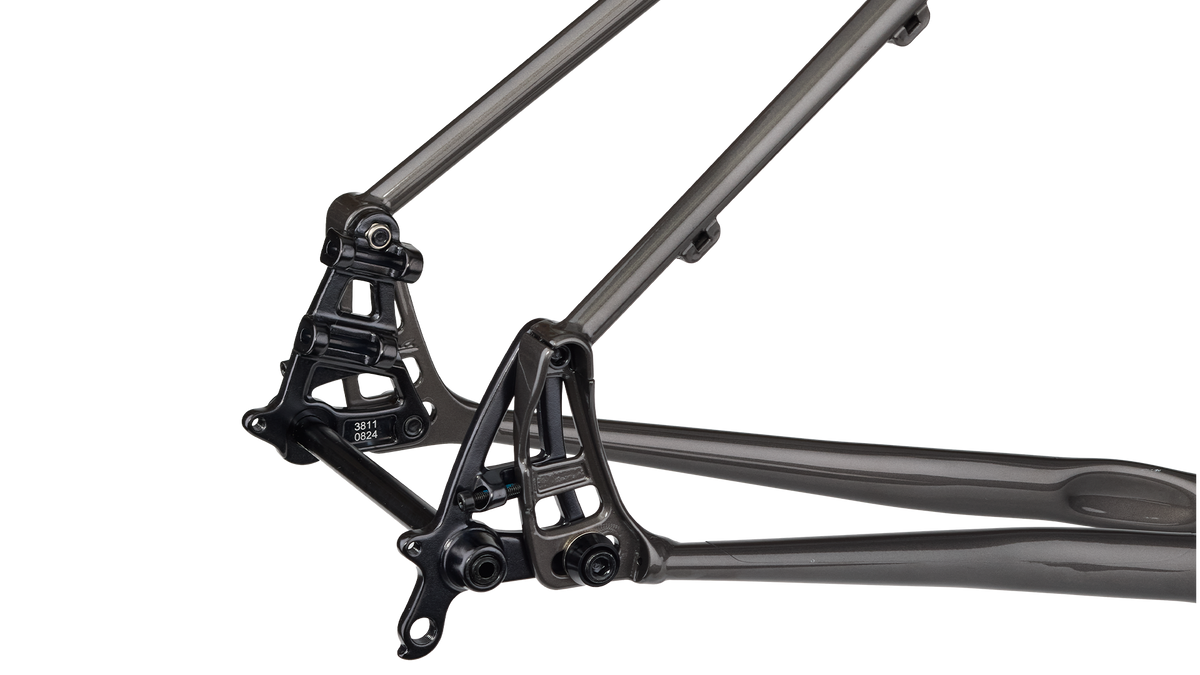

Alternator Dropouts
Adjusts chainstay length to modify ride traits and tire fit (with adjustable swing plates) Tensions chain for single-speed use (with adjustable swing plates) Gives riders upgrade options
Overview
Overview

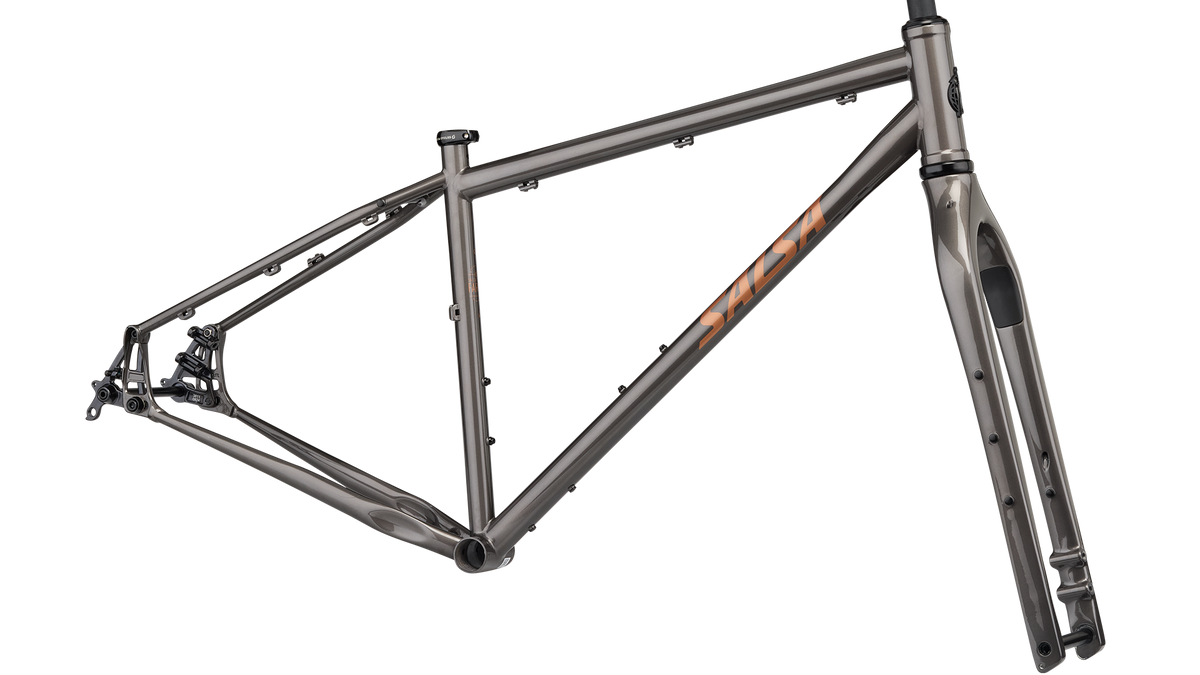

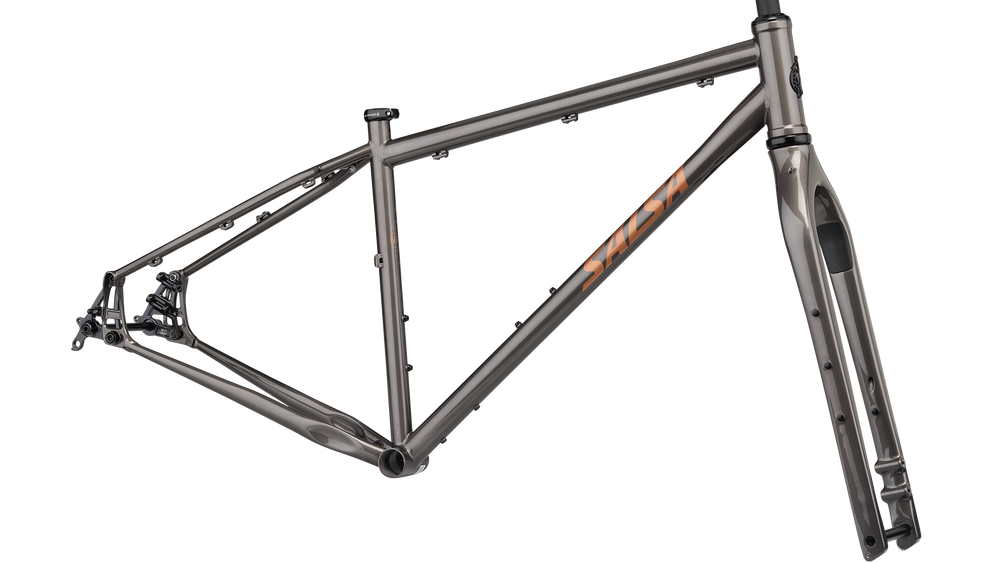

Let your imagination roam wild with the Fargo Steel Frameset. Fargo’s triple-butted steel tubing is supportive and comfortable, yet durable enough to ride singletrack in Montana or strap to a bus in Argentina. The Cutthroat Carbon Deluxe fork offers compliance, cargo capacity, and abrasion-resistant plates to reduce wear and tear. Alternator 1.0 Flat Mount dropouts open up more build options than ever before. Fargo’s smooth ride and endless adaptability make this steel bikepacking frame one of the finest options out there. Build it up and wander.
Technical Specifications
Technical Specifications
| Frame | Fargo Triple Butted CroMoly |
| Color | Black |
| Fork | Cutthroat Carbon Deluxe |
| Headset | FSA Orbit ITA |
| Front hub | Salsa Deadbolt UL thru-axle, 15 x 135L, TP=1.5, TL=12 |
| Rear hub | Salsa Deadbolt UL thru-axle, 12 x 180L, TP=1.5, TL=20 |
| Frame | 7.69 lbs (includes fork, headset, front/rear thru axles, seat collar, alternator plates) |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted; head tube angles are in degrees. Measurements based on: A Salsa Cutthroat Carbon Deluxe 480mm A-to-C x 51 mm offset fork which is equivalent to an average 100mm fork at 20% sag Measurements listed are based on a 29 x 2.4" tire measuring 746 mm in diameter. Standover (P) for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center.
| Frame size | X-Small | Small | Medium | Large | X-Large |
| A. Effective Top Tube (mm) | 520.0 mm | 540.0 mm | 565.0 mm | 590.0 mm | 620.0 mm |
| B. Stand Over (mm) | 690.0 mm | 732.0 mm | 778.0 mm | 821.0 mm | 859.0 mm |
| C. Reach (mm) | 350.0 mm | 364.0 mm | 368.0 mm | 385.0 mm | 409.0 mm |
| D. Stack (mm) | 594.0 mm | 615.0 mm | 643.0 mm | 671.0 mm | 690.0 mm |
| E. Total Seat Tube Length (mm) | 355.6 mm | 406.4 mm | 457.2 mm | 508.0 mm | 558.8 mm |
| F. Headtube Length (mm) | 90.0 mm | 110.0 mm | 140.0 mm | 170.0 mm | 190.0 mm |
| G. Headtube Angle (degrees) | 68.5 | 69.0 | 69.0 | 69.0 | 69.0 |
| H. Seat Tube Angle (degrees) | 74.0 | 74.0 | 73.0 | 73.0 | 73.0 |
| I. BB Drop (mm) | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm |
| K. Chainstay Length (mm) | 445.0 mm - 462.0 mm | 445.0 mm - 462.0 mm | 445.0 mm - 462.0 mm | 445.0 mm - 462.0 mm | 445.0 mm - 462.0 mm |
| L. Fork Length Axle to Crown (mm) | 480.0 mm | 480.0 mm | 480.0 mm | 480.0 mm | 480.0 mm |
| M. Fork Offset (mm) | 51.0 mm | 51.0 mm | 51.0 mm | 51.0 mm | 51.0 mm |
| N. Wheelbase (mm) | 1050.0 mm - 1067.0 mm | 1067.0 mm - 1084.0 mm | 1083.0 mm - 1100.0 mm | 1110.0 mm - 1127.0 mm | 1141.0 mm - 1158.0 mm |
| Recommended Rider Height (cm) | 150.0 cm - 160.0 cm | 160.0 cm - 175.0 cm | 173.0 cm - 183.0 cm | 180.0 cm - 191.0 cm | 188.0 cm |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
