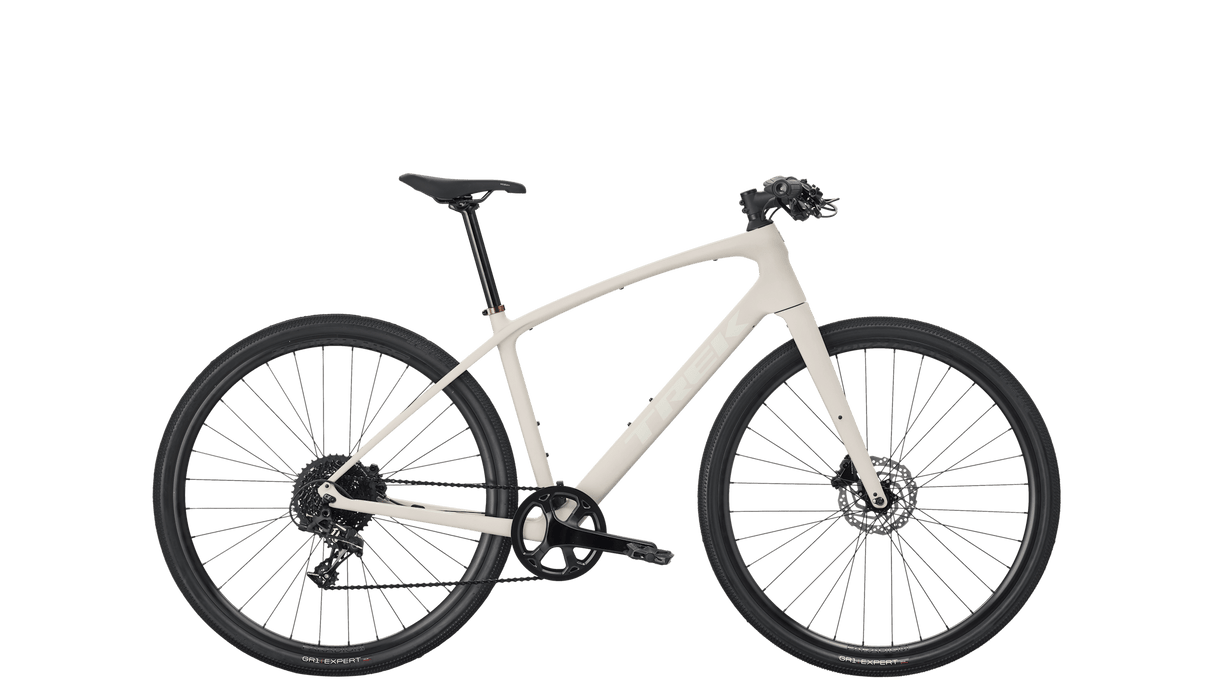

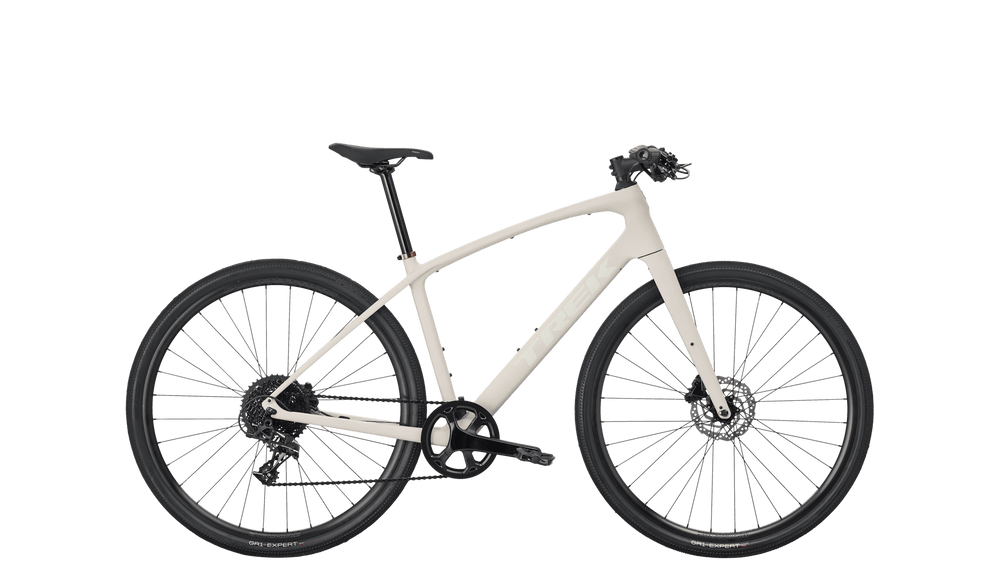

FX Sport SL 5 Hybrid Bike
-

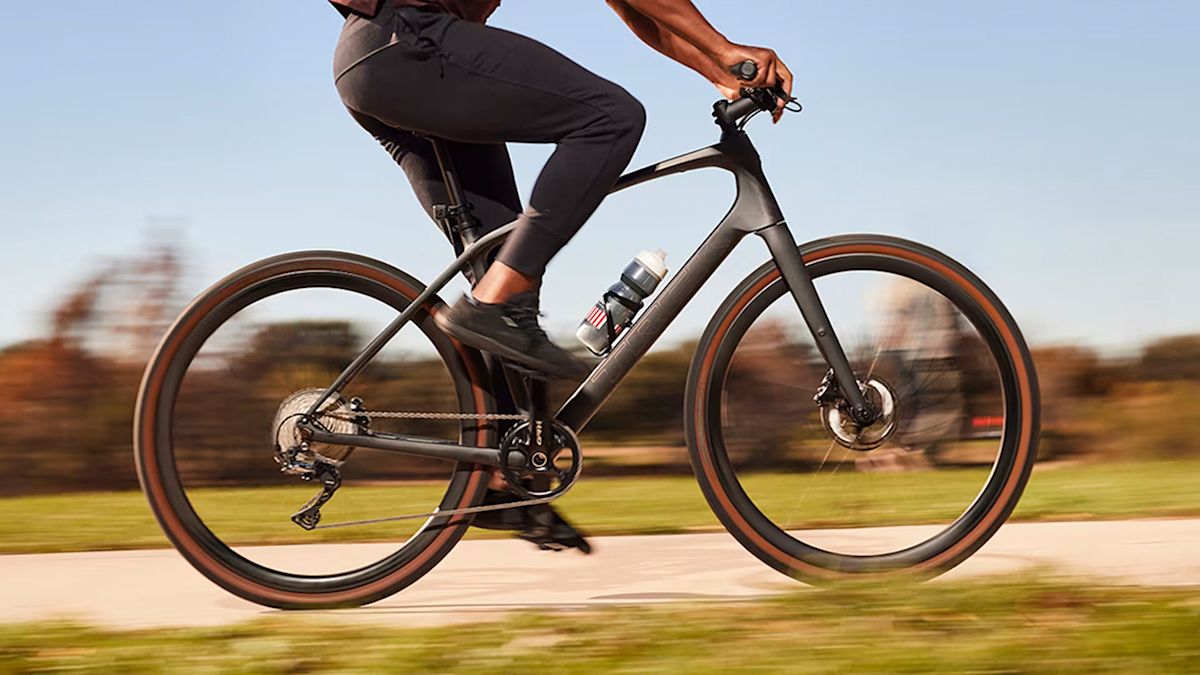

Dialed-in to go all day
A slightly shorter reach and taller stack put you in a more upright, balanced position for smooth power and all-day rideability.
-

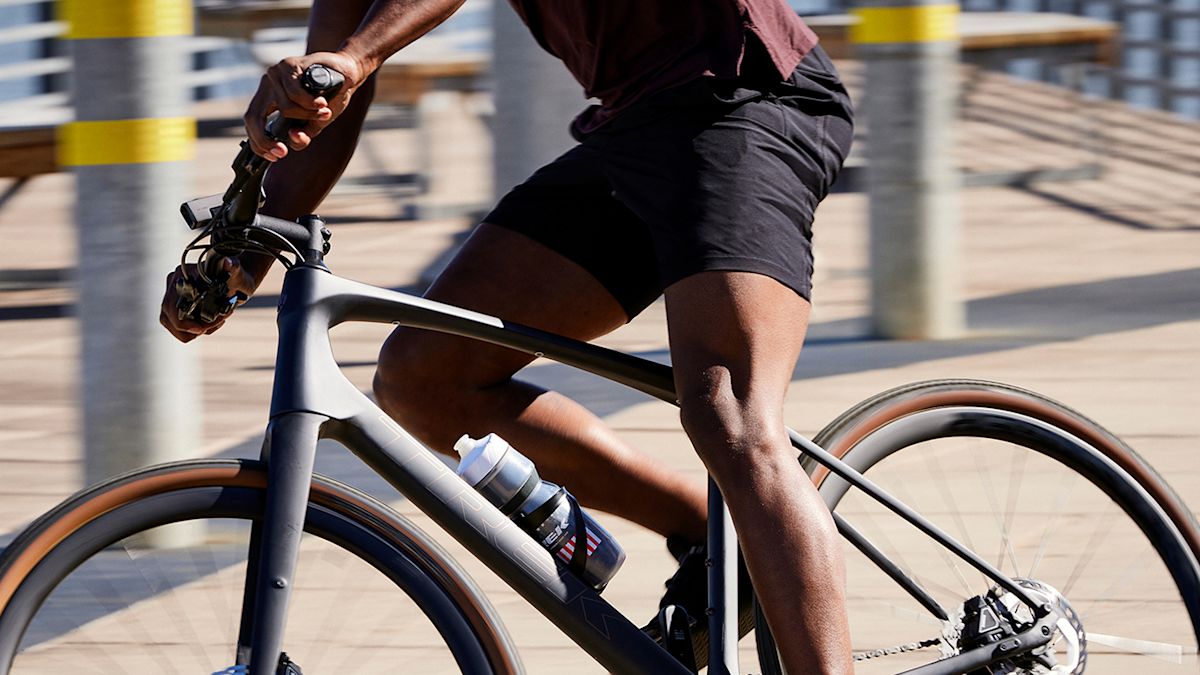

Light on weight. Big on performance.
Designed with 400 Series OCLV, the lightweight carbon frame keeps things fast and responsive, so you can accelerate quicker and handle with confidence.
-

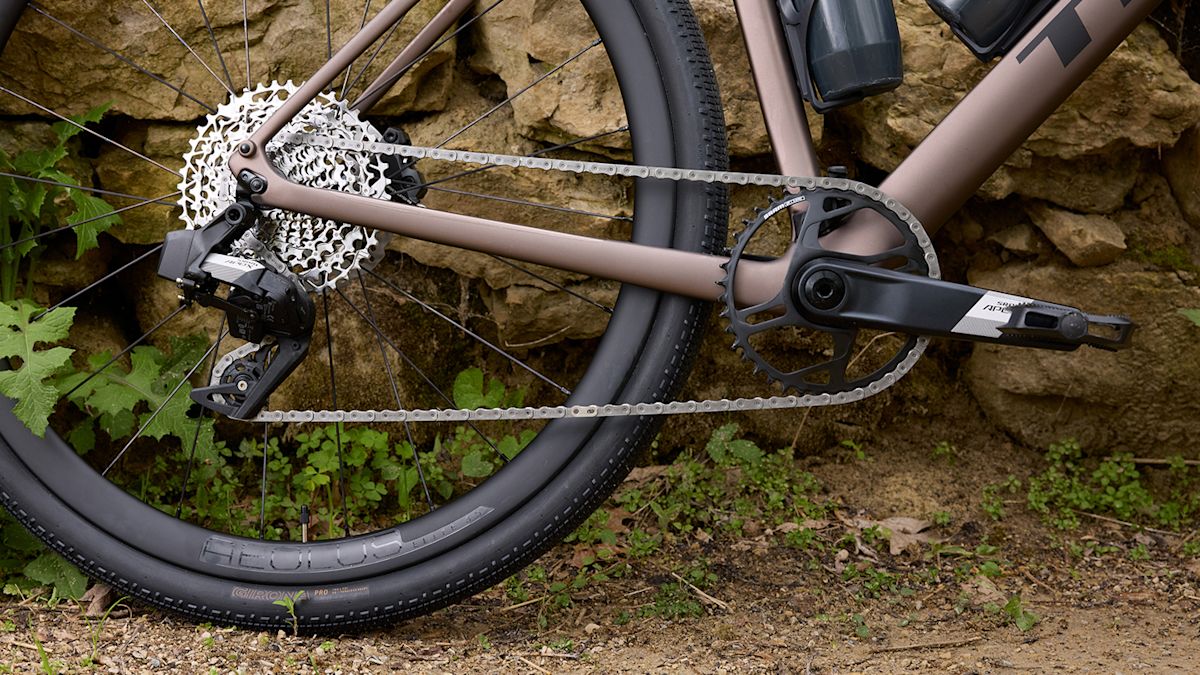

1x drivetrain
A 1x drivetrain means more versatility, simpler shifting and less things to go wrong. You still have a wide range of gears, but with lighter and more intuitive shifting. Everything you need and nothing more.
-

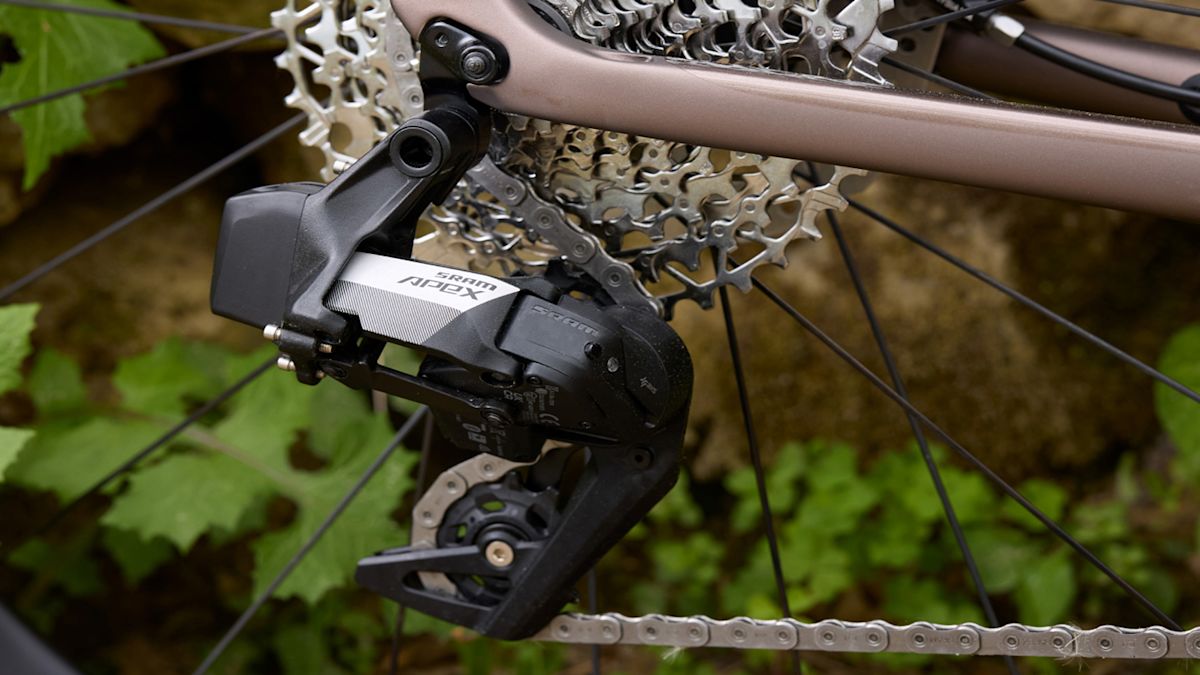

Fast, smooth, reliable
With SRAM Apex, you get precise shifting and confident braking for a ride that feels quick, fun, and in control.
-

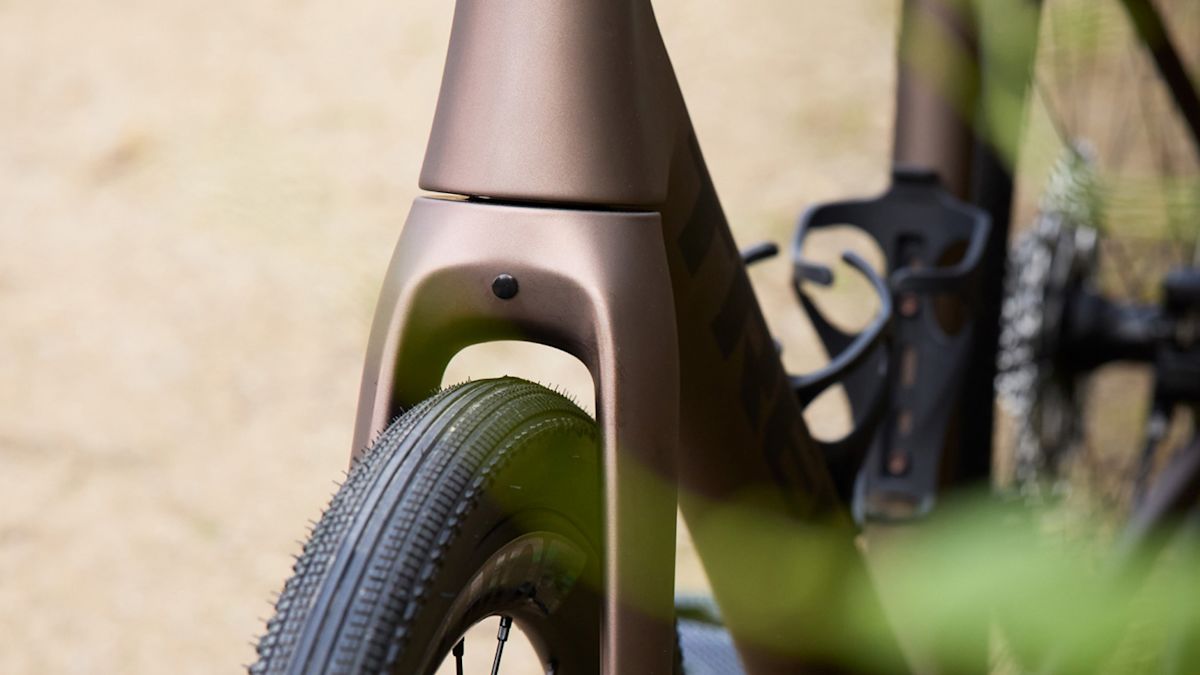

Ready for any path
Wide gravel tires keep you rolling fast with added traction and control, while increased clearance lets you take on rougher terrain with ease.
-

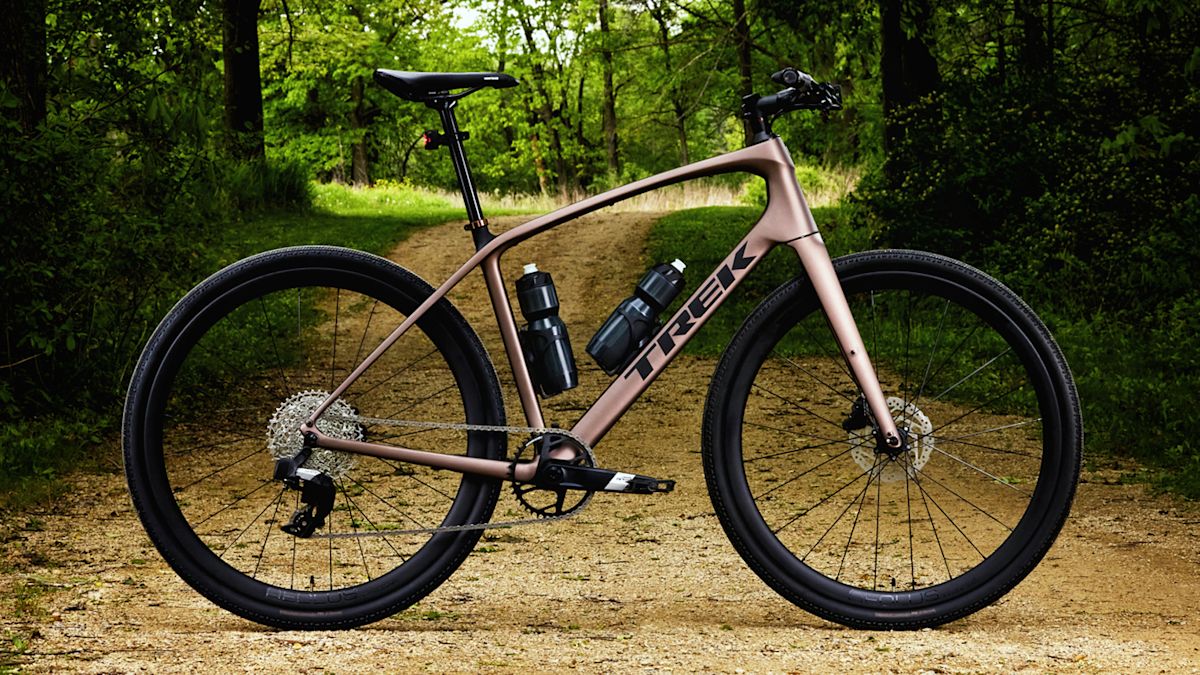

Pack it up, pack it in
Mounts for a top tube bag, rack, fenders and water bottles let you carry everything you need for day-long adventures, fast commutes, and anything in between.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | 400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 135x5mm ThruSkew |
| Fork | Carbon, hidden fender mounts, flat mount disc, 5x100mm thru-skew |
| Weight | M - 10.60 kg / 23.37 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Shifter | SRAM Apex, 11 speed |
| Rear derailleur | SRAM Apex 1, long cage, 42T max cog |
| *crank | Size: XS, S Prowheel alloy, 42T narrow-wide ring, 170mm lengthSize: M, L, XL Prowheel alloy, 42T narrow-wide ring, 175mm length |
| Cassette | microSHIFT XLE, 11-42, 11 speed |
| Chain | KMC X11 |
| Pedal | Bontrager City pedals |
| Max chainring size | 1x: 44T, 2x: 46/32 |
| Hub front | Formula CL-51 alloy, 100x5mm |
| Skewer front | 135x5mm bolt-on |
| Hub rear | Formula CL-52 alloy, 135x5mm |
| Skewer rear | 169x5mm bolt-on |
| Rim | Bontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, presta valve |
| Spokes | 14g stainless steel, black |
| Tire | Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c |
| Max tire size | 700x42mm |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
| *handlebar | Size: XS, S Bontrager alloy, 31.8mm, 15mm rise, 600mm widthSize: M, L, XL Bontrager alloy, 31.8mm, 15mm rise, 660mm width |
| Grips | Trek Ergonomic Pro, lock-on |
| *stem | Size: XS Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm lengthSize: S, M Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 100mm lengthSize: L, XL Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length |
| Brake | Shimano hydraulic disc, MT201 lever, UR300 caliper |
| Brake rotor | Shimano RT10, centerlock, 160mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in cm unless otherwise noted.
| Frame size letter | XS | S | M | L | XL |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 35.6 | 40.6 | 45.7 | 50.8 | 55.9 |
| B — Seat tube angle (degrees) | 75.0° | 74.5° | 74.0° | 73.5° | 72.5° |
| C — Head tube length | 11.5 | 14.0 | 16.5 | 19.0 | 21.5 |
| D — Head angle (degrees) | 70.0° | 70.5° | 71.0° | 71.5° | 72.5° |
| E — Effective top tube | 52.8 | 54.3 | 56.3 | 58.3 | 61.3 |
| F — Bottom bracket height | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 |
| G — Bottom bracket drop | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| H — Chainstay length | 44.2 | 44.2 | 44.2 | 44.2 | 44.2 |
| I — Offset | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| J — Trail | 7.4 | 7.1 | 6.8 | 6.4 | 5.8 |
| K — Wheelbase | 104.7 | 105.4 | 106.5 | 107.5 | 108.2 |
| L — Standover | 70.8 | 75.1 | 78.7 | 81.2 | 84.8 |
| M — Frame reach | 38.3 | 38.5 | 39.3 | 40.0 | 41.0 |
| N — Frame stack | 54.3 | 56.8 | 59.4 | 62.0 | 64.8 |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
