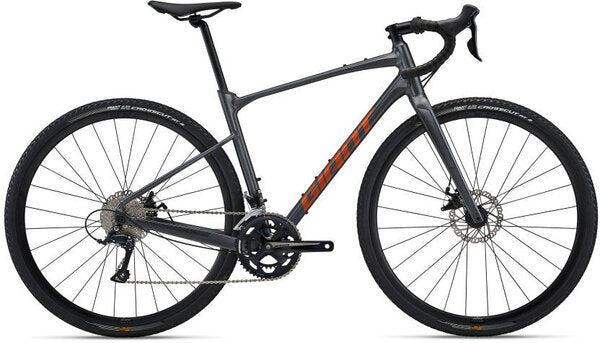

Giant Revolt 2 Gravel Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Rims | Giant S-X2 Disc wheelset |
| Hubs | Giant S-X2 Disc wheelset |
| Spokes | Giant S-X2 Disc wheelset |
| Tires | Giant CrossCut AT 2, 700x38c, tubeless |
| Crankset | FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Chainrings | cartridge |
| Shifters | Shimano Sora, 2x9 |
| Front derailleur | Shimano Sora |
| Rear derailleur | Shimano Sora, long cage |
| Cassette/freewheel | Shimano HG400, 11x34 |
| Chain | KMC X9 with Missing Link |
| Brakes | Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm |
| Brake levers | Shimano Sora |
| Handlebars | Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Tape/grips | cork tape with gel |
| Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Approach |
| Pedals | Sold Separately |
| Accessories & extras | tubeless prepared, 53mm max tire size in "long" flip chip position, 42mm max tire size in "short" flip chip position |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
| SIZE | X-Small | Small | Medium | Med/Lrg | Large | X-Large |
| FLIP CHIP POSITION | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG |
| A SEAT TUBE LENGTH (mm) (mm) | 430 | 450 | 470 | 490 | 510 | 530 |
| B SEAT TUBE ANGLE | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C TOP TUBE LENGTH (mm) (mm) | 540 | 550 | 560 | 575 | 585 | 600 |
| D HEAD TUBE LENGTH (mm) (mm) | 125 | 135 | 150 | 165 | 180 | 195 |
| E HEAD TUBE ANGLE | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F FORK RAKE (mm) (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G TRAIL (mm) (mm) | 78 | 82 | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
| H WHEELBASE (mm) (mm) | 1029 | 1039 | 1025 | 1035 | 1030 | 1040 | 1035 | 1045 | 1045 | 1055 | 1061 | 1071 |
| I CHAIN STAY LENGTH (mm) (mm) | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 |
| J BOTTOM BRACKET DROP (mm) (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| K STACK (mm) (mm) | 556 | 570 | 586 | 602 | 616 | 630 |
| L REACH (mm) (mm) | 381 | 381 | 387 | 391 | 397 | 407 |
| M STAND OVER HEIGHT | 717 | 724 | 734 | 741 | 752 | 759 | 769 | 776 | 786 | 793 | 801 | 810 |
| N HANDLEBAR WIDTH (mm) (mm) | 420 | 420 | 440 | 440 | 460 | 460 |
| O STEM LENGTH (mm) (mm) | 70 | 80 | 90 | 100 | 100 | 110 |
| P CRANK LENGTH (mm) (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Q WHEEL SIZE | 700x 42C | 50C | 700x 42C | 50C | 700x 42C | 50C | 700x 42C | 50C | 700x 42C | 50C | 700x 42C | 50C |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| size | Rider Height |
|---|---|
| X-Small | 155 cm to 166 cm |
| Small | 159 cm to 171 cm |
| Medium | 169 cm to 181 cm |
| Medium/Large | 174 cm to 186 cm |
| Large | 179 cm to 191 cm |
| X-Large | 189 cm to 200 cm |
Sizing to be used as a reference only. Chat with us if you have any questions.
