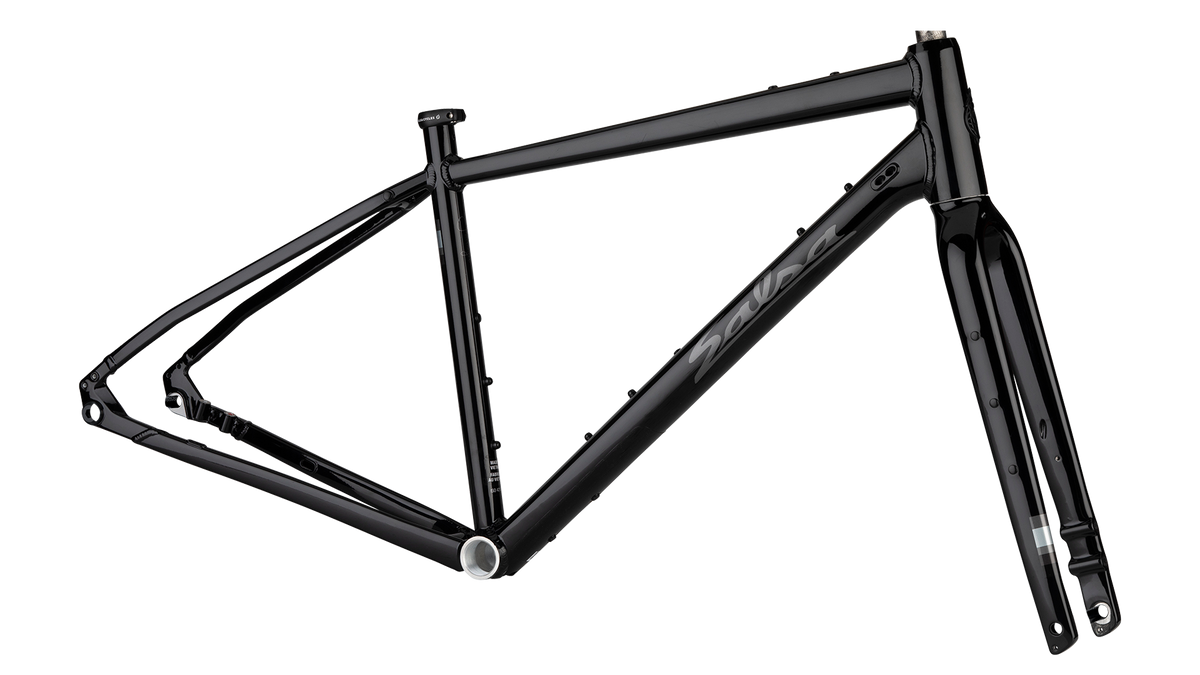

The Salsa Journeyer frameset has worlds of versatility built in. With an aluminum frame and our Waxwing carbon fork, massive tire clearance, and adaptable cargo options, you can build it into the best all-around bike ever. Journeyer’s gravel geometry keeps you comfortable and confident as you take on gravel roads, doubletrack, harsh pavement, and more.
Use the Three-Pack mounts, top tube mount, and down tube accessory mount for a svelte gravel or bikepacking setup. Add racks and fenders for a fun and functional commuter that can handle any road or bike path. The Journeyer frameset lets you choose your journey.
Technical Specifications
Technical Specifications
| Frame | Journeyer Drop-Bar Thru-Axle |
| Color | Black |
| Fork | Waxwing |
| Headset | FSA NO.42 ACB IS-2 |
| Seatpost clamp | Salsa Lip-Lock Seatpost Collar, 32.0 mm |
| Rear derailleur | SRAM UDH derailleur hanger |
| Front axle | Salsa Deadbolt UL thru-axle 12 x 120 mm, TP = 1.5, TL = 12 mm |
| Rear axle | Salsa Deadbolt UL thru-axle 12 x 169 mm, TP= 1.0, TL = 20 mm |
| Frame | 5 lb (56 cm frame w/headset, UDH dropout, and axles) |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted; head tube angles are in degrees. Measurements based on: a fork measuring 405mm with 50mm offset a 700 x 38mm tire measuring 706 mm in diameter Stand over measured vertically to top of top tube from a position 50mm forward of BB center
| Frame size | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
| A. Effective Top Tube (mm) | 493.0 mm | 510.0 mm | 530.0 mm | 550.0 mm | 570.0 mm | 600.0 mm |
| B. Stand Over (mm) | 613.5 mm | 648.5 mm | 684.5 mm | 720.5 mm | 756.5 mm | 803.5 mm |
| C. Reach (mm) | 366.0 mm | 368.0 mm | 372.0 mm | 376.0 mm | 387.0 mm | 408.0 mm |
| D. Stack (mm) | 510.0 mm | 528.0 mm | 552.0 mm | 570.0 mm | 598.0 mm | 627.0 mm |
| E. Total Seat Tube Length (mm) | 340.0 mm | 380.0 mm | 410.0 mm | 450.0 mm | 490.0 mm | 520.0 mm |
| F. Headtube Length (mm) | 90.0 mm | 105.0 mm | 130.0 mm | 150.0 mm | 180.0 mm | 210.0 mm |
| G. Headtube Angle (degrees) | 68.5 | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| H. Seat Tube Angle (degrees) | 76.0 | 75.0 | 74.0 | 73.0 | 73.0 | 73.0 |
| I. BB Drop (mm) | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm |
| K. Chainstay Length (mm) | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm |
| L. Fork Length Axle to Crown (mm) | 402.0 mm | 402.0 mm | 402.0 mm | 402.0 mm | 402.0 mm | 402.0 mm |
| M. Fork Offset (mm) | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm |
| N. Wheelbase (mm) | 1027.0 mm | 1028.0 mm | 1040.0 mm | 1050.0 mm | 1072.0 mm | 1104.0 mm |
| Recommended Rider Height (cm) | 142.0 cm - 152.0 cm | 150.0 cm - 160.0 cm | 157.0 cm - 170.0 cm | 165.0 cm - 178.0 cm | 173.0 cm - 185.0 cm | 183.0 cm - 196.0 cm |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
