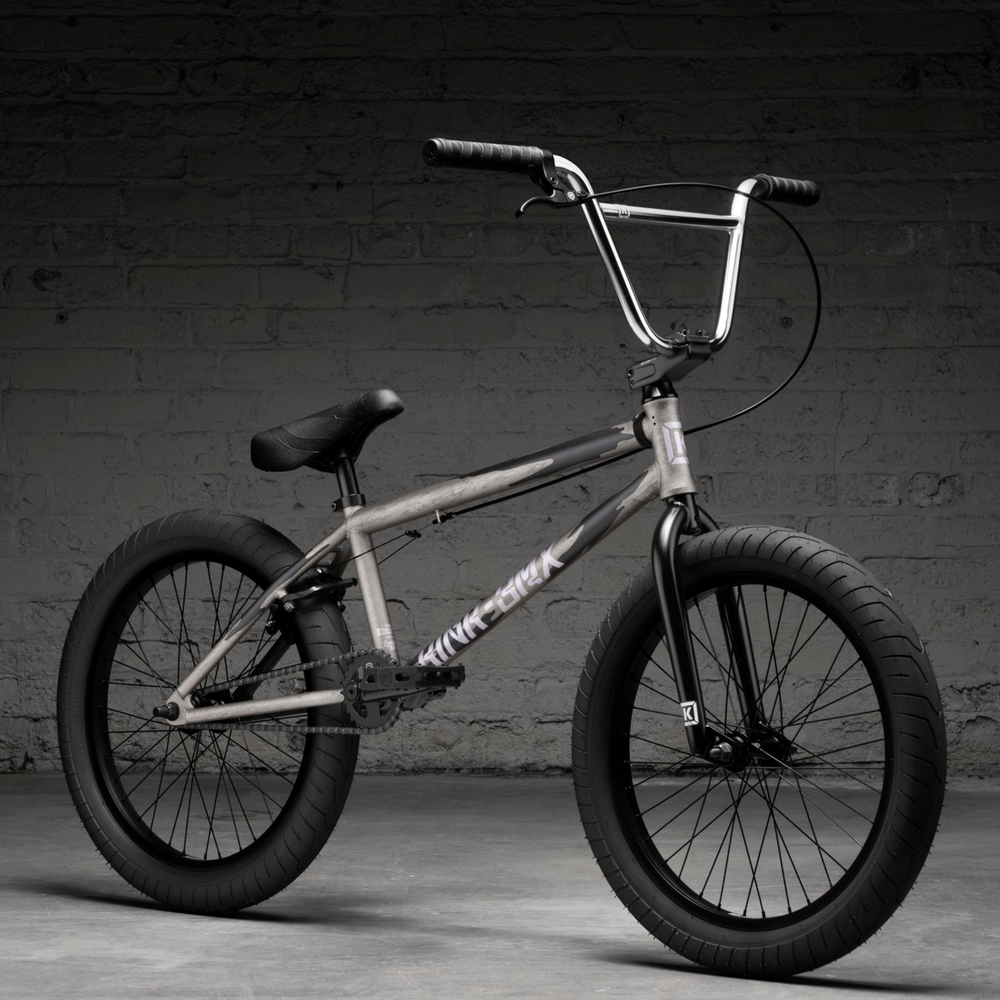

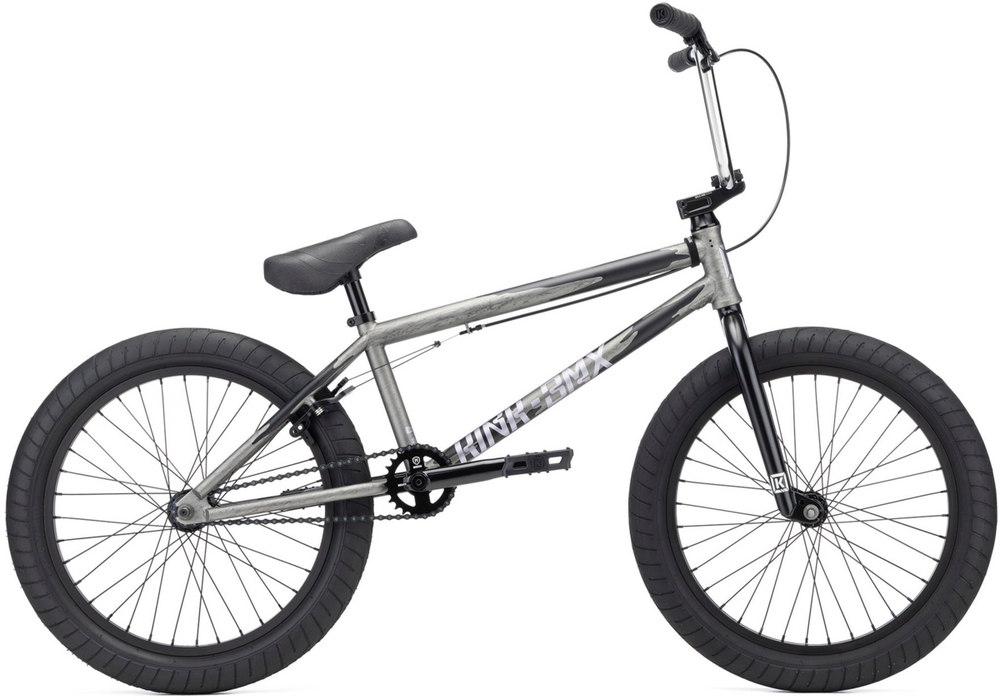

Launch LTD
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | Kink Launch 100% Hi-Ten Steel |
| Fork | Kink Stryker 4130 Chromoly Steerer Tapered Fork Legs |
| Rims | Mission X7 |
| Hubs | FRONT HUB: Mission Covert Unsealed 3/8\ Axle/REAR HUB: Mission Function Semi-Sealed Cassette 14mm |

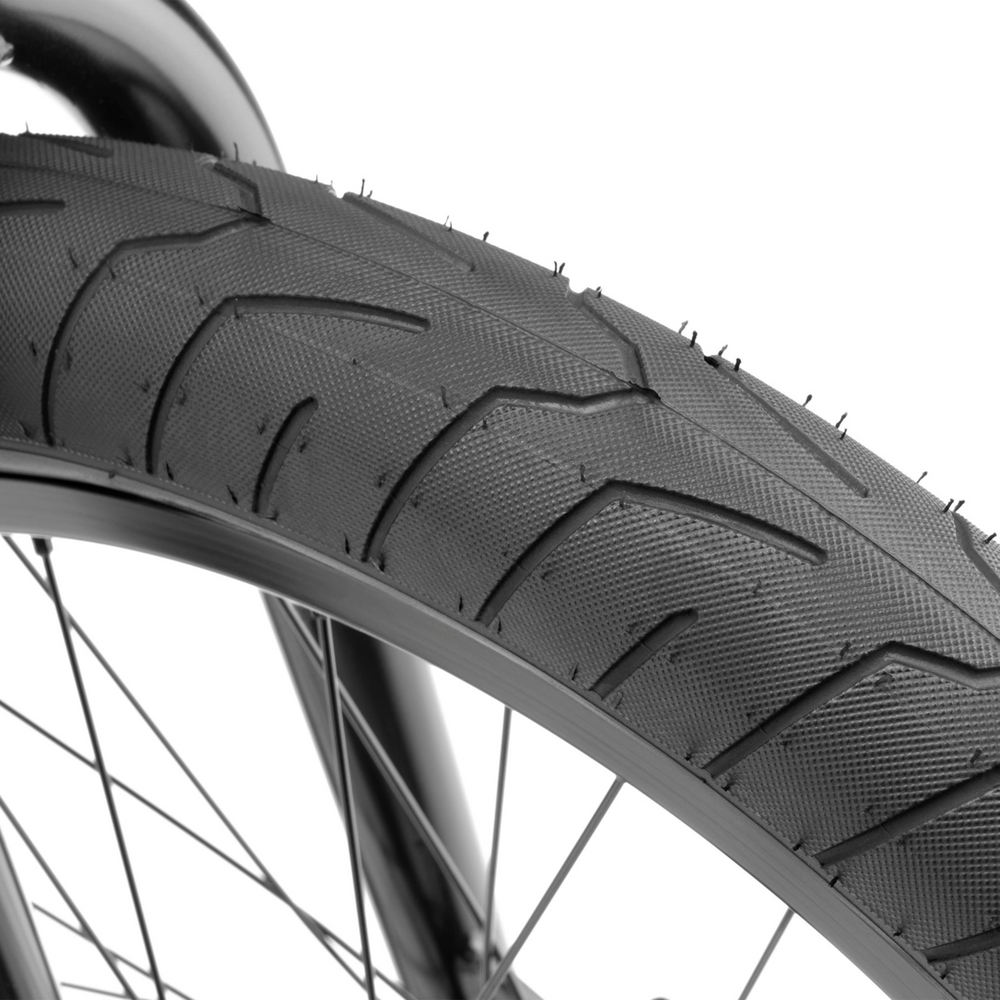

| Tires | Kink Sever 2.4\ |
| Bottom bracket | Sealed Mid 19mm |

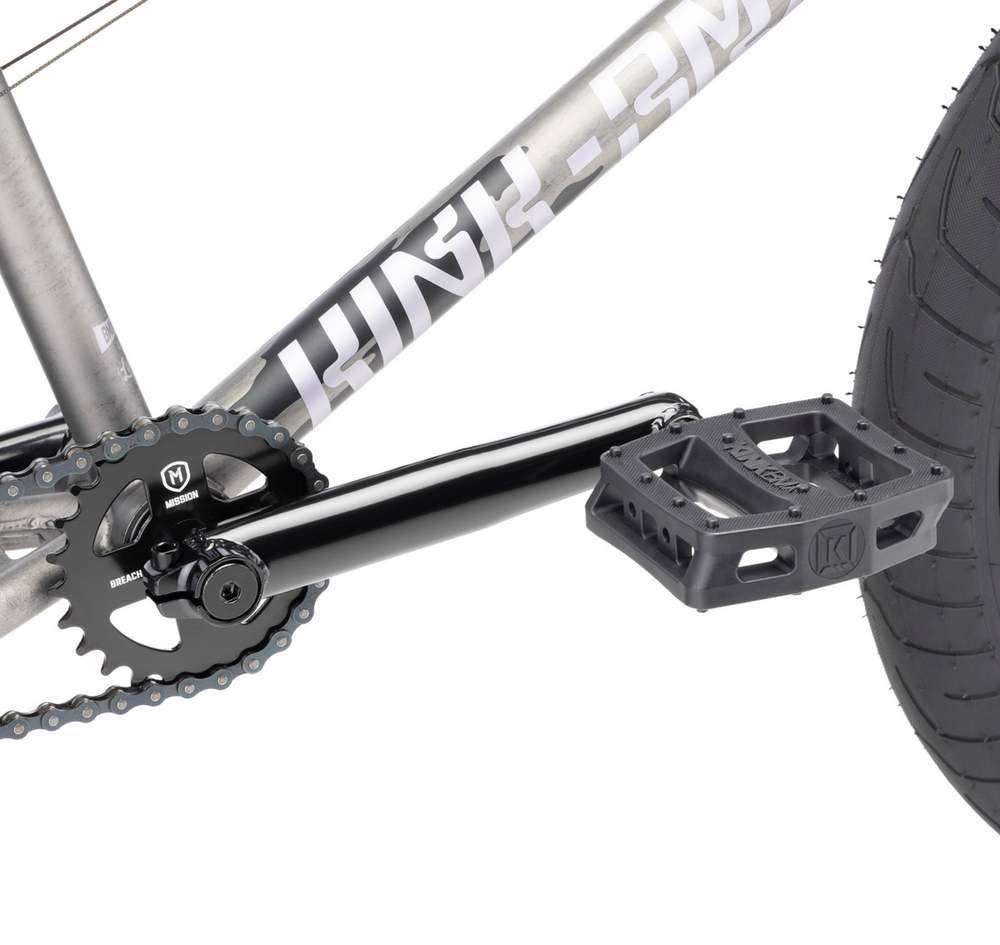

| Crankset | Mission Triumph 3pc Tubular Chromoly 170mm - 8 Spline |
| Chainrings | 9T |
| Chain | Mission 410 |
| Brakes | Mission Cease V2 |
| Brake levers | Mission Token |
| Handlebars | Kink T875 8.75\ 100% Hi-Ten Steel |

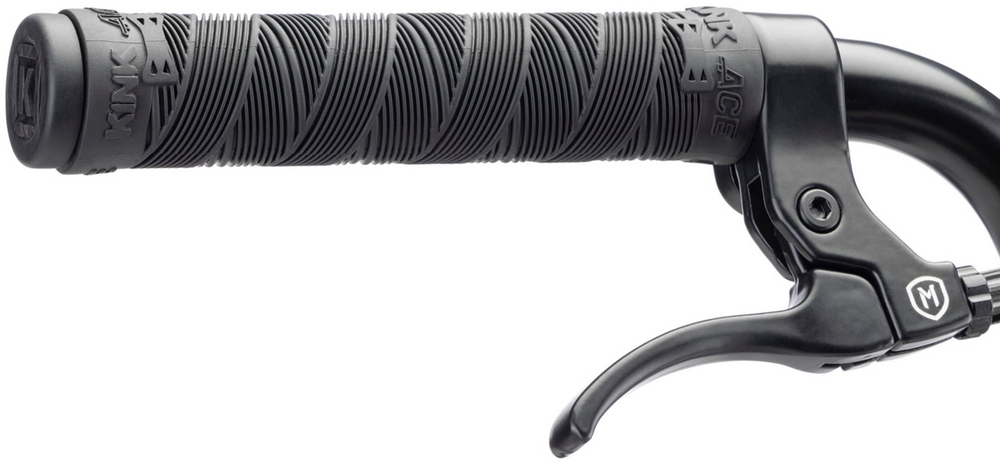

| Tape/grips | Kink Ace, Thrust Barends |

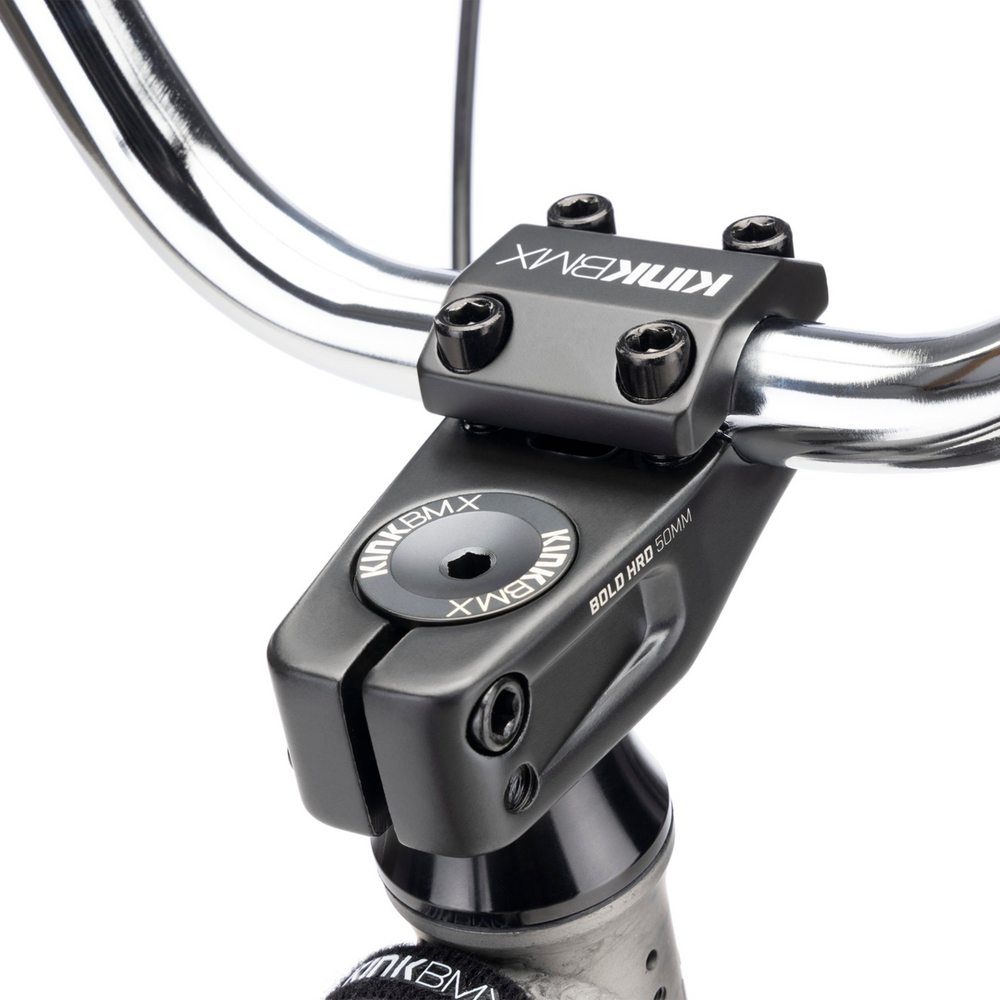

| Stem | Kink Bold HRD 50mm |
| Headset | Mission Sealed Integrated (41.8 x 45) |
| Seatpost | Mission Combo Steel Post |

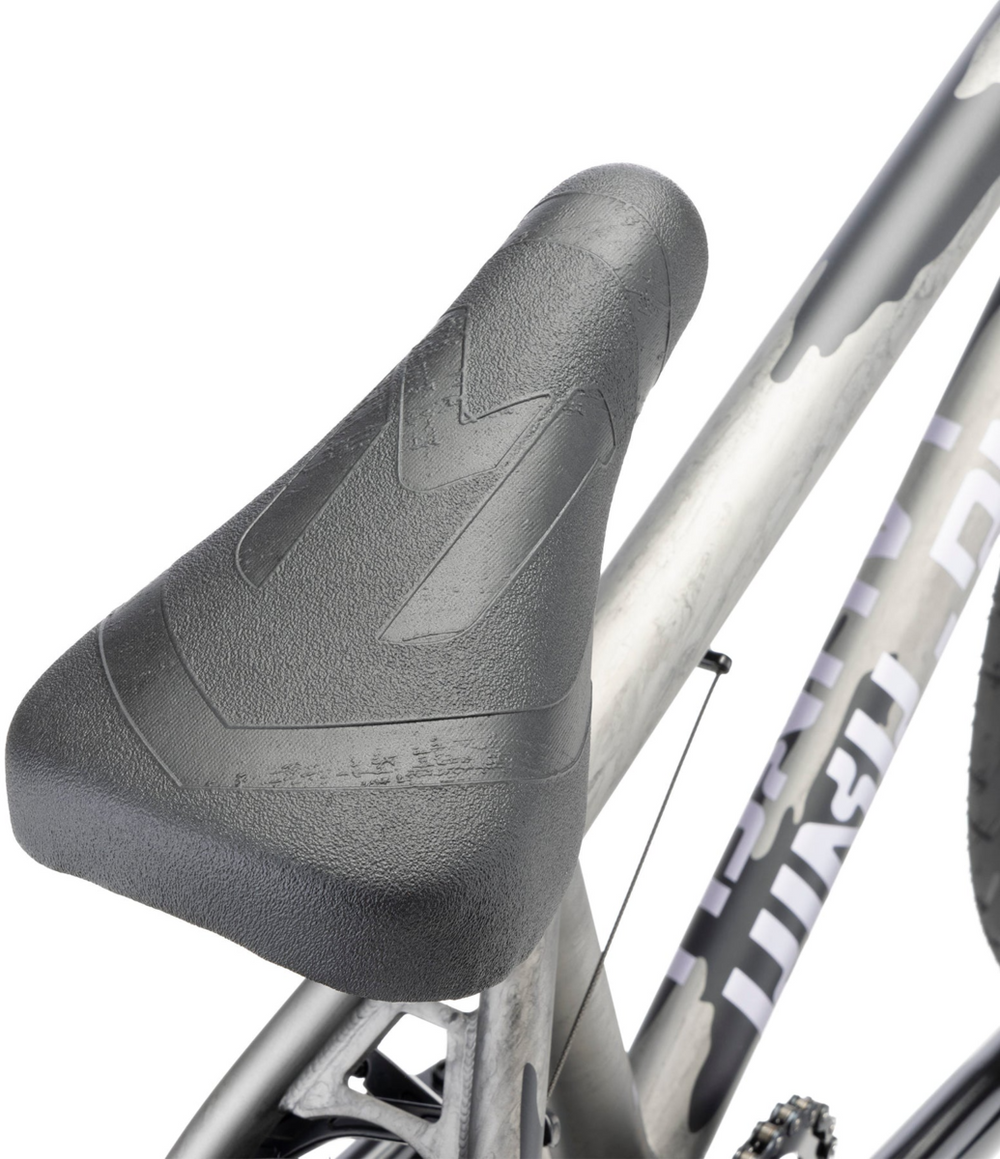

| Saddle | Mission Warsaw Combo |
| Pedals | Kink Hemlock |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
| Toptube Length | 20.25" |
| Chainstay Length | 13.25" |
| Headtube Angle | 75° |
| Seattube Angle | 71° |
| Standover Height | 8.75? |
| Bottom Bracket Height | 11.6" |
| Fork Offset | 32mm |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| Rider Height | Bike Size | Toptube Length |
| 2'4" - 3'0" (71 - 91 cm) | 12" | 12" - 12.5" |
| 2'8" - 3'6" (81 - 106 cm) | 14" | 14" - 14.5" |
| 3'2" - 4'0" (96 - 122 cm) | 16" | 16" - 16.5" |
| 4'0" - 4'10" (122 - 147 cm) | 18" | 18" - 18.5" |
| 4'10" - 5'3" (147 - 157 cm) | 20" | 19.75" - 20.25" |
| 5'3" - 5'6" (157 - 168 cm) | 20" | 20" - 20.5" |
| 5'6" - 5'9" (168 - 175 cm) | 20" | 20.25" - 20.75" |
| 5'9" - 6'0" (175 - 183 cm) | 20" | 20.5" - 21" |
| 6'0" - 6'3"+ (183 - 190 cm +) | 20" | 20.75" - 21.5" |
| 5'4" - 6'2"+ (162 - 188 cm +) | 26" | 22" - 22.5" |
Sizing to be used as a reference only. Chat with us if you have any questions.
