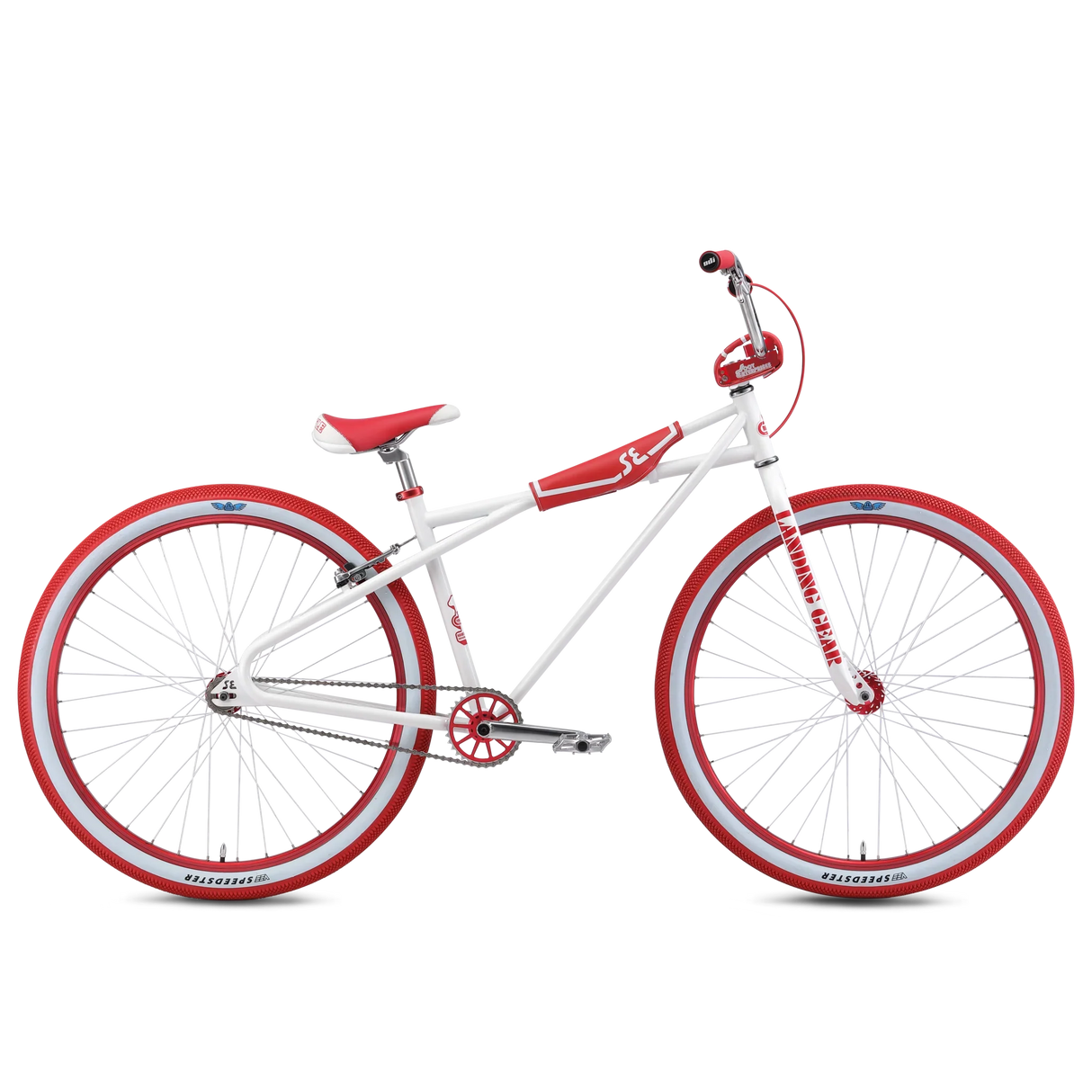

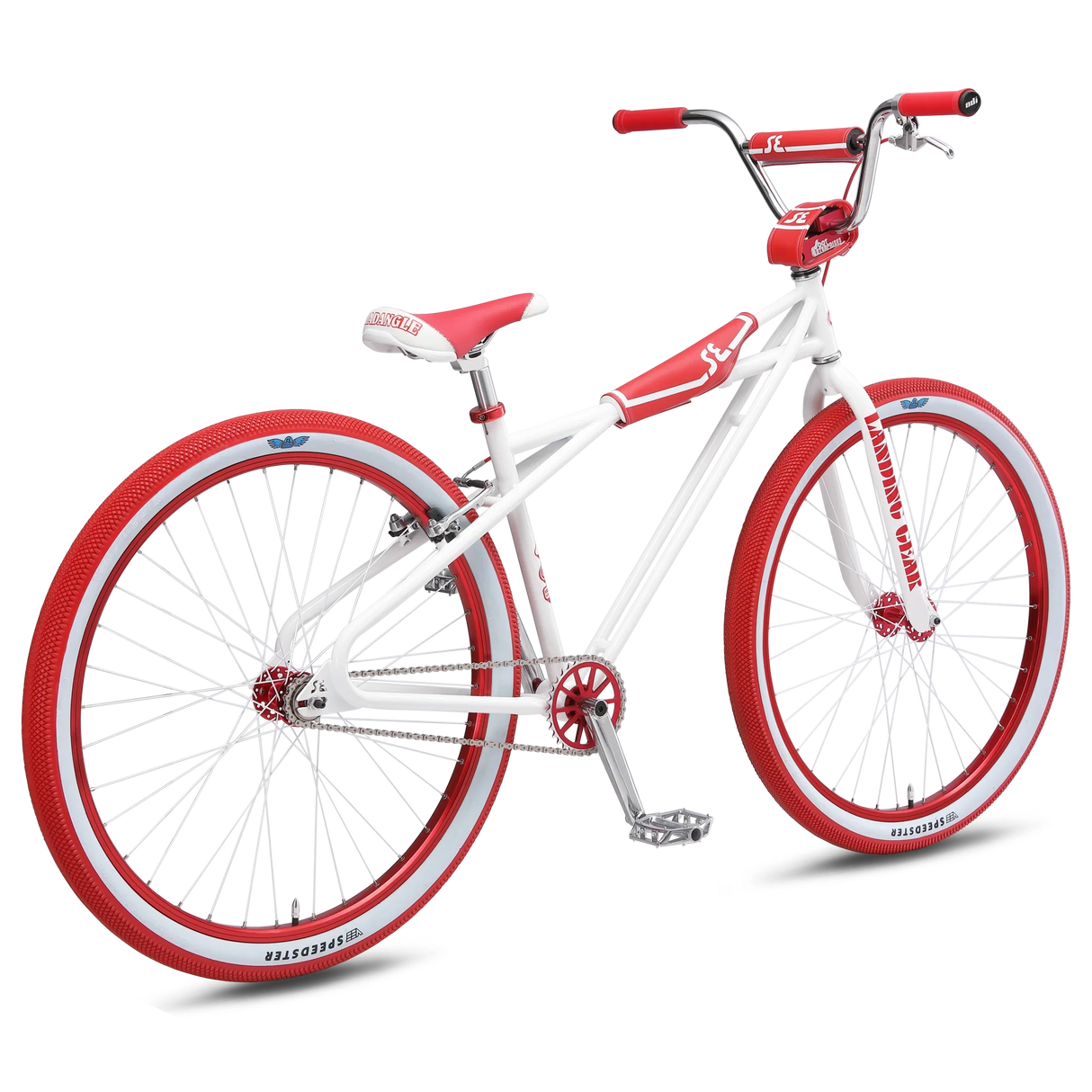

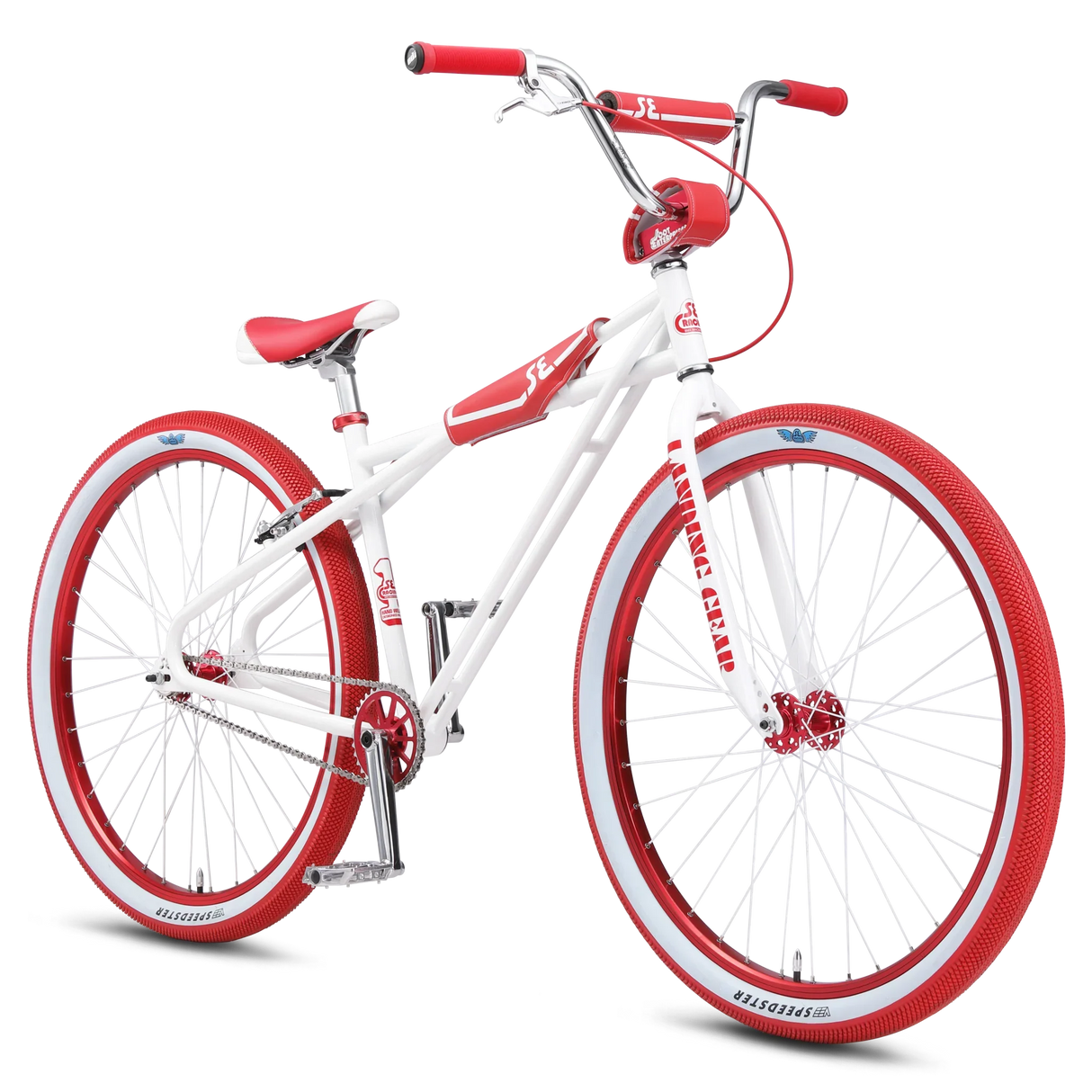

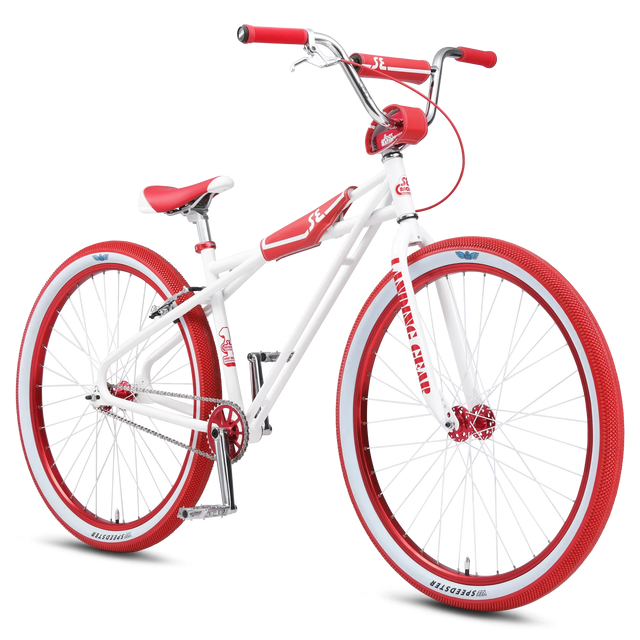

Quadangle Looptail 29"
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 3 days
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Overview
Overview
Technical Specifications
Technical Specifications

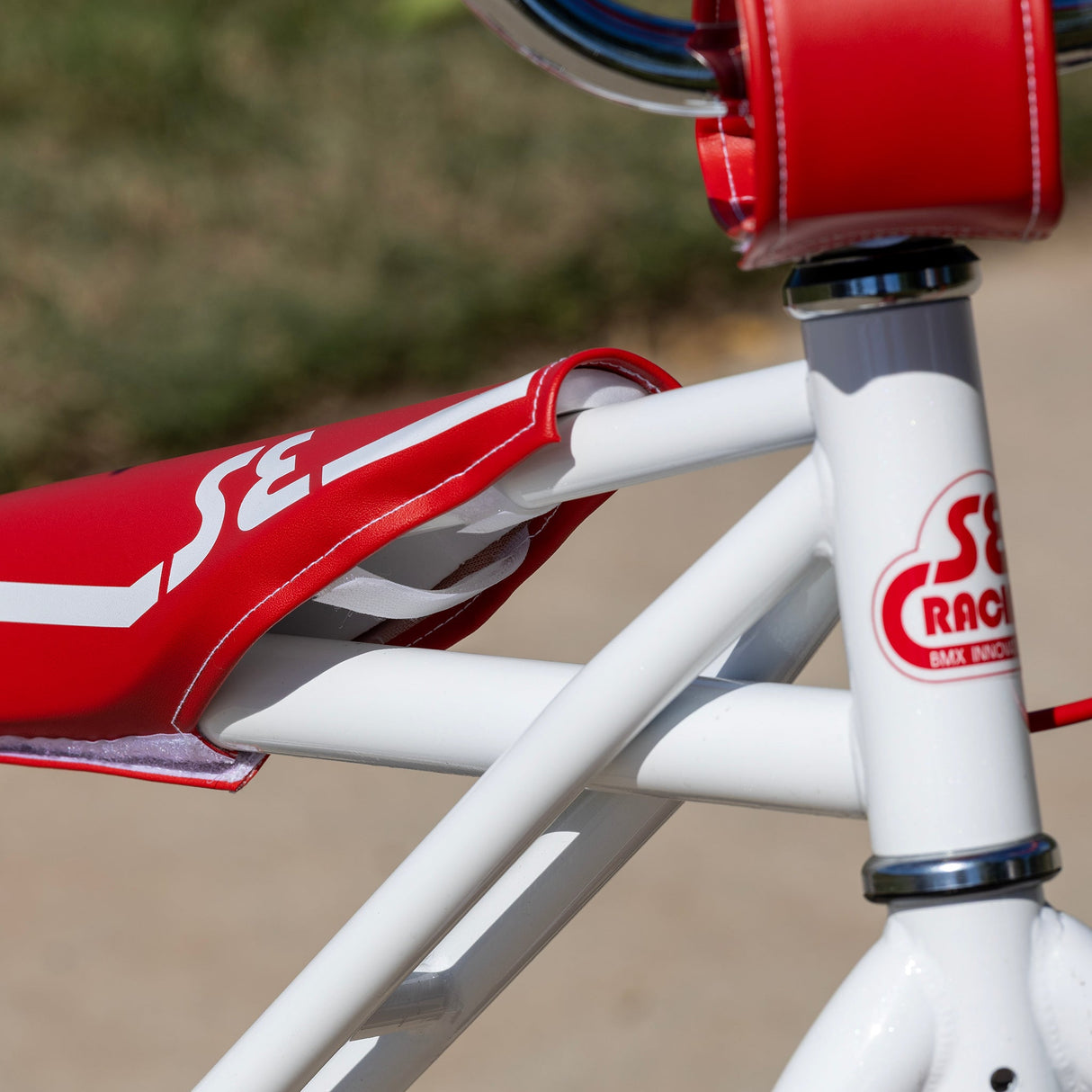

| Frame | 100% Cr-Mo Tubing, Classic Double Downtube Design, Internal Cable Routing, Looptail Rear End, heat Treated Retro Dropouts, Limited Edition & Individually Numbered on the Inside of the Rear Dropout |
| Fork | Landing Gear, Full Cr-Mo |

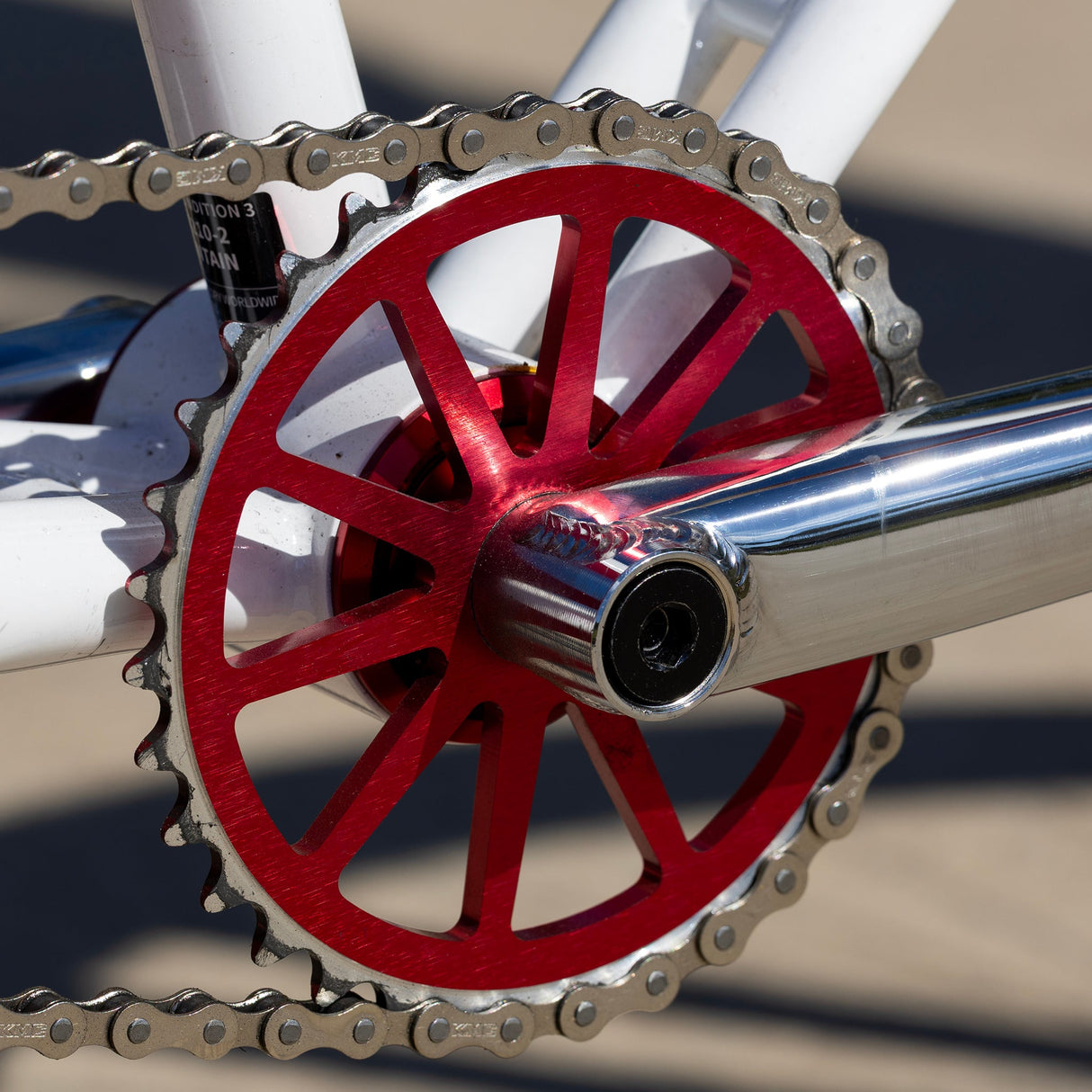

| Crankset | SE TSC Cr-Mo 3-pc Lightweight Cranks, Non-pinch bolt, Full Wrap Pedal Bosses, 170mm, Sealed American Bottom Bracket, 141mm Spindle Length, 19mm Spindle Diameter, 33T Alloy SE Quad Sprocket |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins |
| Chain | KMC S1 |
| Wheelset | SE Mohawk Sealed Bearing Flip Flop Hubs, 36H High-Flange Alloy, Double-wall Rims w/ Eyelets & CNC Sidewalls, 15T 9-Pawl, 108 Clicks LOUD Freewheel, Stainless Spokes |
| Tires | Vee Tire Co x SE Racing Speedster, 29" x 2.10" Front & Rear |
| Brakeset | Tektro 855AL V-Brake, Linear Cable |
| Headset | Tange 1-1/8" Threadless |
| Handlebar | Cr-Mo Power Wing Cruiser Bar, 28" x 7", 10° Backsweep, 1° Upsweep |

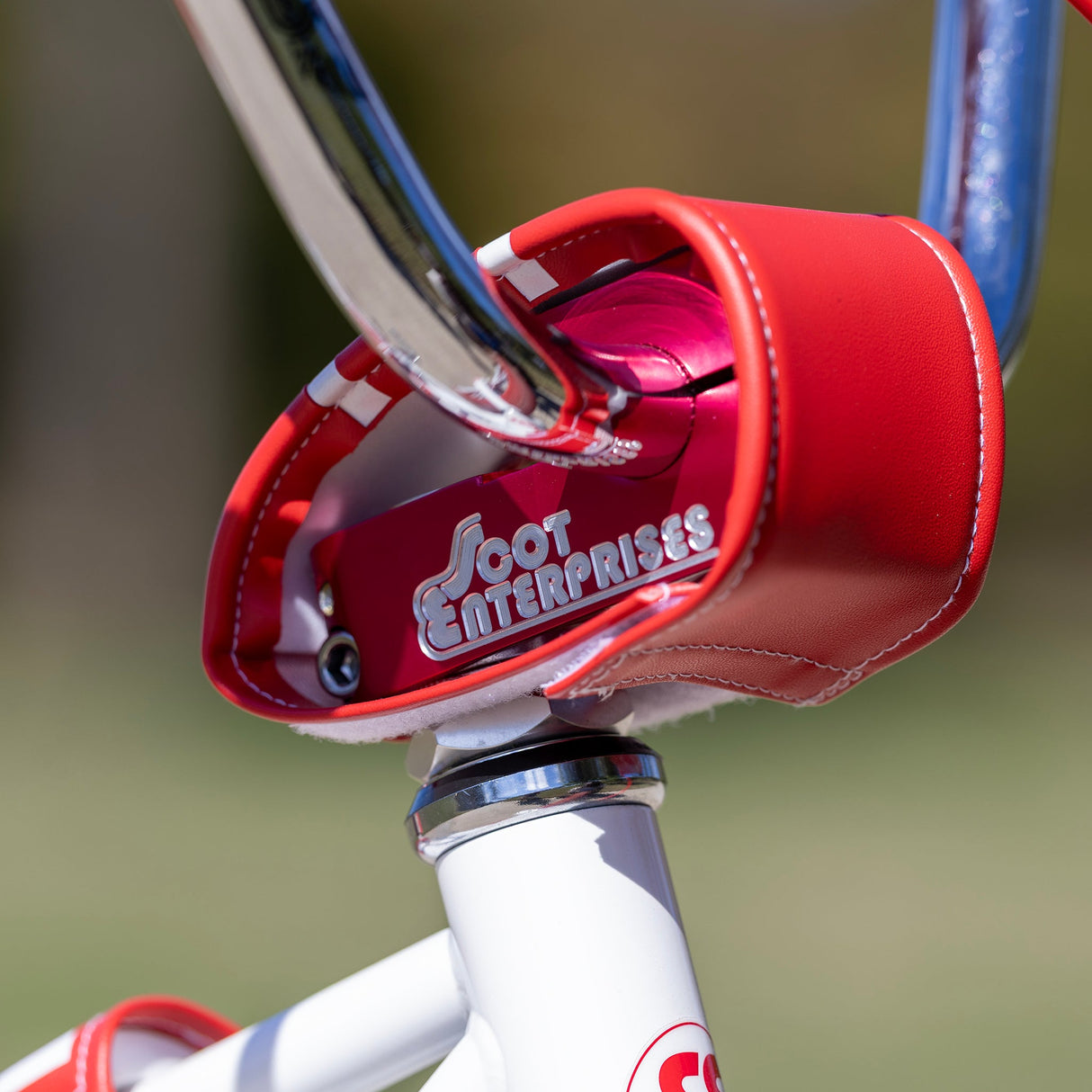

| Stem | Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts, 55mm Reach |
| Grips | ODI Long Neck Grips, Made in USA, w/ ODI End Plugs |

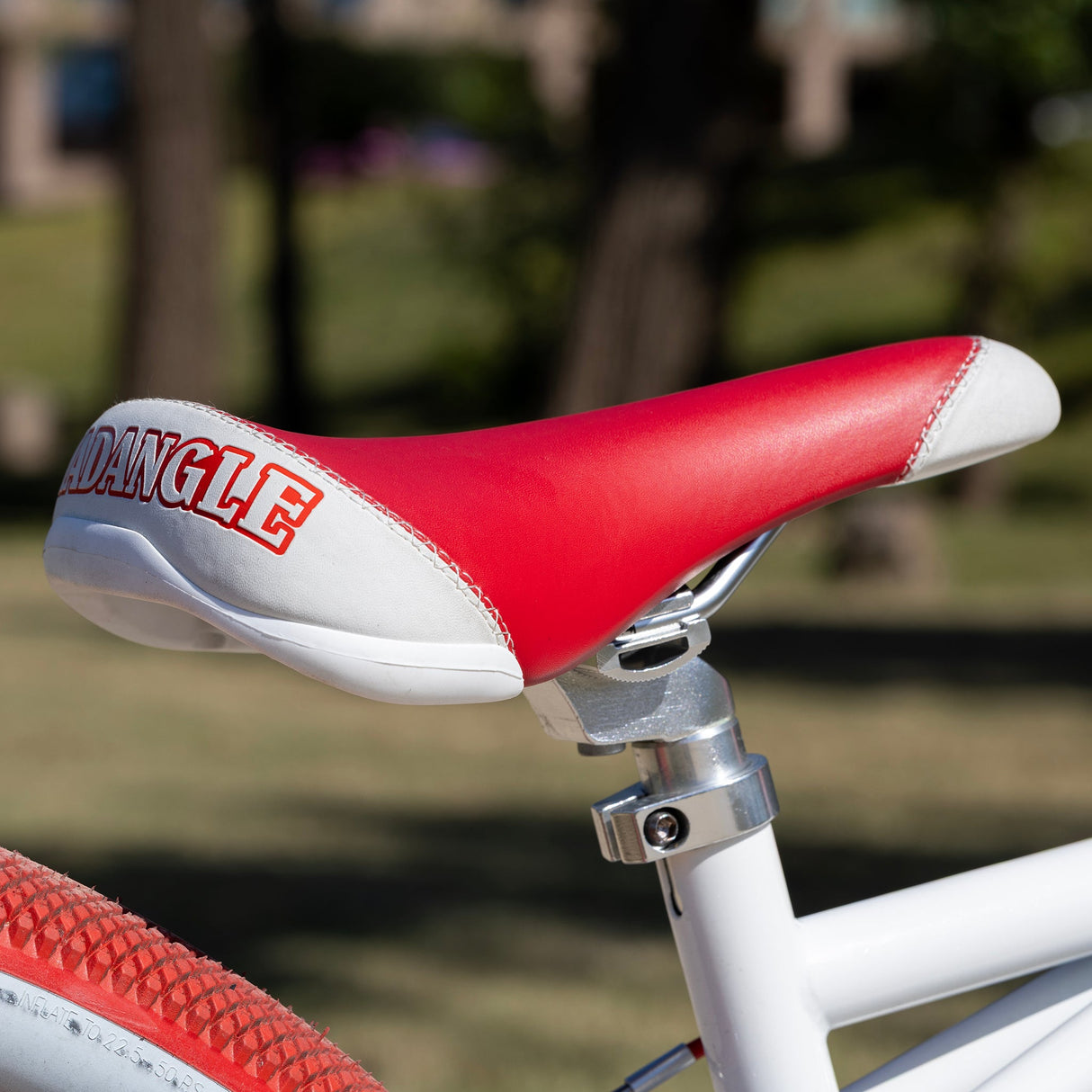

| Seat | New SE Captive Seat, Concave Design for Ultimate Hold & Comfort, w/ Custom SE Bottle Opener Brace |
| Seatpost | Micro-Adjust Alloy, 27.2mm |
| Accessories | SE Racing Padset, Alloy Valve Caps |
Parts are subject to change without notice. Chat with us if you have any questions.

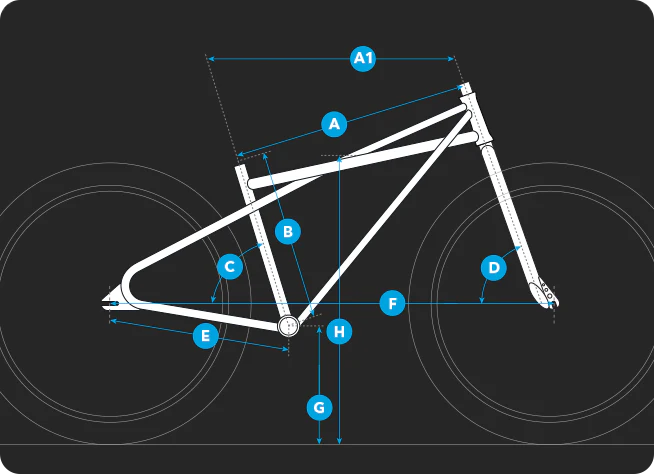

Geometry
Geometry
All measurements provided in inches unless otherwise noted.
| ATop Tube, Actual (inches) | 24" |
| BSeat Tube, Center To Top (inches) | 16.9" |
| CSeat Tube Angle (degrees) | 73° |
| DHead Tube Angle (degrees) | 71° |
| EChainstay Length (inches) | 17.9" |
| FWheelbase (inches) | 44" |
| GBottom Bracket Height (inches) | 11.5" |
| HStandover (inches) | 29.4" |
| Stem (mm) | 55mm |
| Handlebar Width (inches) | 28" |
| Crank (mm) | 170mm |
| Wheel Size (inches) | 29" |
| Seat Post Diameter (mm) | 27.2mm |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
