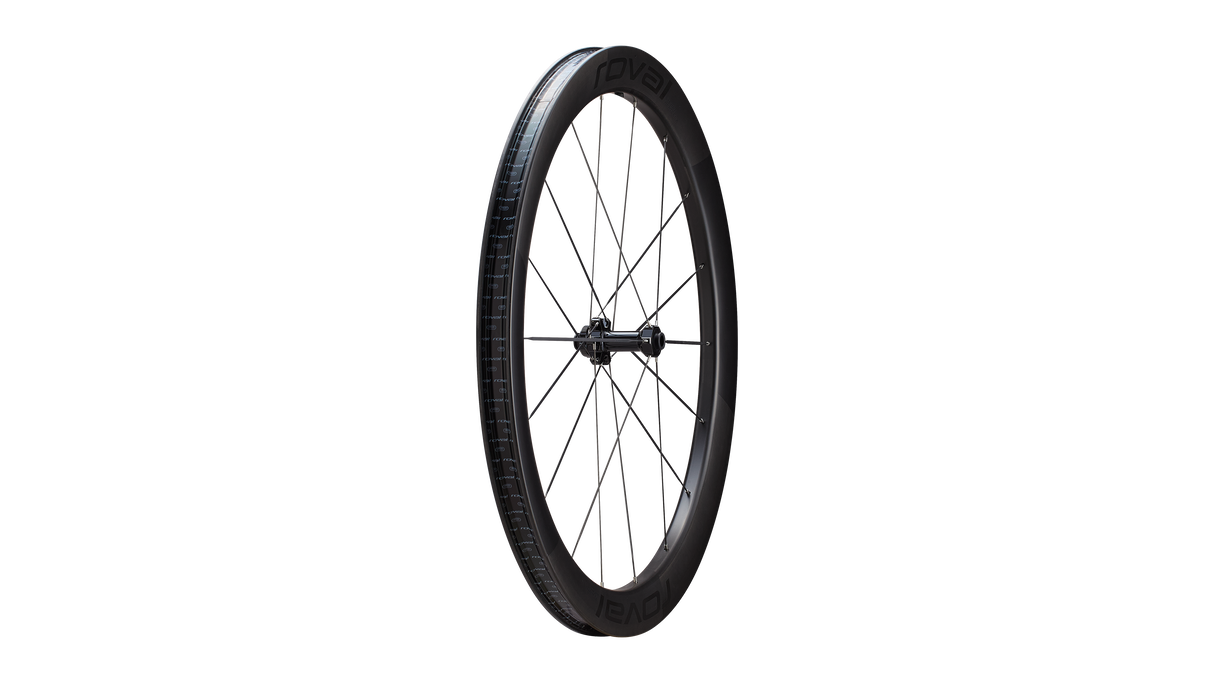

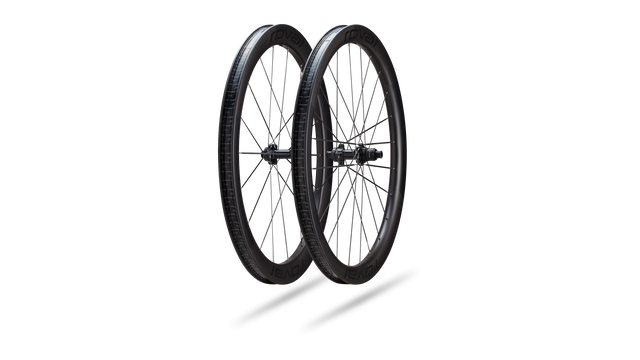

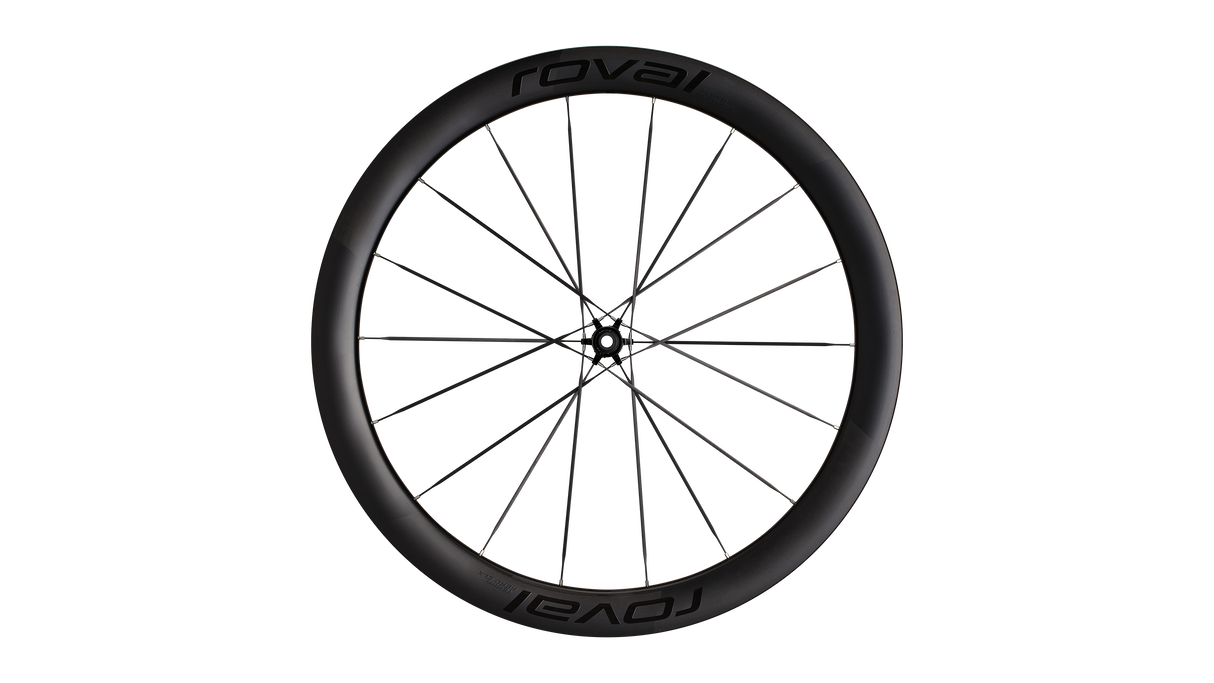

Roval Terra Aero CLX
Expected to ship within 3 days
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.

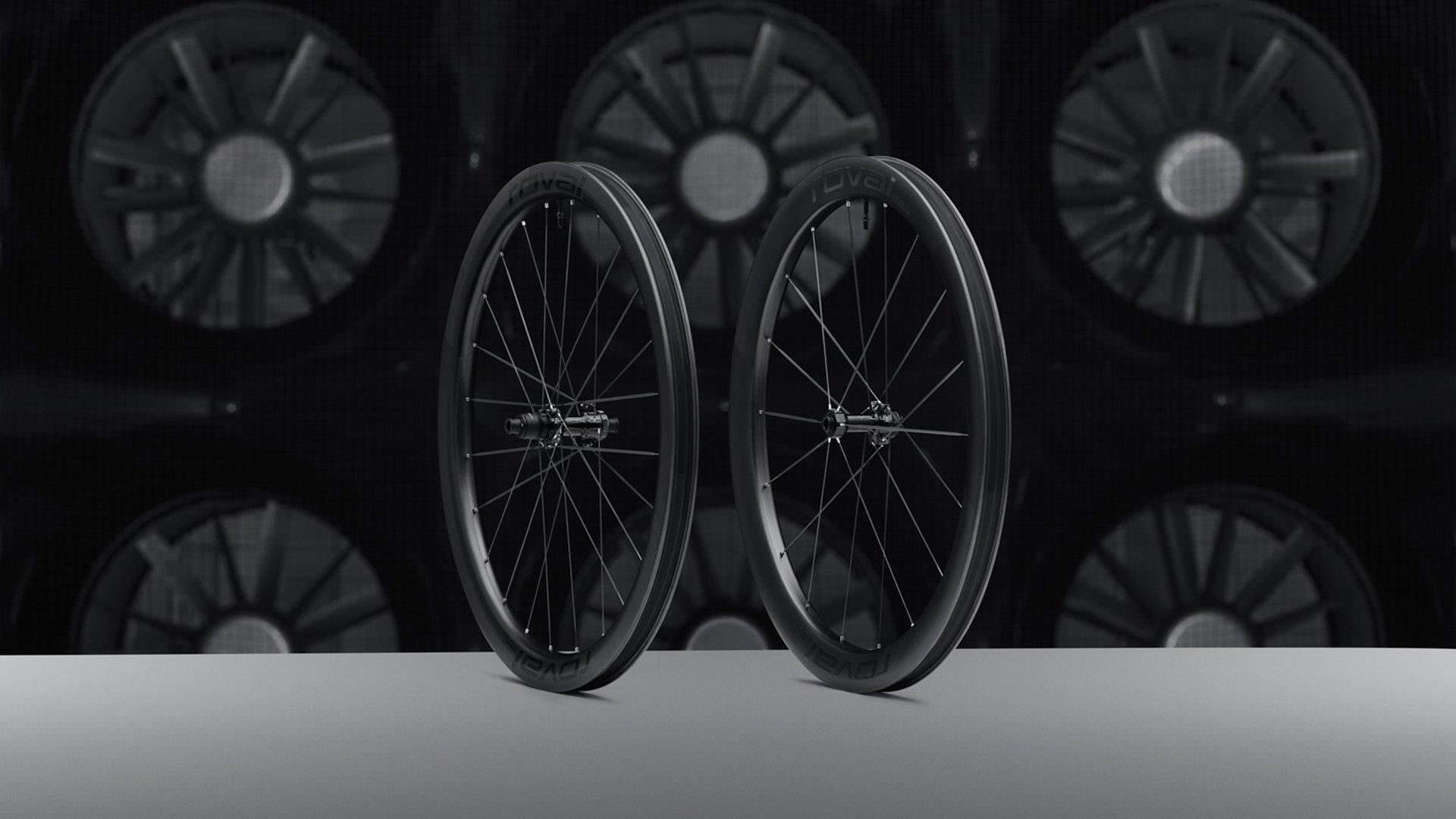

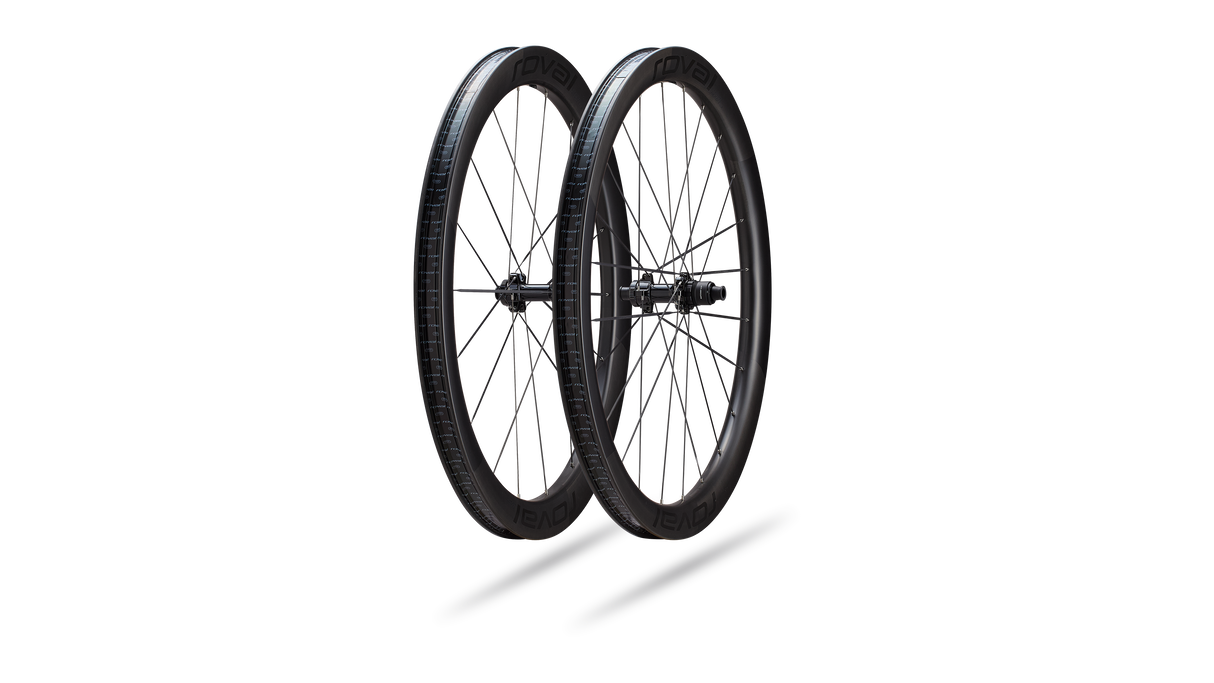

Roval Terra Aero CLX
-

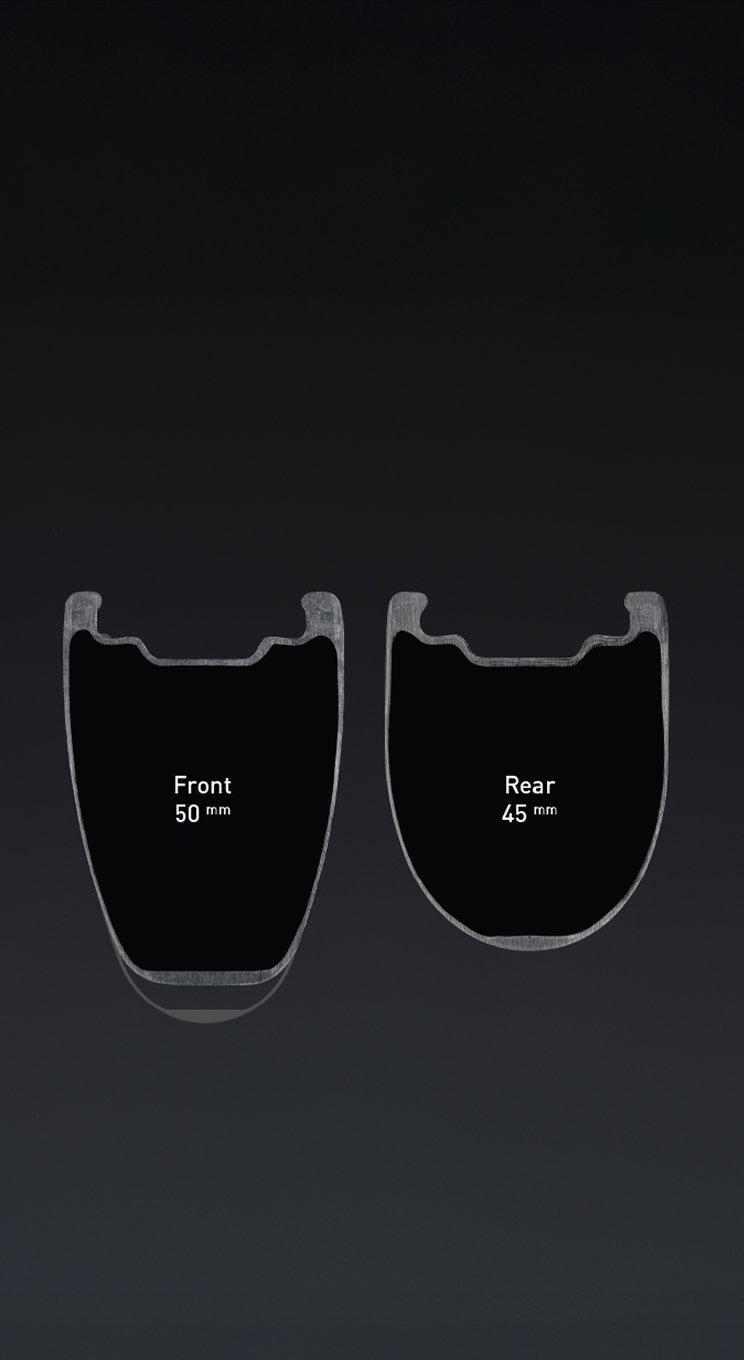

Chopped Aero Speed Shaping
The aerodynamic speed of a 70mm deep road wheel at the weight & stability of a shallow gravel rim.
-

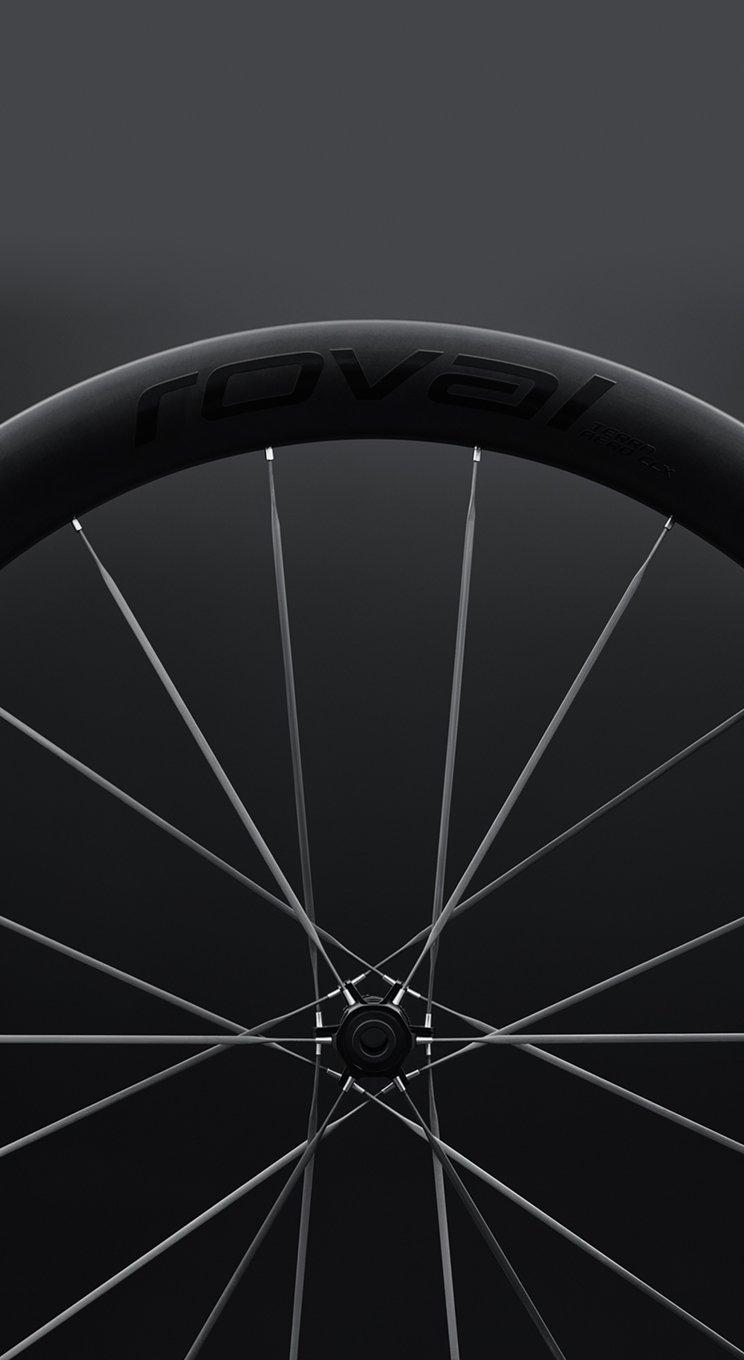

Composite Spokes
Roval Aero Composite Spokes by ARRIS outperform round profiles by 0.5–0.3 watts.
-

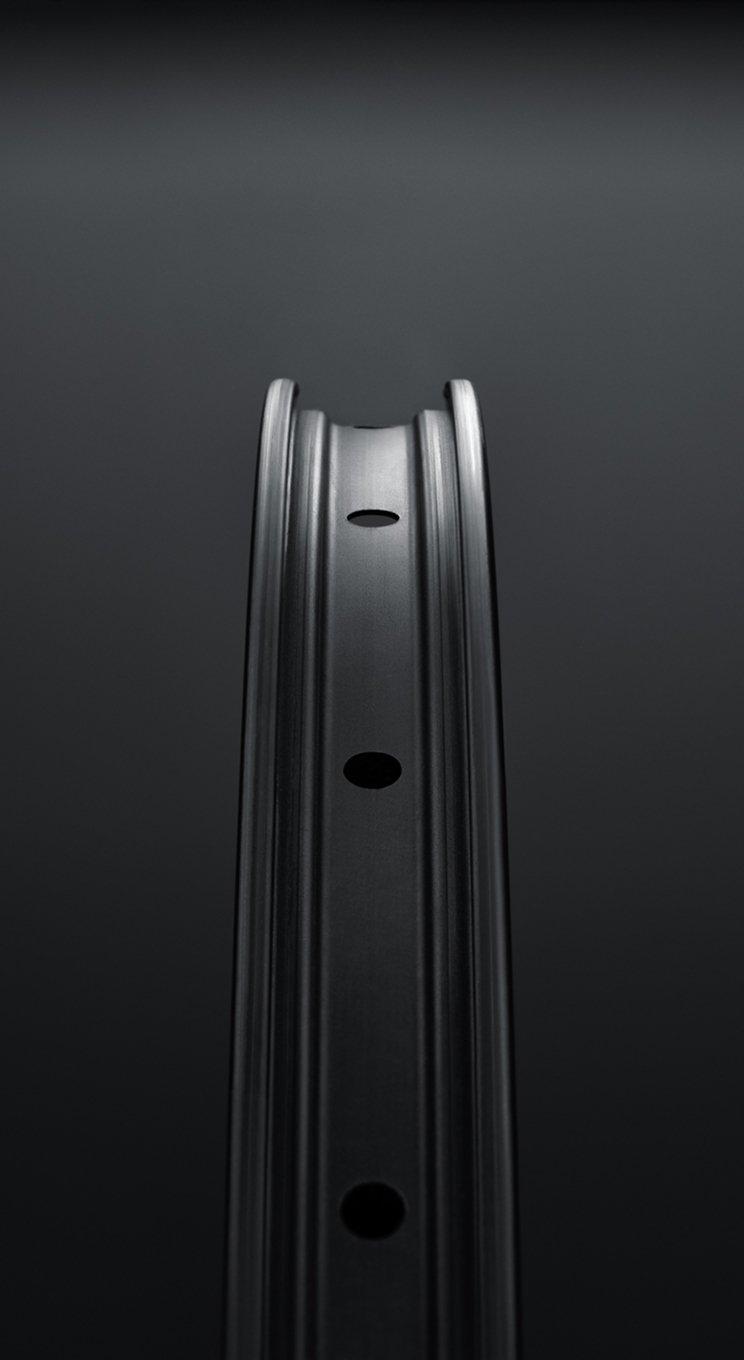

91% More Force to Flat
5.38mm bead hooks provide maximum flat resistance.
Overview
Overview
At a Glance
- Use: Gravel Racing
- Weight: 1,340g with tape & valves
- Rim Depth & Width: 50mm / 45mm F/R external, 38.5mm external width
- Hub & Engagement: DT Swiss 180 EXP internals, 36T
- Spokes: Roval Aero Composite Spokes by ARRIS
Technical Specifications
Technical Specifications

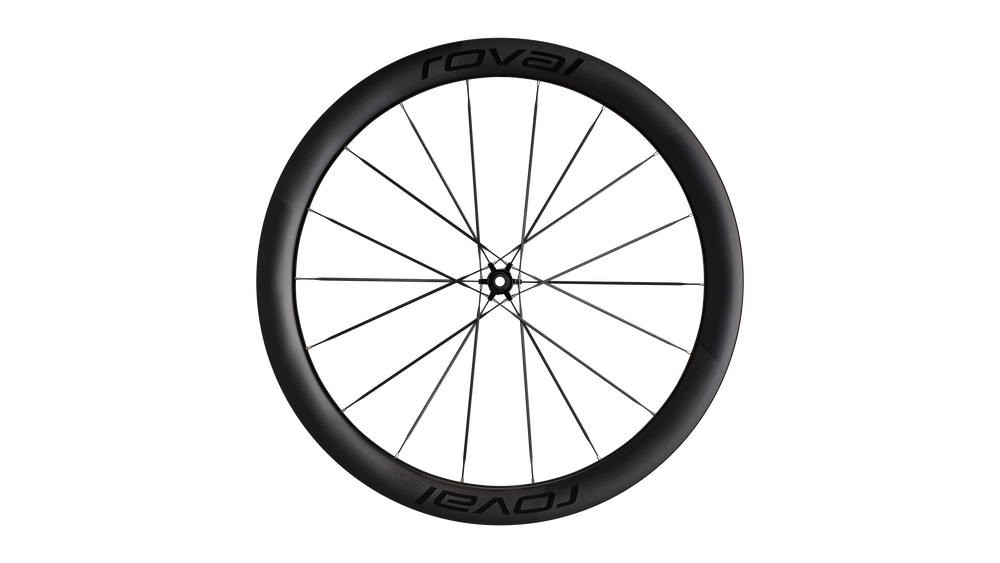

| Front rim | Terra Aero CLX Carbon Clincher, 700c (CR2570) |

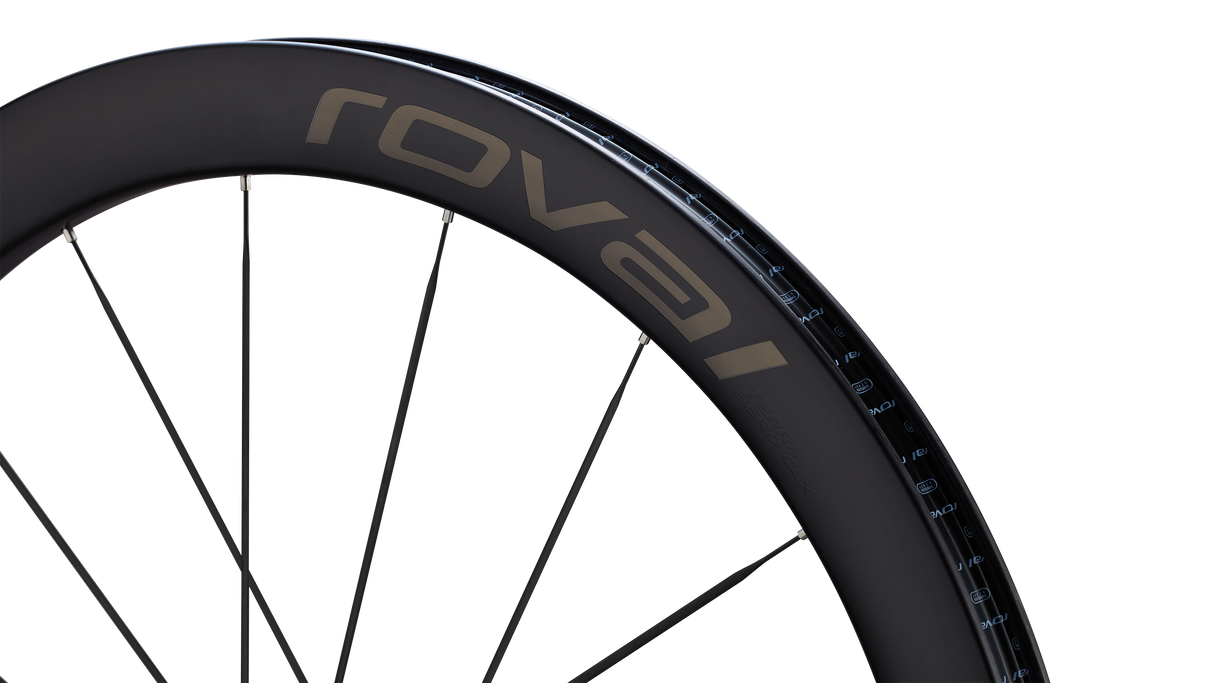

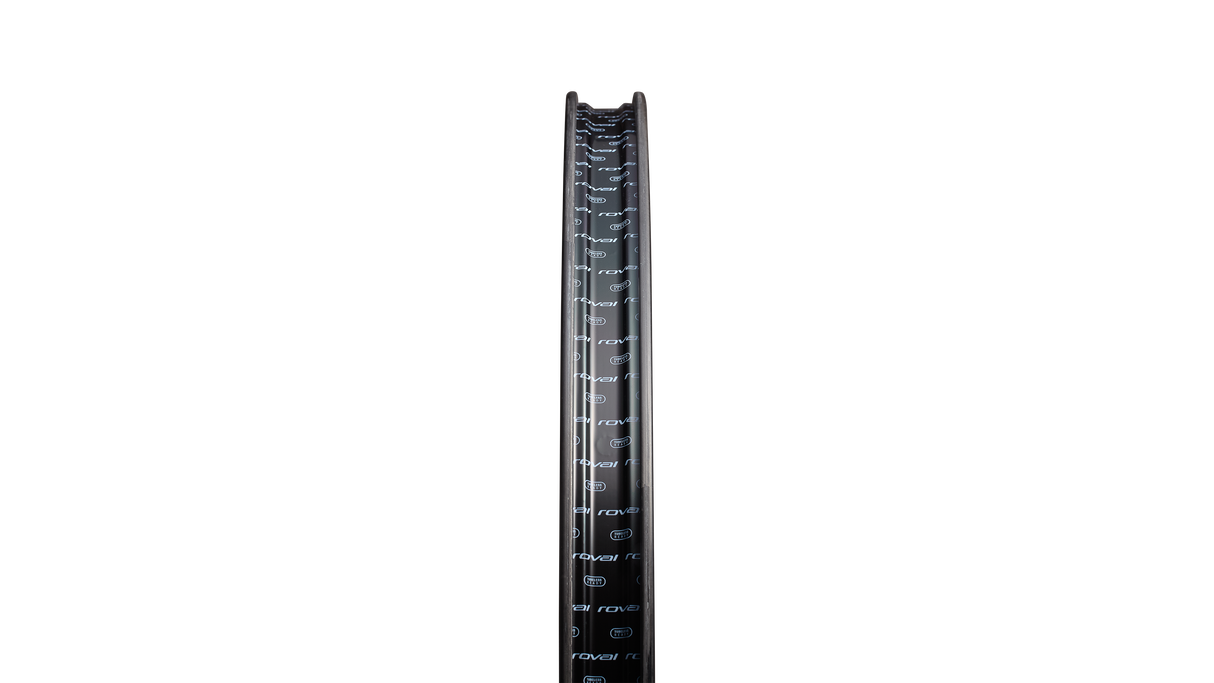

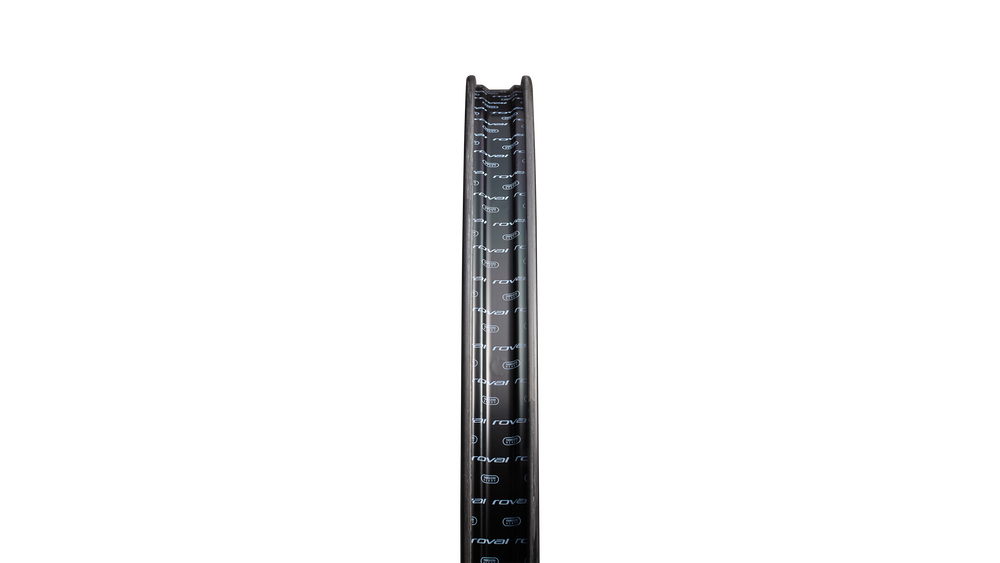

| Front rim dimensions | Depth: 50mm, External Width (at widest point): 38.5mm, Internal Width: 27mm, Bead Hook Width: 5.38mm |

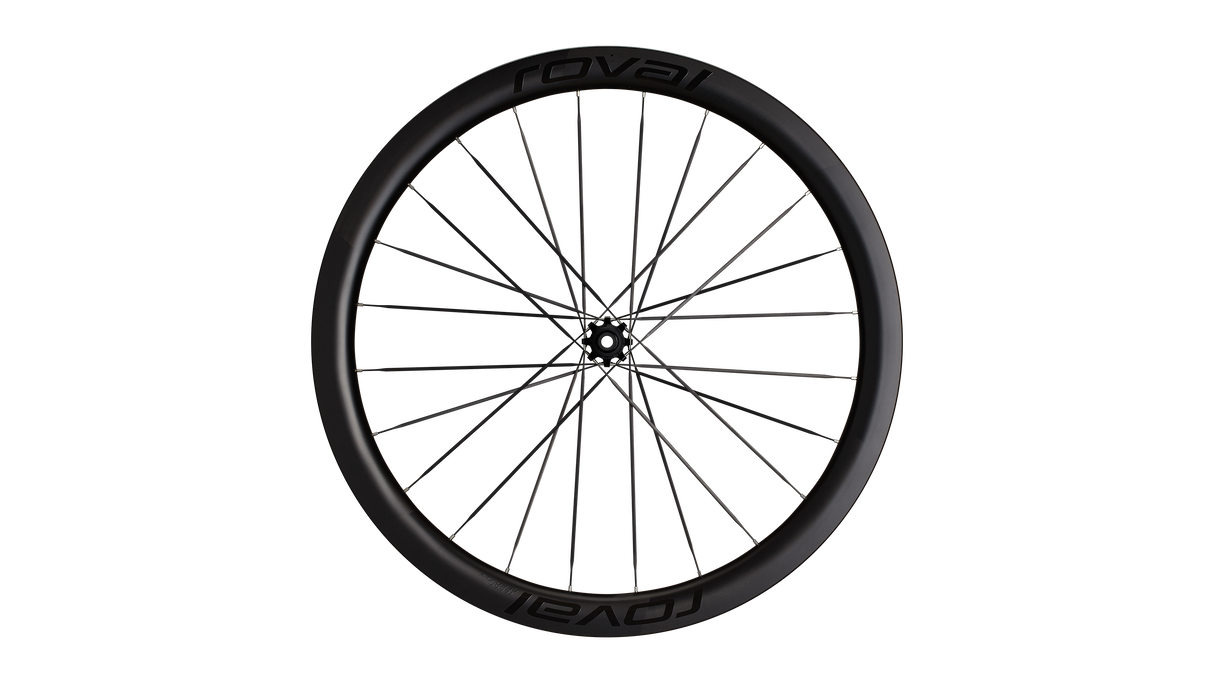

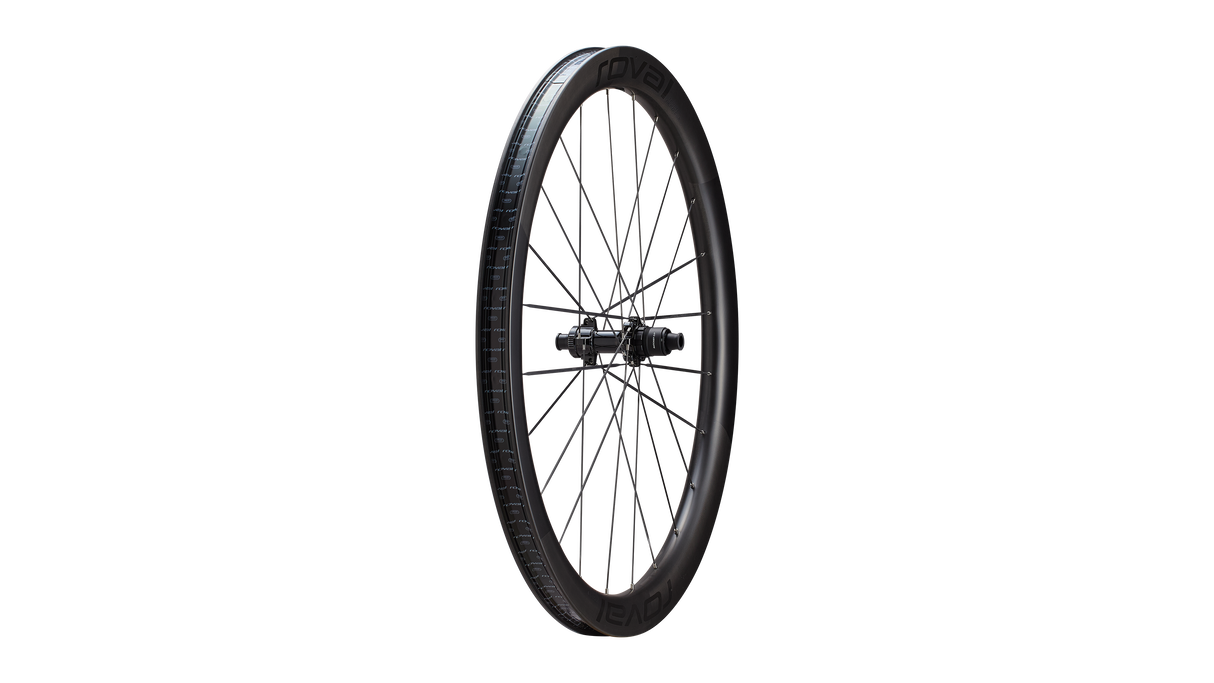

| Rear rim | Terra Aero CLX Carbon Clincher Rear, 700c (CR2571) |
| Rear rim dimensions | Depth: 45mm, External Width (at widest point): 38.4mm, Internal Width: 27mm, Bead Hook Width: 5.38mm |
| Rim construction | Carbon Clincher Hooked |
| Wheel size / etrto | 622 × 27 (700c) |
| Hole count | Front: 18H, Rear: 24H |
| Tubeless compatibility | Yes |
| Insert compatibility | Yes |
| Brake compatibility | Disc (Centerlock) |
| Valve stem length | Roval Tubeless Valve, Alloy 70mm (Front) 60mm (Rear) |

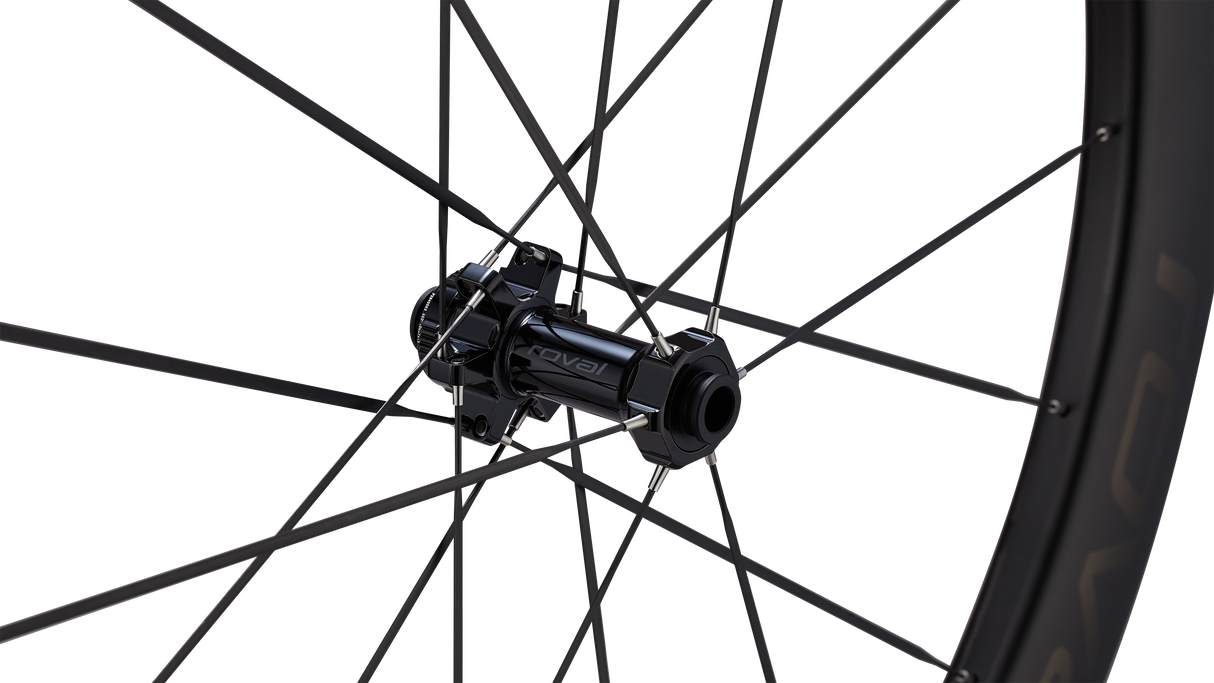

| Front hub | Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F) |

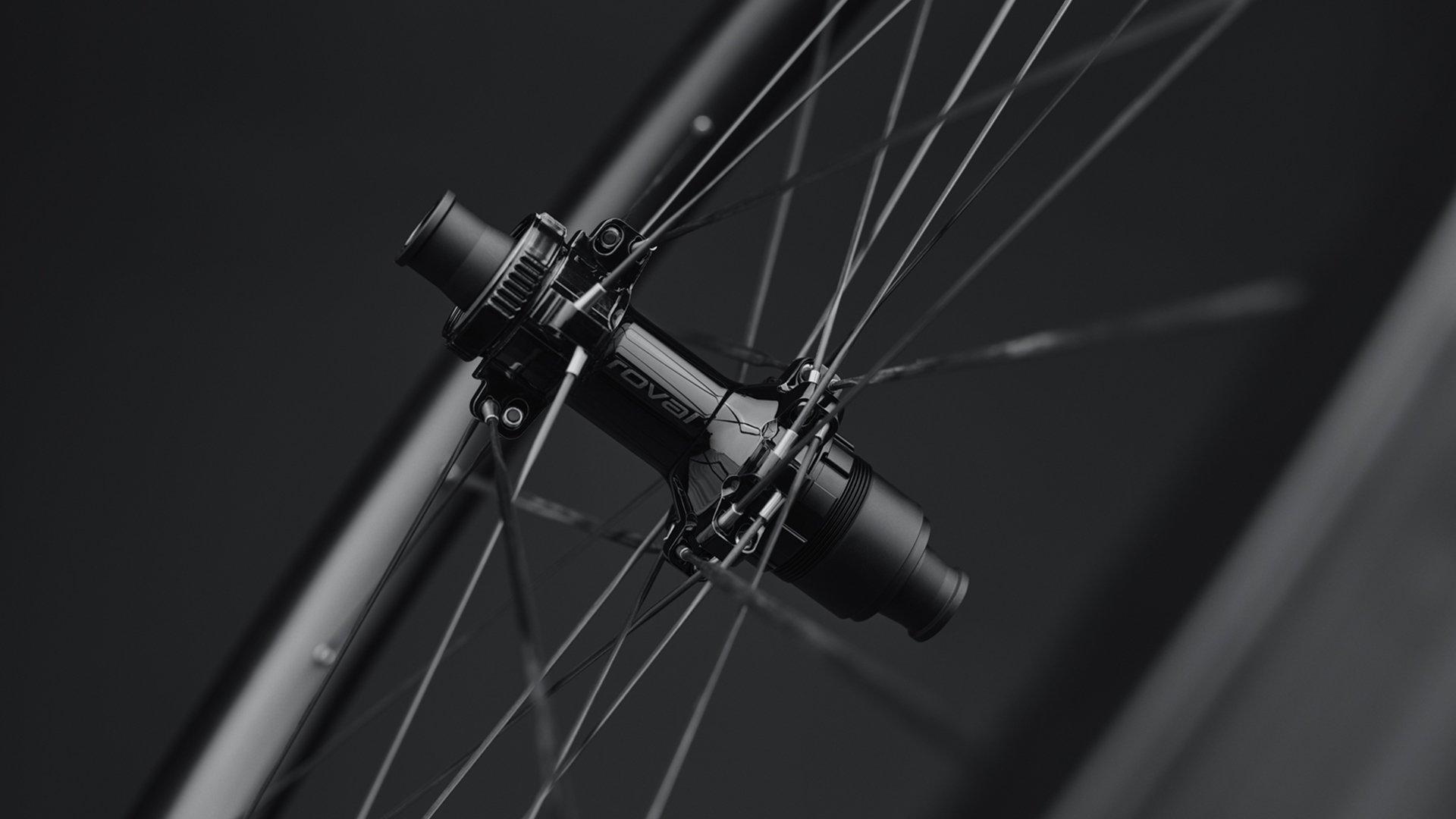

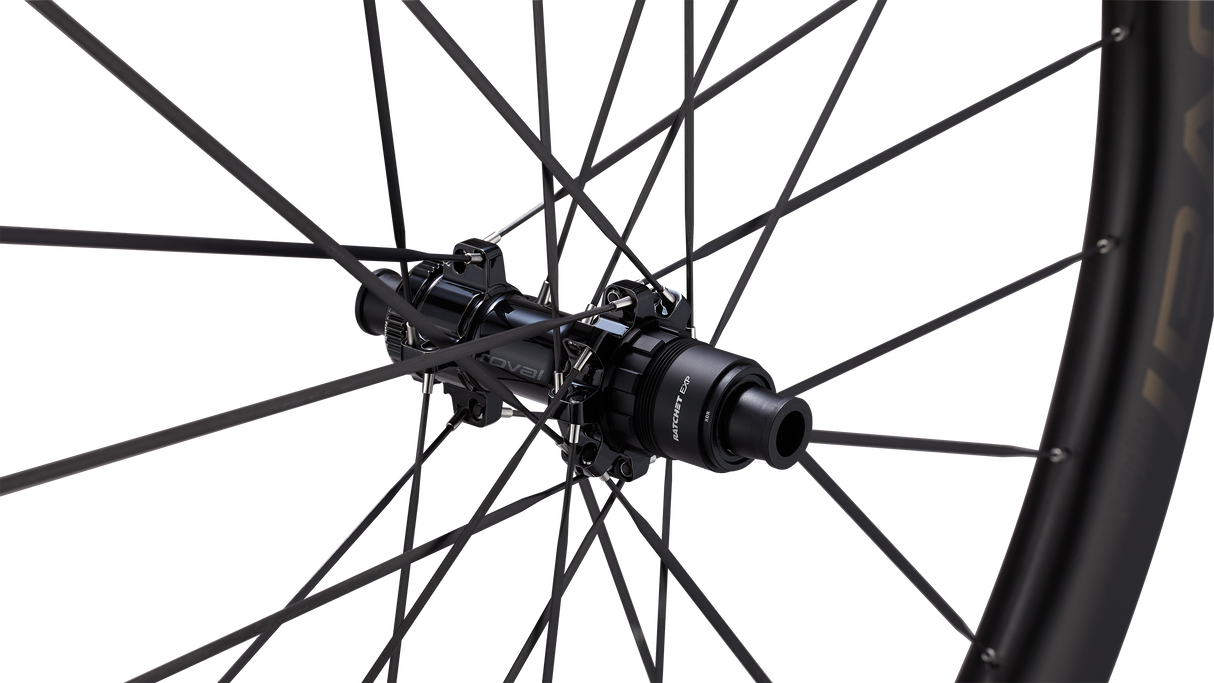

| Rear hub | Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R) |
| Front hub bearing | DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5mm), NDS: 6802 (15 x 24 x 5mm) |
| Rear hub bearing | DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7mm), NDS: 6802 (15 x 24 x 5mm) |
| Rear freehub body | DT Swiss Ratchet EXP (36T ): Sram XD-R |
| Front spokes | Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 264mm, NDS: 274mm) |
| Rear spokes | Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 280mm, NDS: 276mm) |
| Front lacing pattern | Two-Cross / Radial (2:1), Not Tucked |
| Rear lacing pattern | One-Cross / Three-Cross (2:1), Not Tucked |
| Nipples | ARRIS MK4 Spoke Nipple Alloy, 6mm |
| Approved tire widths | 35mm-60mm (2.2") |
| Max pressure | 35mm – 70psi, 36-45mm – 55psi, 46-50mm – 45psi, 51-60mm - 40psi |
| Tire type | Clincher Tubeless and Clincher Tube Type |
| Tubeless tape width | 30mm |
| Design tire | Tracer TLR 45mm |
| Front weight | 640g (with valves and tape) |
| Rear weight | 700g (with valves and tape) |
| Wheelset weight | 1340g (with valves and tape) |
| Extras | 4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only) |
| E-bike approved | No |
| Certifications | ISO 5775-2, UCI Approved |
| Weight limit | 275 lbs / 125 kg |
| Assembly method | Hand Built |
| Warranty | Limited Lifetime Warranty |
Parts are subject to change without notice. Chat with us if you have any questions.
