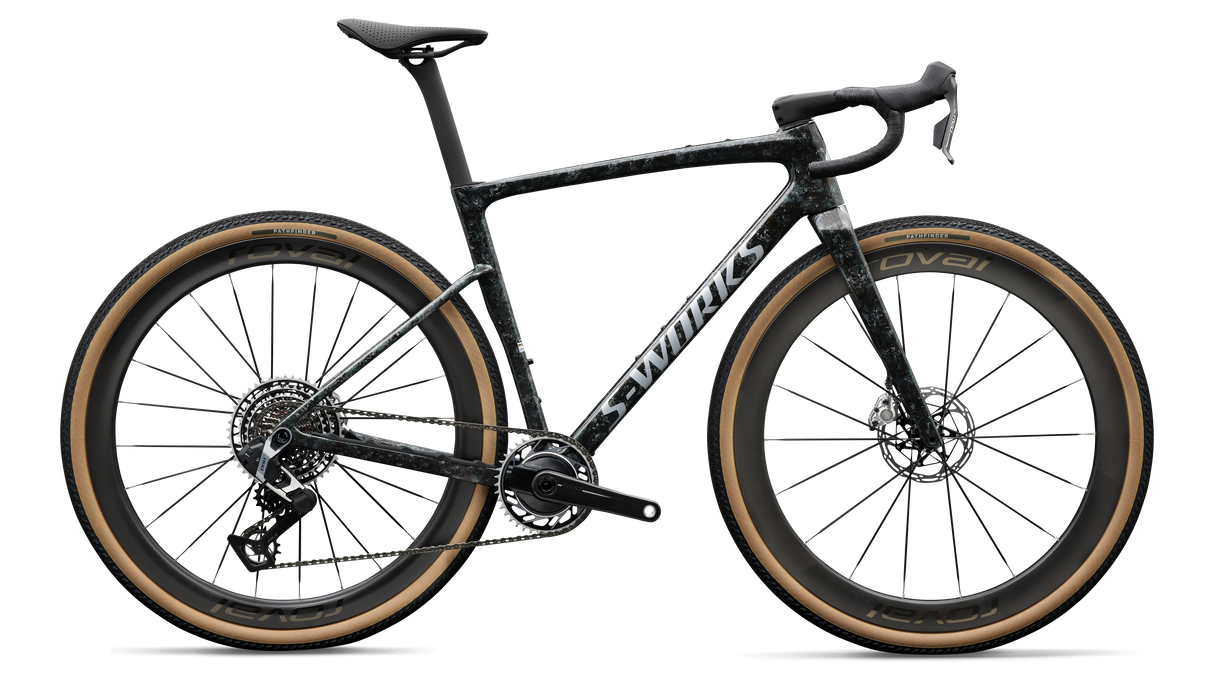

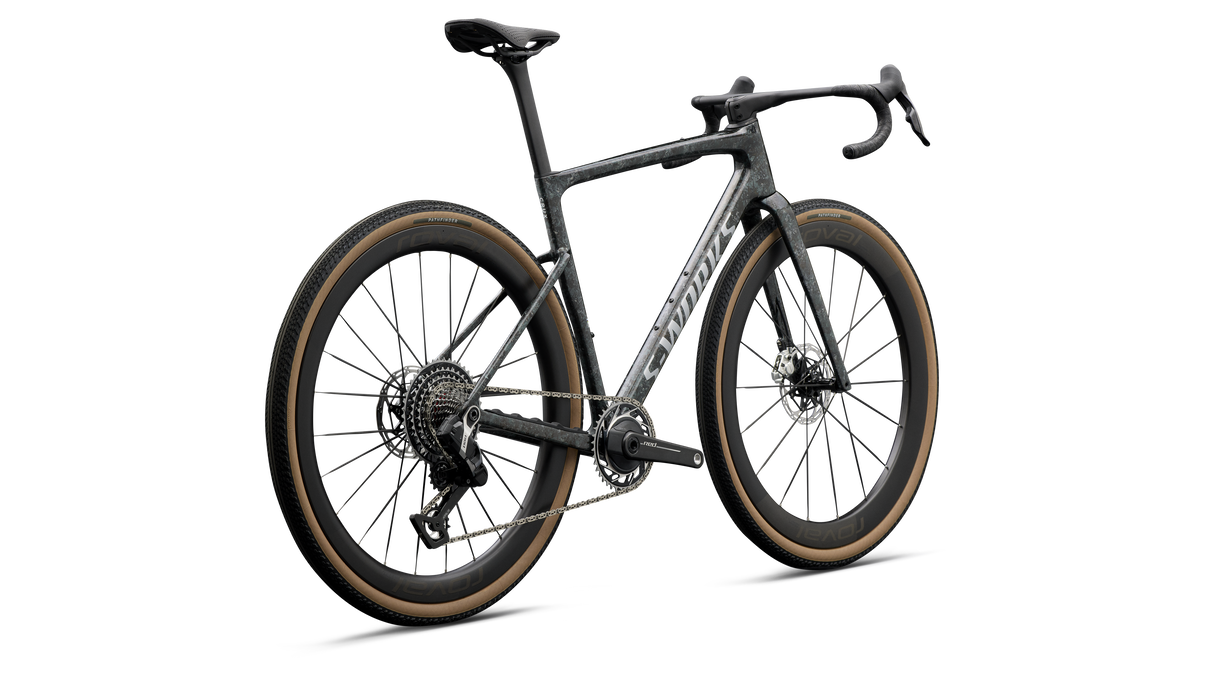

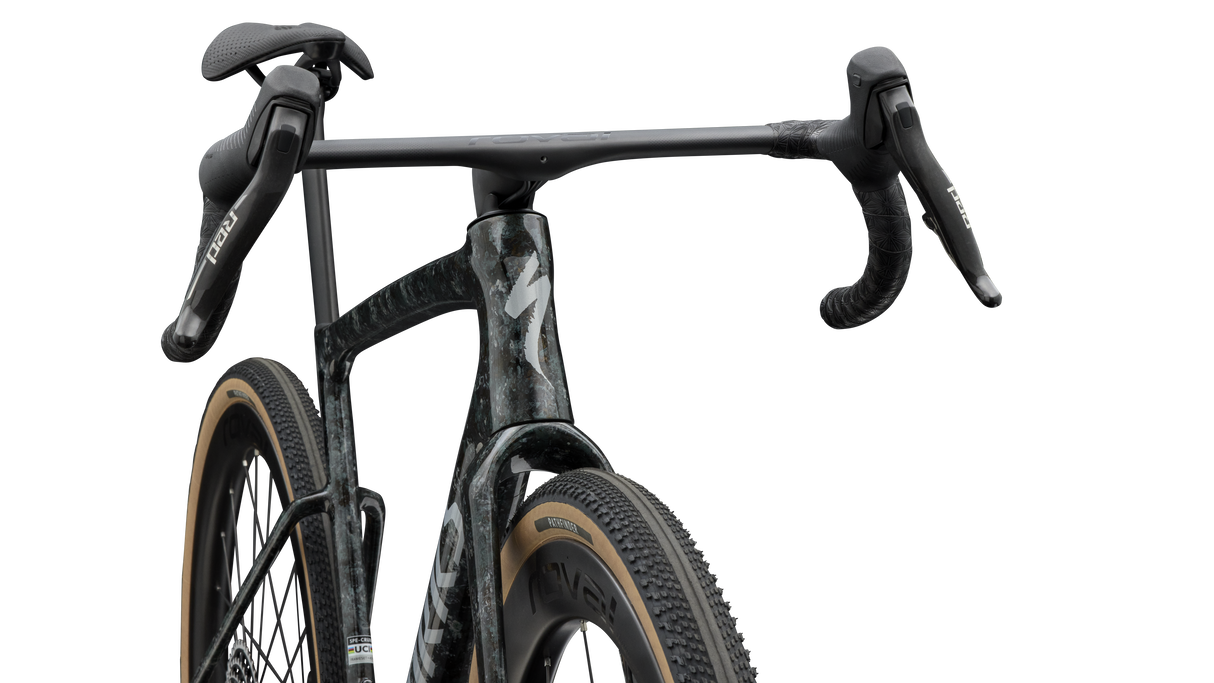

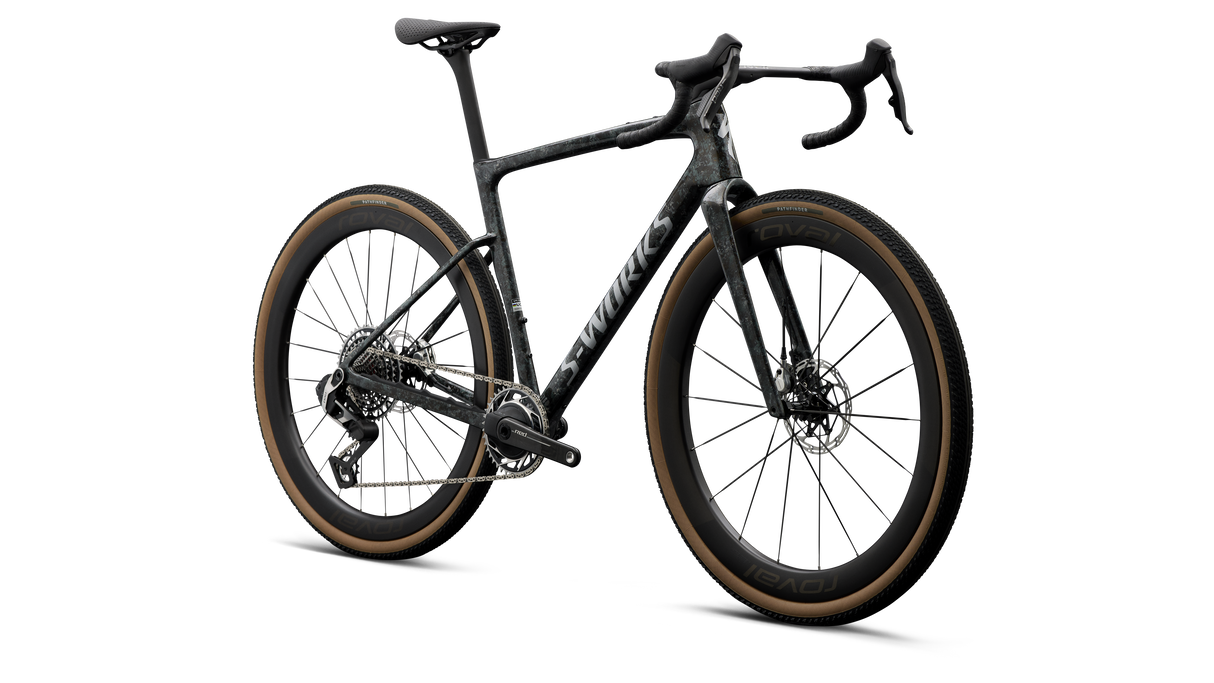

S-Works Crux 5 Gravel Road Bike
Expected to ship within 3 days
Delivered fully assembled and tuned by Bike Mart—ready to ride right at your doorstep within 10 miles of any DFW location.
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
-
9:58 Faster Over Unbound
Unbound Winner Sofía Gómez Villafañe’s Time to Finish at Unbound would be 9:58 faster on the Crux 5.
-

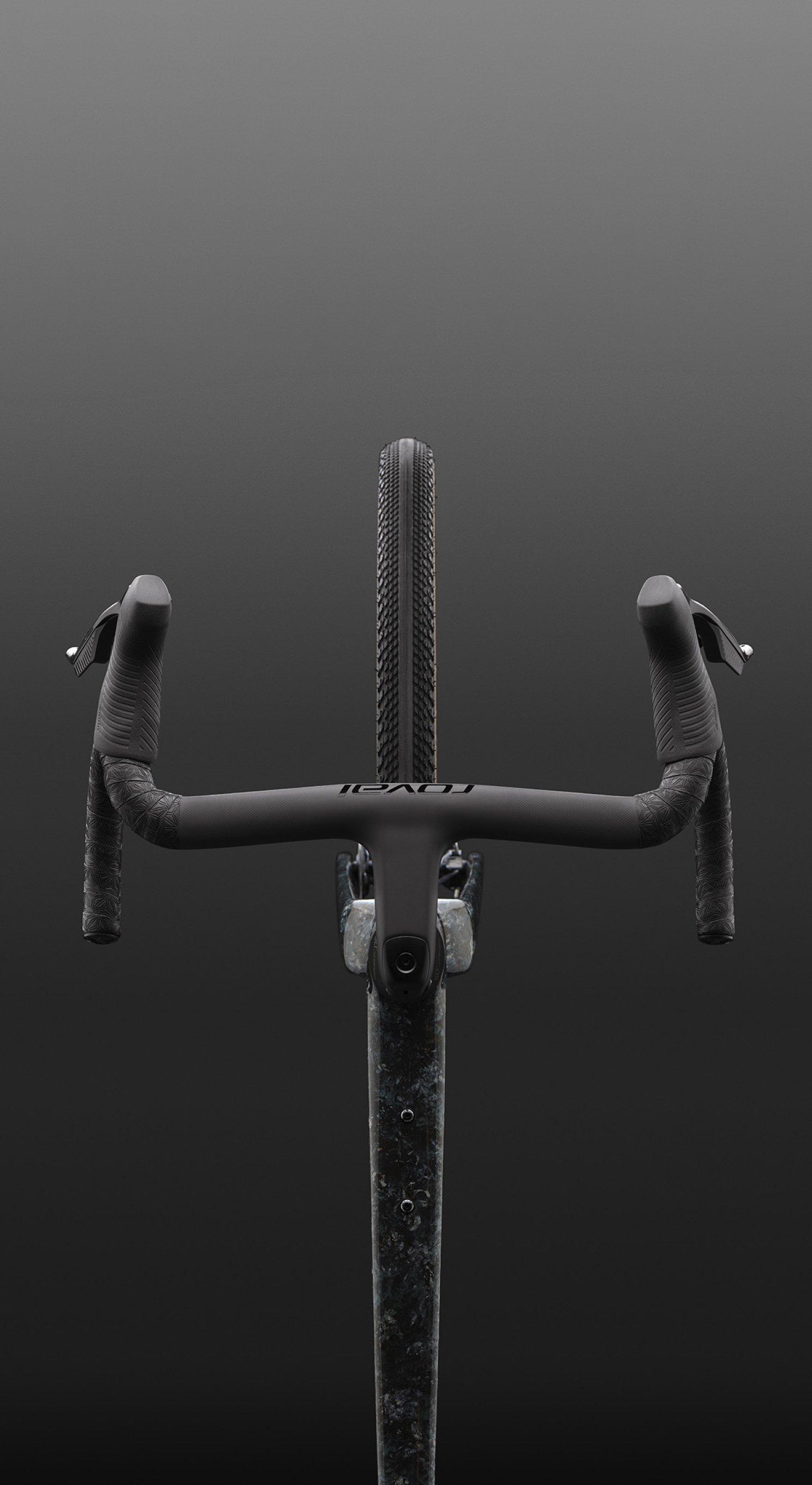

A System of Speed
Aero Gains Breakdown: Frame, fork & seatpost: 50%. Roval Terra Aero wheels: 30%. Roval Terra cockpit: 20%.
-

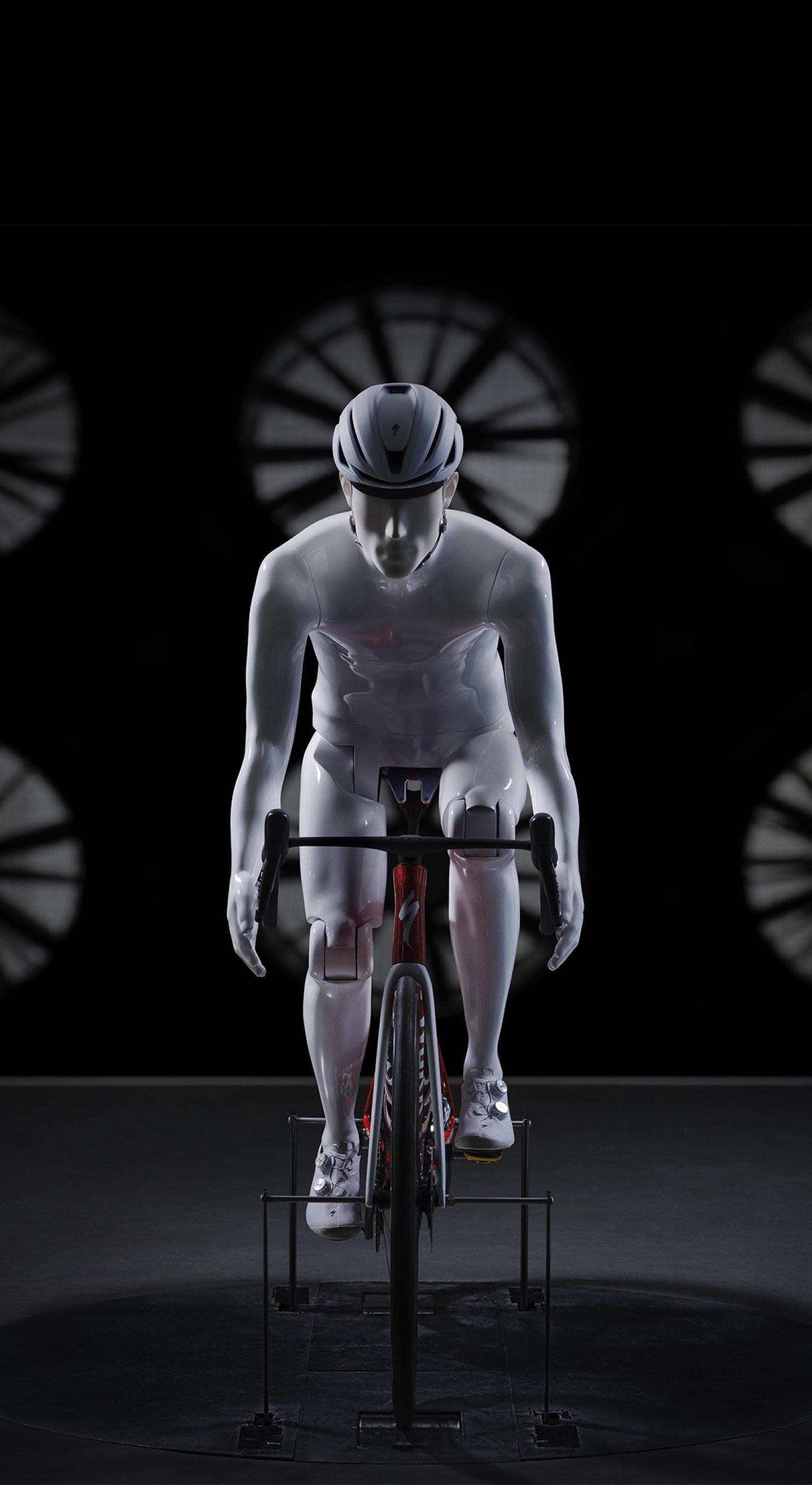

Moving Leg Mannequin
Win Tunnel testing incorporates our 6th Gen Moving Leg Mannequin.
-

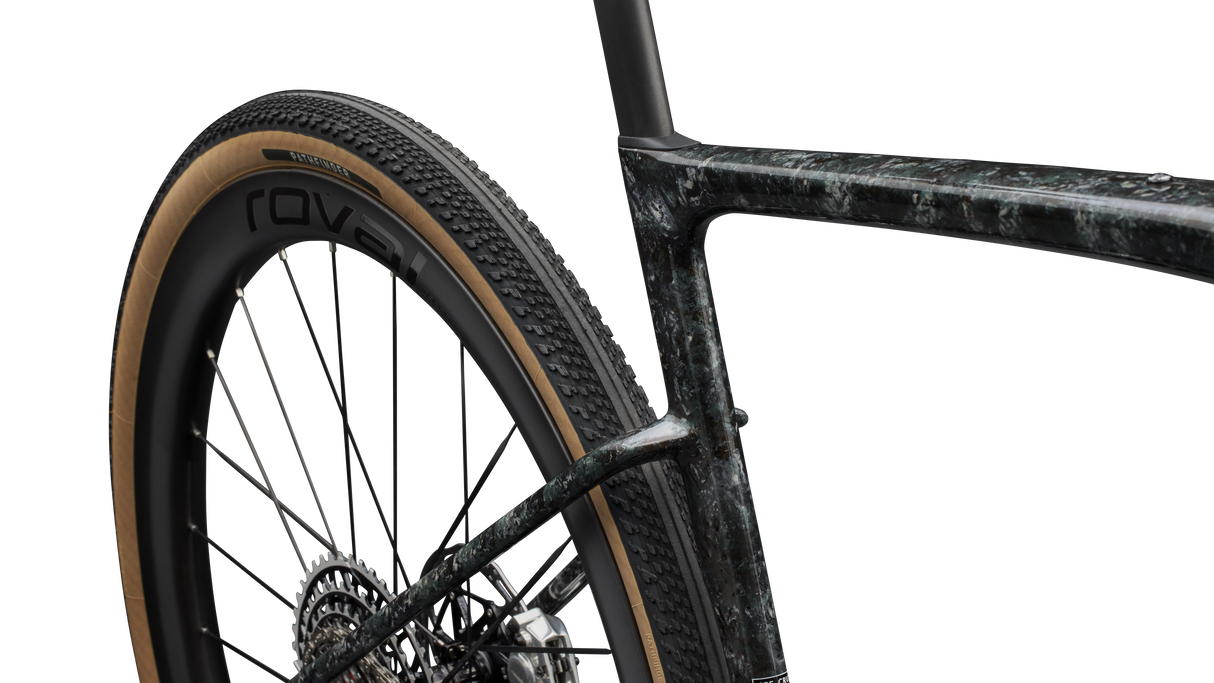

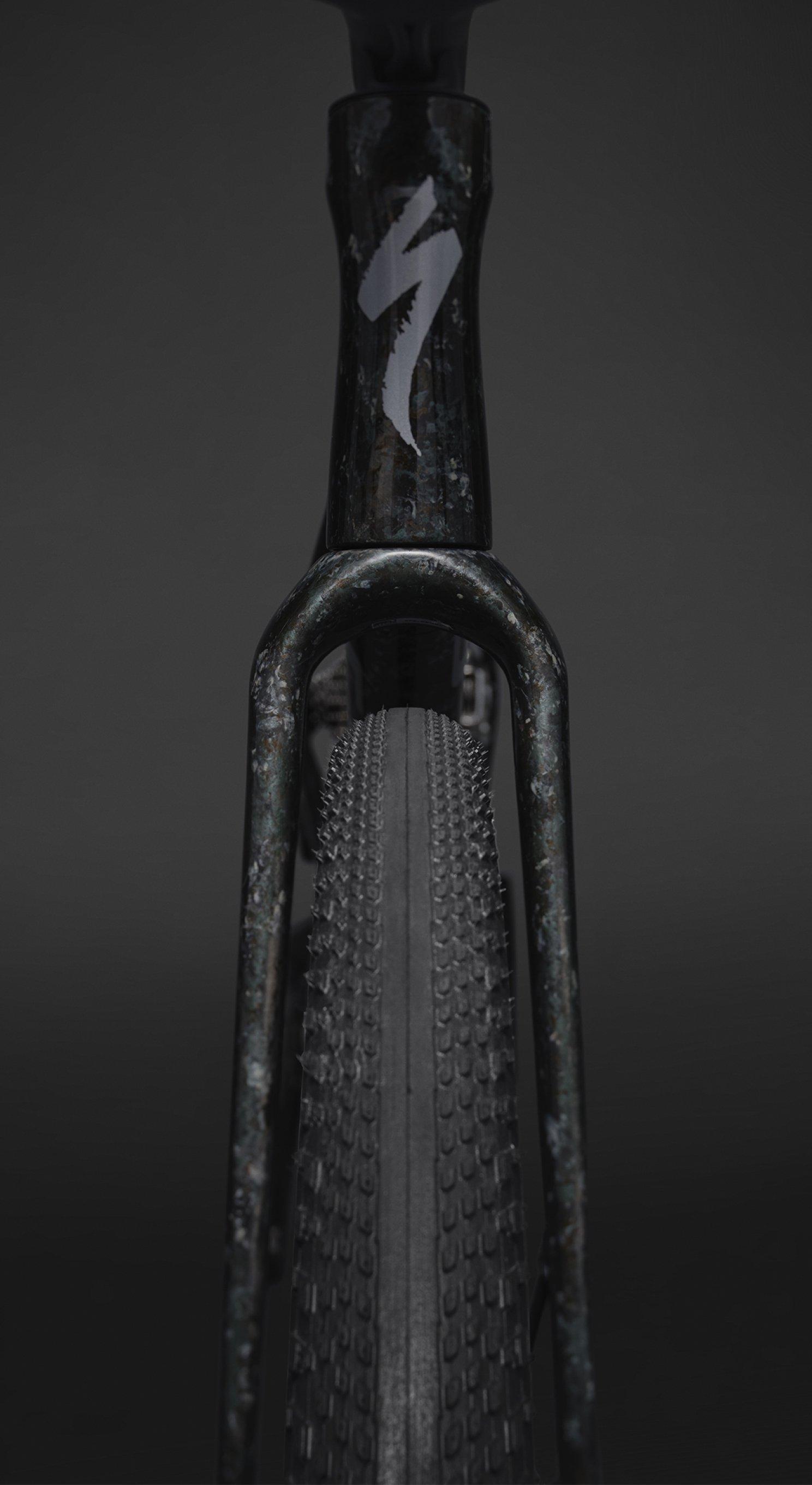

Fatter is Faster
Run up to 55mm / 2.2" tires with no compromises.
-

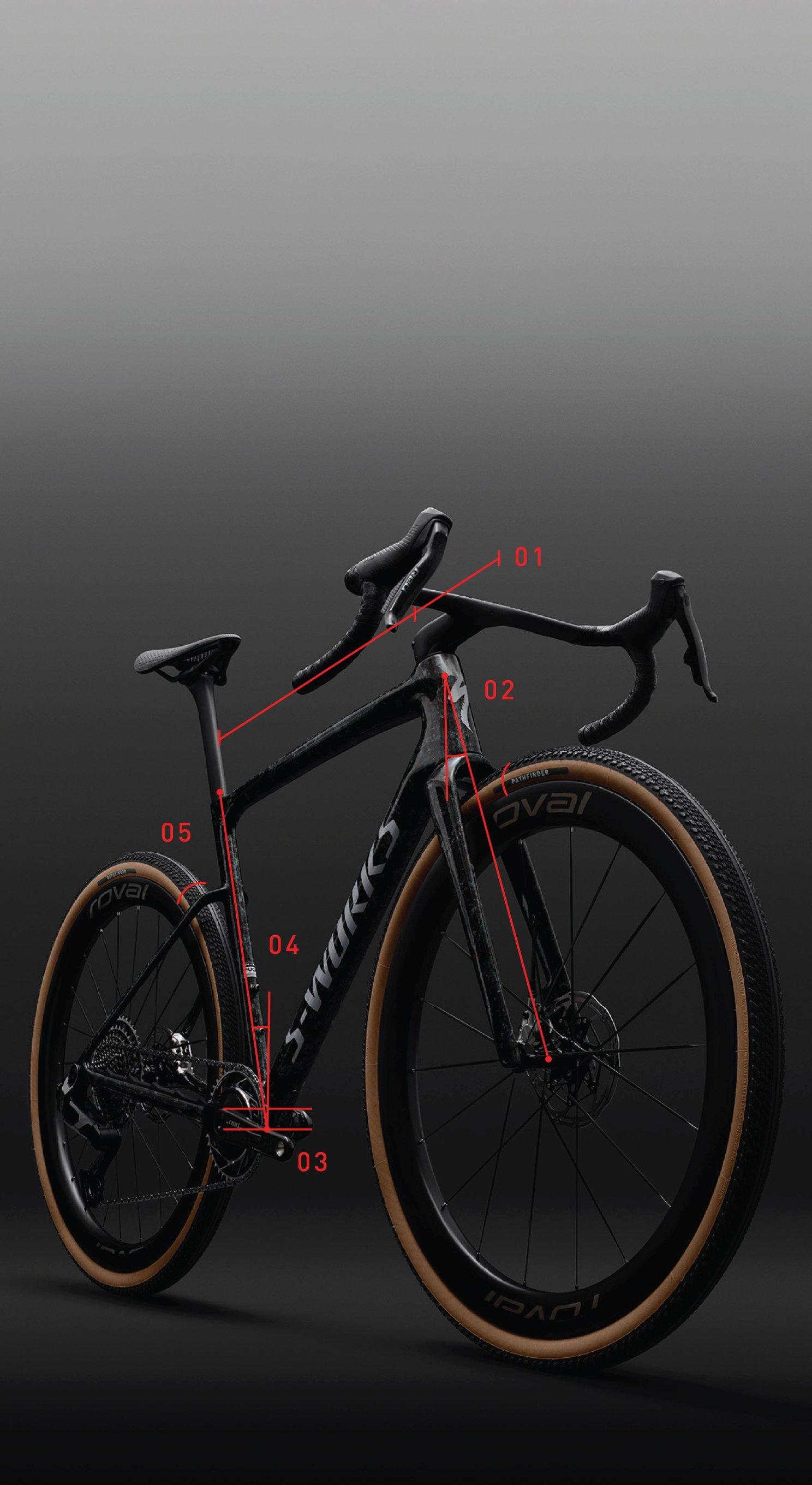

Progression is in the Details
Subtle geo changes deliver more speed and more confidence.
-
Rider First Engineered
Every size from 49–61cm delivers the same uncompromising performance.
Other Trim Levels
-
S-Works Crux 5 - SRAM RED XPLR
Viewing
-

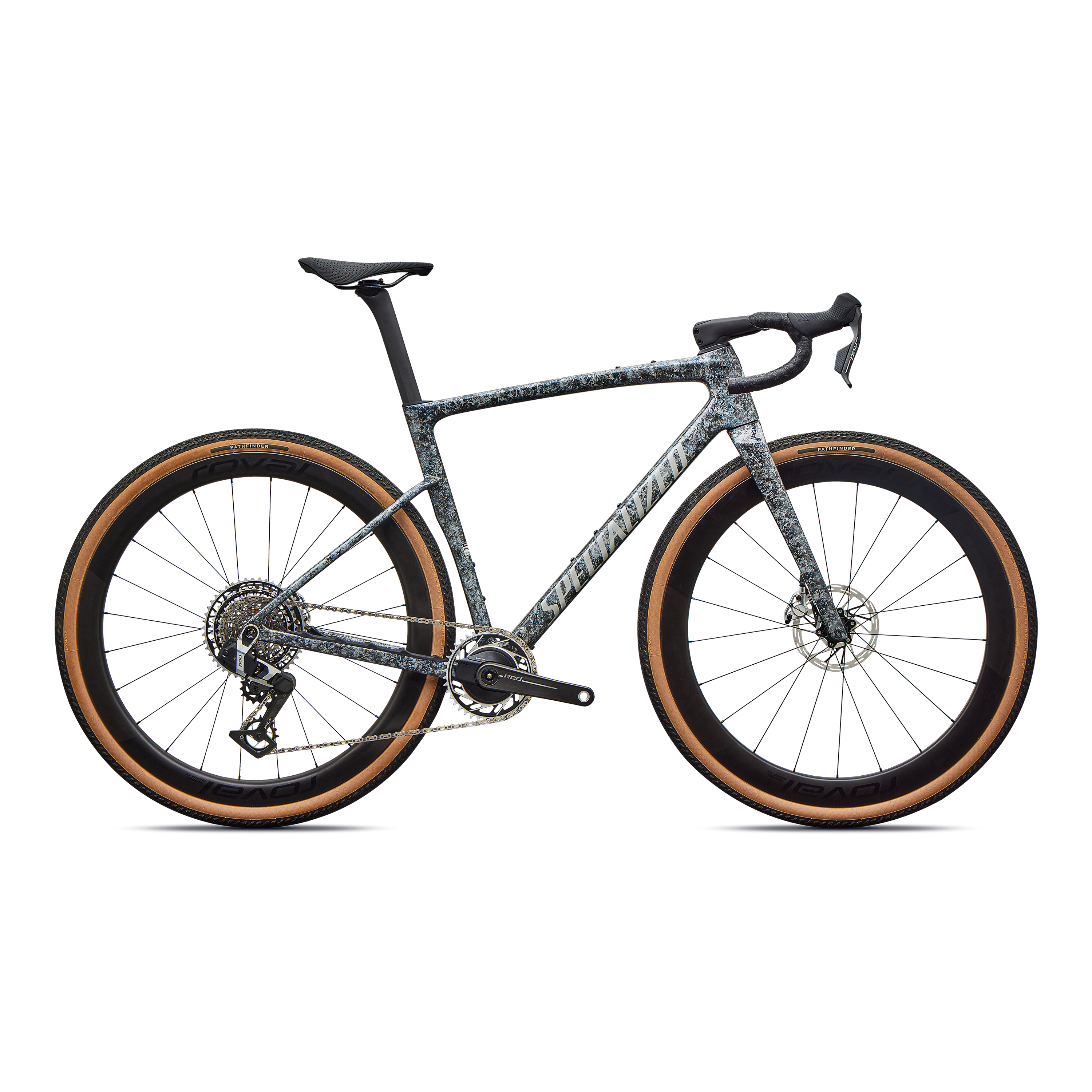

Crux 5 S-Level - SRAM RED XPLR
Crux 5 S-Level
-

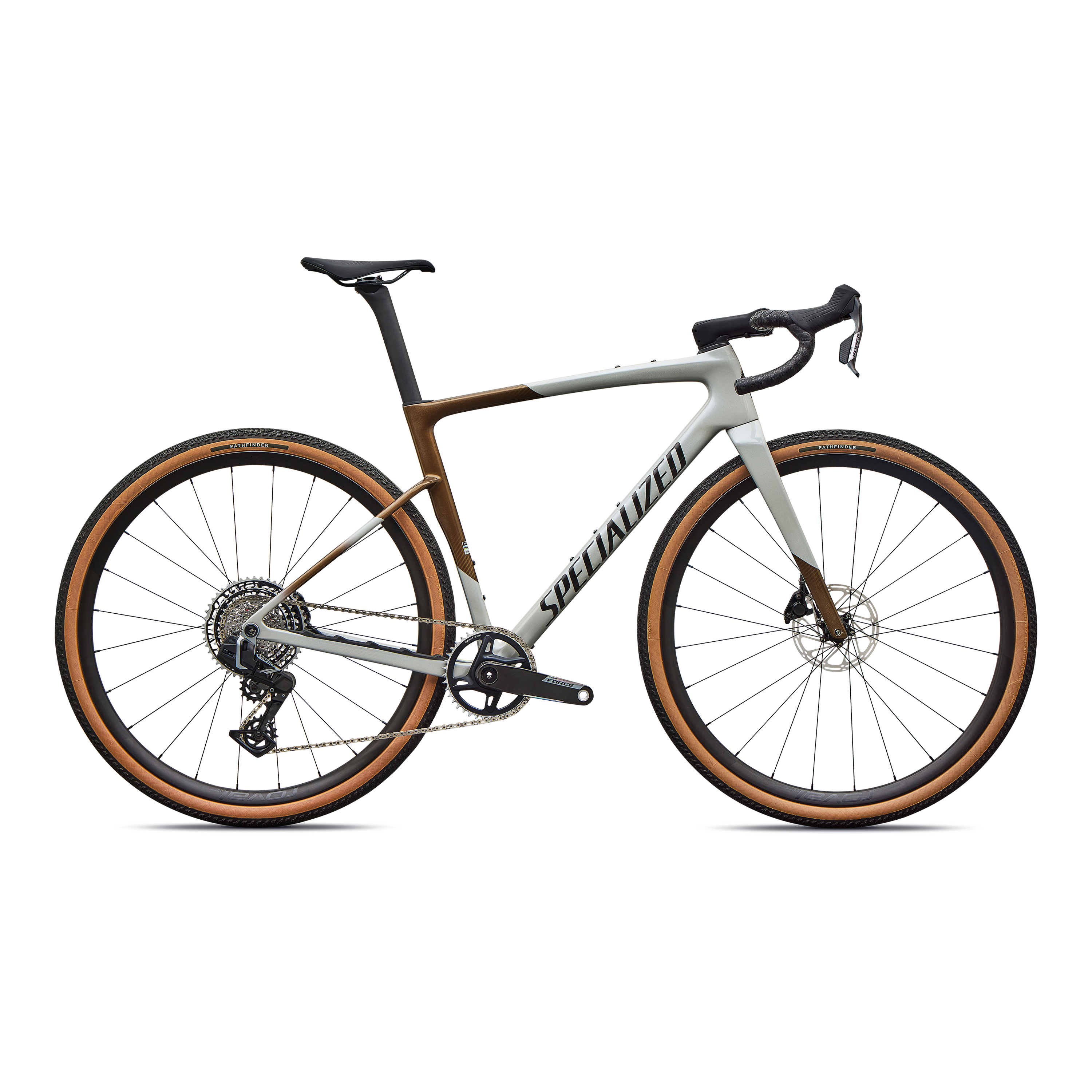

Crux 5 Expert - SRAM Force XPLR
Crux 5 Expert
-

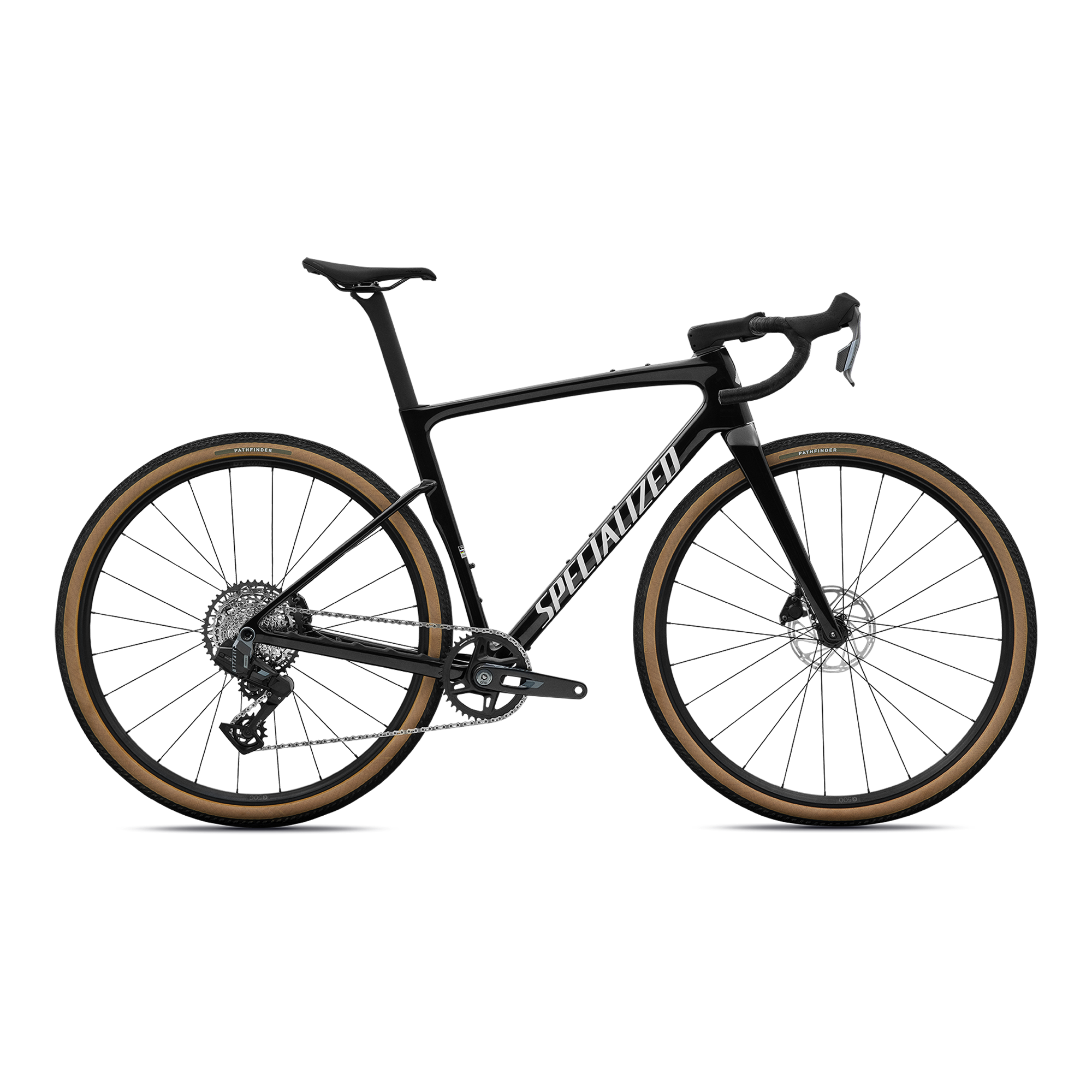

Crux 5 Comp - SRAM Rival XPLR
Crux 5 Comp
-

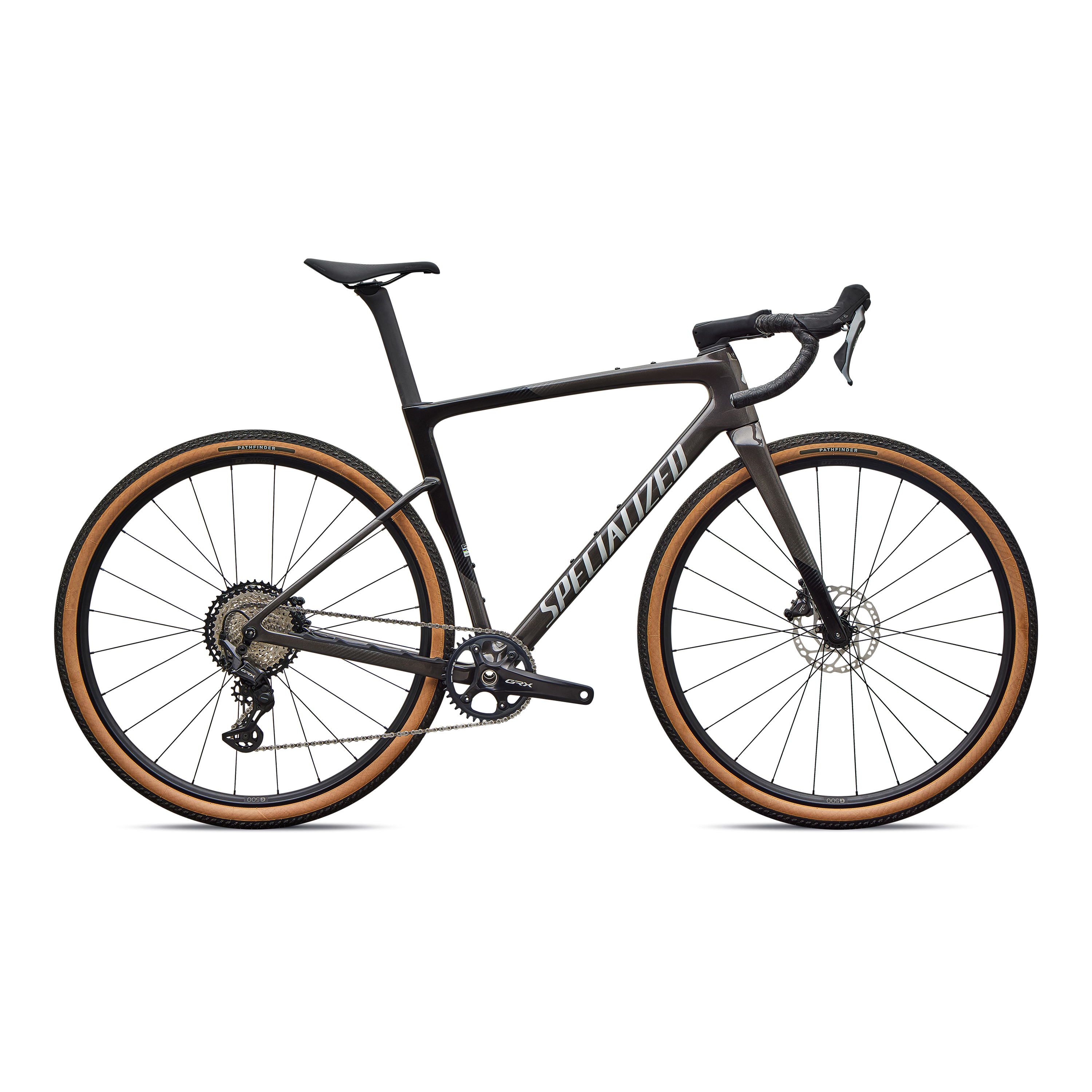

Crux 5 Sport - Shimano GRX 800
Crux 5 Sport
-

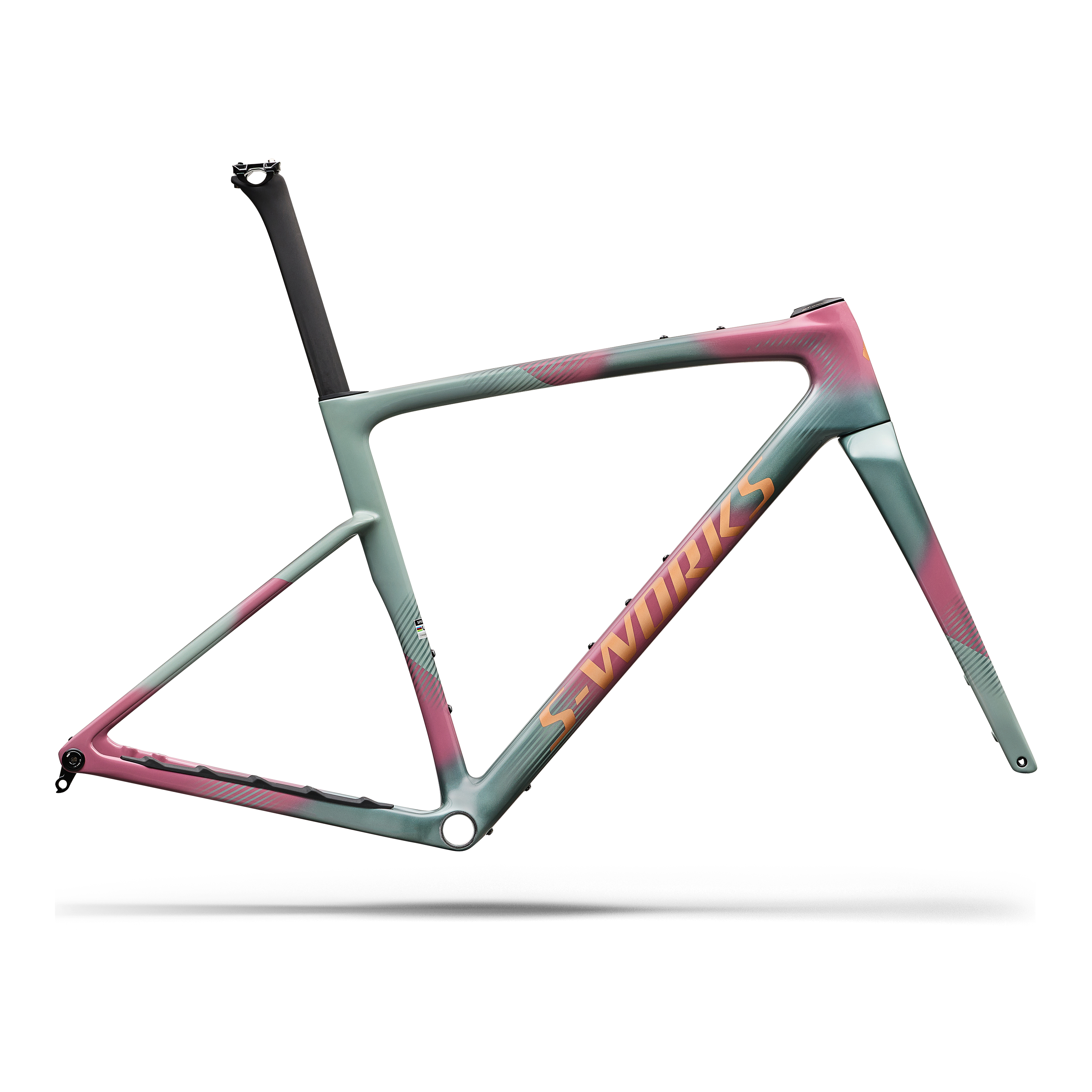

S-Works Crux 5 Frameset - FACT 12r Carbon
Crux 5 S-Works Frameset
-

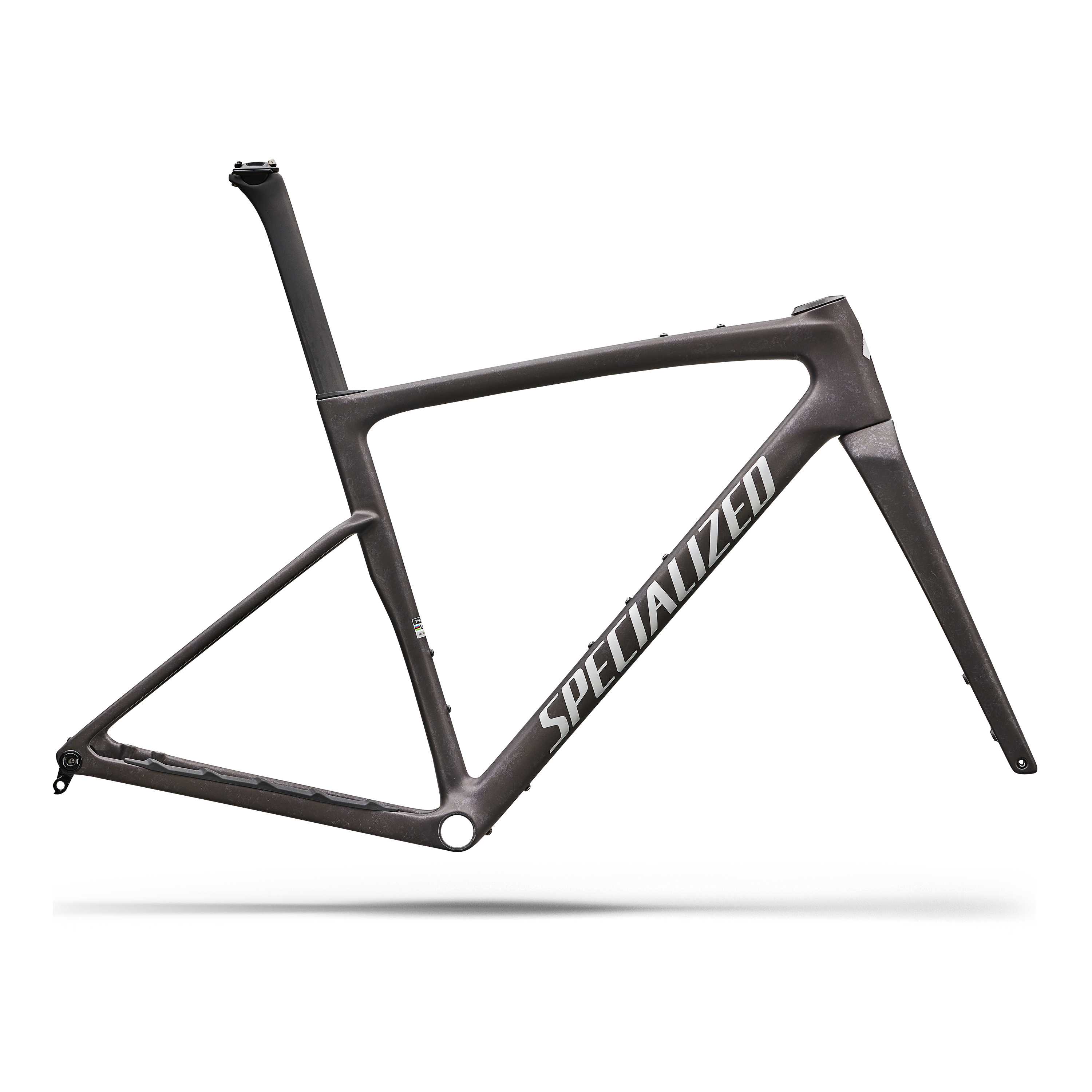

Crux 5 Frameset - FACT 10r Carbon
Crux 5 10r Frameset
Overview
Overview
At a Glance
- Use: Gravel Racing
- Frame: FACT 12r Carbon: 789 grams
- Wheels: Roval Terra Aero CLX
- Cockpit: Roval Terra Integrated
- Drivetrain: SRAM RED XPLR
- Weight: 7.1 kg
Technical Specifications
Technical Specifications
| Frame | S-Works Crux 5 FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Front brake | SRAM RED E1, hydraulic disc |
| Rear brake | SRAM RED E1, hydraulic disc |
| Shift levers | SRAM RED AXS E1, hydraulic disc |
| Rear derailleur | SRAM RED AXS XPLR E1, 13-speed |
| Cassette | SRAM RED XPLR E1, 13-speed, 10-46t |
| Chain | SRAM RED E1 |
| Crankset | SRAM RED XPLR E1, Quarq power meter, 40t |
| Bottom bracket | Ceramic Speed BB Alpha, BSA DUB |
| Front tire | Pathfinder 700x45, Tubeless Ready |
| Front wheel | Roval Terra Aero CLX, 27mm internal width, tubeless ready, 50mm depth, 18h, Roval LF18-F hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces |
| Rear tire | Pathfinder 700x45, Tubeless Ready |
| Rear wheel | Roval Terra Aero CLX, 27mm internal width, tubeless ready, 45mm depth, 24h, Roval LF19-R hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces |
| Inner tubes | 700x32-50mm, 60mm Presta valve |
| Handlebars | Roval Terra Cockpit, Integrated Bar/Stem |
| Tape | Supacaz Super Sticky Kush |
| Saddle | S-Works Power with Mirror |
| Seatpost | S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp |
| Seat binder | Integrated Wedge |
| Product id | 294828 |
| Weight | 7.1 kg (15 lb, 10.4 oz) |
| Weight size | 56 |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted.
| Frame size | 49 | 52 | 54 | 56 | 58 | 61 |
| Crank Length | 165mm | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
| Handlebar Width | 380mm | 380mm | 400mm | 400mm | 420mm | 420mm |
| Stem Length | 75mm | 90mm | 90mm | 100mm | 100mm | 100mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 300mm | 300mm | 380mm | 380mm | 380mm | 380mm |
| Stack | 530mm | 547mm | 560mm | 578mm | 598mm | 621mm |
| Reach | 375mm | 382mm | 388mm | 400mm | 412mm | 425mm |
| Head Tube Length | 95mm | 110mm | 125mm | 142mm | 163mm | 188mm |
| Head Tube Angle (degrees) | 70.5° | 70.75° | 71° | 71.5° | 71.5° | 71.5° |
| BB Height | 278mm | 278mm | 280mm | 280mm | 280mm | 280mm |
| BB Drop | 80mm | 80mm | 78mm | 78mm | 78mm | 78mm |
| Trail | 72mm | 71mm | 69mm | 66mm | 66mm | 66mm |
| Fork Length, Full | 401mm | 401mm | 401mm | 401mm | 401mm | 401mm |
| Fork Rake/Offset | 51mm | 51mm | 51mm | 51mm | 51mm | 51mm |
| Front Center | 594mm | 604mm | 613mm | 626mm | 644mm | 665mm |
| Chainstay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1008mm | 1016mm | 1026mm | 1039mm | 1057mm | 1078mm |
| Top Tube Length, Horizontal | 512mm | 534mm | 543mm | 566mm | 583mm | 603mm |
| Bike Standover Height | 753mm | 766mm | 781mm | 803mm | 823mm | 849mm |
| Seat Tube Length | 445mm | 456mm | 473mm | 497mm | 515mm | 545mm |
| Seat Tube Angle (degrees) | 75.5° | 74.5° | 74.5° | 74° | 74° | 74° |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
| Height (in) | size |
|---|---|
| 61-64 | 49 |
| 64-66 | 52 |
| 66-69 | 54 |
| 69-72 | 56 |
| 72-75 | 58 |
| 75-78 | 61 |
| height (cm) | size |
|---|---|
| 155-158 | 49 |
| 163-168 | 52 |
| 168-175 | 54 |
| 175-183 | 56 |
| 183-191 | 58 |
| 191-198 | 61 |
Sizing to be used as a reference only. Chat with us if you have any questions.
