Stormchaser Gravel Road Frameset
Bike Key Features
-
On-Bike Storage
Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
-
Class 5 VRS
Comfort equates to speed and distance over rough terrain Rider benefit is inherent to the design
-

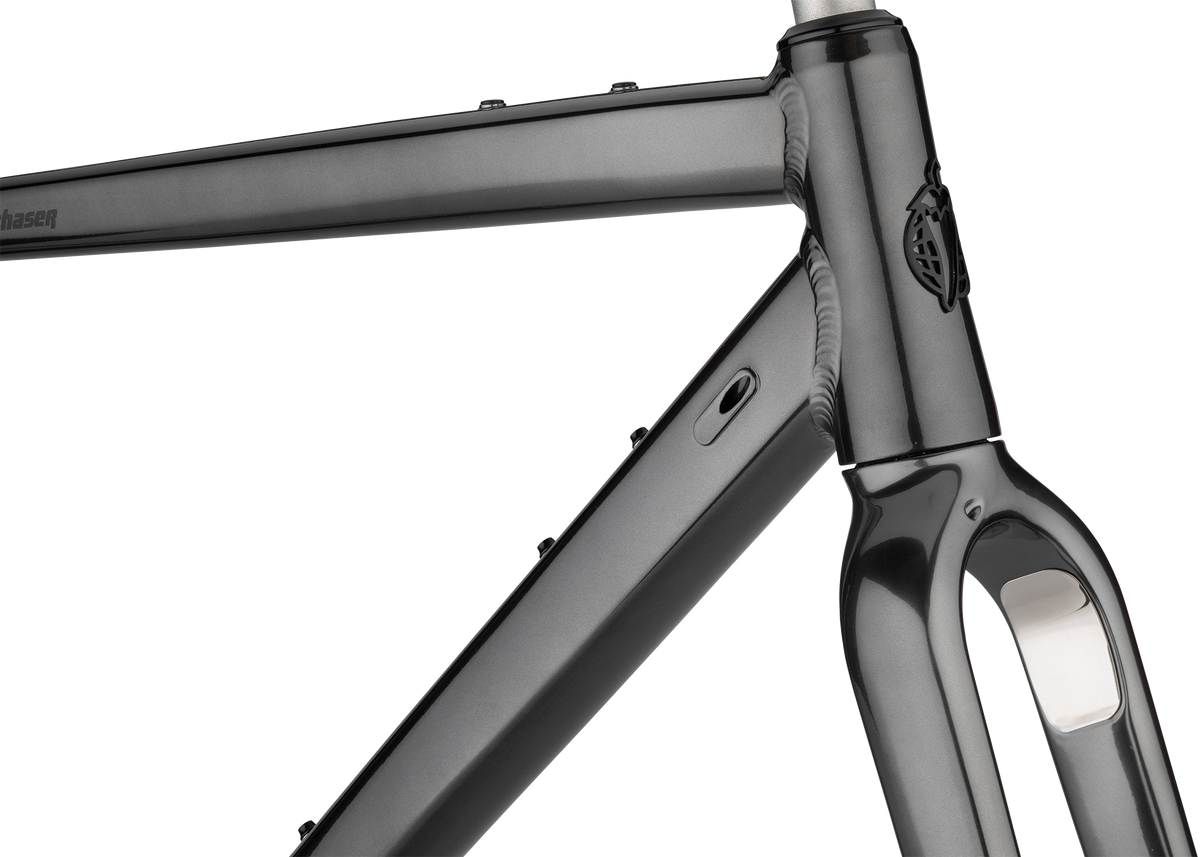

Frame Protection
Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
-

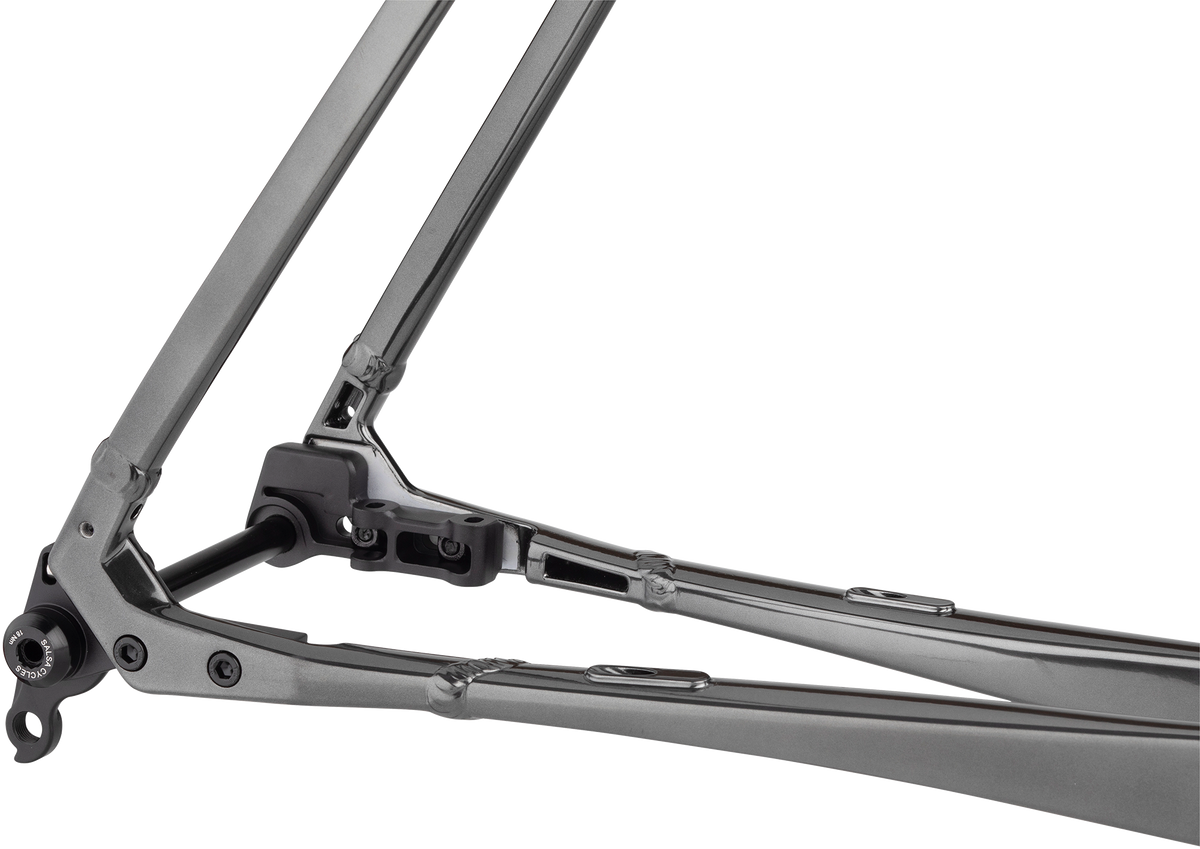

Alternator Dropouts
Adjusts chainstay length to modify ride traits and tire fit (with adjustable swing plates) Tensions chain for single-speed use (with adjustable swing plates) Gives riders upgrade options
Overview
Overview

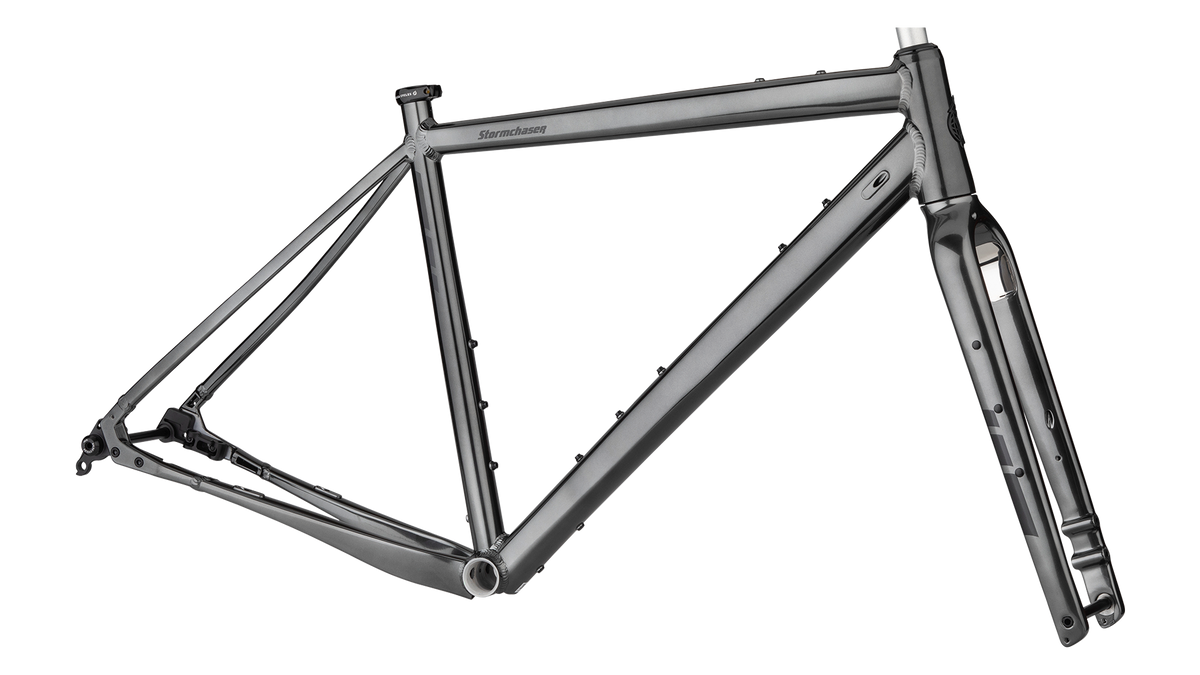

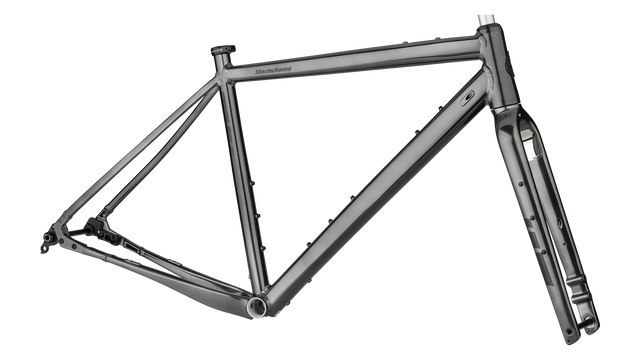

The Stormchaser single speed frameset is designed from the ground-up to take on gravel rides in inclement weather. The lightweight aluminum frame features gravel race geometry similar to Warbird; Class 5™ VRS to absorb road impacts; our all-new sliding Alternator Flat Mount dropouts make single speeding simple, and the included geared dropout plate adds 1x drivetrain compatibility; and extra tire clearance for managing mud. The carbon fiber fork is also prepared for anything—abrasion plates prevent wear from mud-caked tires, Three-Pack mounts add extra storage for water or gear, and internal routing keeps your brake hose and dynamo cable out of the elements. The Stormchaser single speed gravel frameset is a stellar starting point for a bike that performs rain or shine.
Technical Specifications
Technical Specifications
| Frame | Stormchaser Aluminum |
| Color | Black |
| Fork | Stormchaser Carbon |
| Headset | FSA No.42 ACB |
| Seatpost clamp | Salsa Lip-Lock 32.0 mm seatpost collar |
| Front hub | Salsa Deadbolt UL M12 x 167 mm thru-axle |
| Front axle | Salsa Deadbolt UL M12 x 120 mm thru-axle |
| Frame | 5lbs 12oz. for size 56cm, includes fork, headset, and axles |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted; head tube angles are in degrees. Measurements based on: a fork measuring 420x51mm a 700x42mm tire measuring 720 mm in diameter standover (B) measured vertically to top of toptube from a position 50mm forward of BB center.
| Frame size | 49cm | 52.5cm | 54.5cm | 56cm | 57.5cm | 59cm | 61cm |
| A. Effective Top Tube (mm) | 506.0 mm | 527.0 mm | 545.0 mm | 560.0 mm | 575.0 mm | 590.0 mm | 605.0 mm |
| B. Stand Over (mm) | 686.0 mm | 727.0 mm | 756.0 mm | 786.0 mm | 794.0 mm | 820.0 mm | 843.0 mm |
| C. Reach (mm) | 366.0 mm | 371.0 mm | 373.0 mm | 382.0 mm | 392.0 mm | 401.0 mm | 411.0 mm |
| D. Stack (mm) | 530.0 mm | 544.0 mm | 563.0 mm | 581.0 mm | 600.0 mm | 619.0 mm | 637.0 mm |
| E. Total Seat Tube Length (mm) | 390.0 mm | 440.0 mm | 475.0 mm | 510.0 mm | 520.0 mm | 545.0 mm | 570.0 mm |
| F. Headtube Length (mm) | 90.0 mm | 105.0 mm | 125.0 mm | 145.0 mm | 165.0 mm | 185.0 mm | 205.0 mm |
| G. Headtube Angle (degrees) | 70.0 | 70.0 | 70.0 | 70.0 | 70.0 | 70.0 | 70.0 |
| H. Seat Tube Angle (degrees) | 75.25 | 74.0 | 73.0 | 73.0 | 73.0 | 73.0 | 73.1 |
| I. BB Drop (mm) | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm |
| J. BB Height (mm) | 290.0 mm | 290.0 mm | 290.0 mm | 290.0 mm | 290.0 mm | 290.0 mm | 290.0 mm |
| K. Chainstay Length (mm) | 435.0 mm - 450.0 mm | 435.0 mm - 450.0 mm | 435.0 mm - 450.0 mm | 435.0 mm - 450.0 mm | 435.0 mm - 450.0 mm | 435.0 mm - 450.0 mm | 435.0 mm - 450.0 mm |
| L. Fork Length Axle to Crown (mm) | 420.0 mm | 420.0 mm | 420.0 mm | 420.0 mm | 420.0 mm | 420.0 mm | 420.0 mm |
| M. Fork Offset (mm) | 51.0 mm | 51.0 mm | 51.0 mm | 51.0 mm | 51.0 mm | 51.0 mm | 51.0 mm |
| N. Wheelbase (mm) | 1017.0 mm - 1032.0 mm | 1027.0 mm - 1041.0 mm | 1037.0 mm - 1051.0 mm | 1053.0 mm - 1067.0 mm | 1069.0 mm - 1084.0 mm | 1085.0 mm - 1100.0 mm | 1101.0 mm - 1116.0 mm |
| Crank Arm Length (mm) | 165.0 mm | 170.0 mm | 175.0 mm | 180.0 mm | 180.0 mm | 180.0 mm | 180.0 mm |
| Handlebar Width (cm) | 40.0 cm | 42.0 cm | 44.0 cm | 46.0 cm | 48.0 cm | 50.0 cm | 52.0 cm |
| Recommended Rider Height (cm) | 142.0 cm - 157.0 cm | 155.0 cm - 165.0 cm | 162.0 cm - 173.0 cm | 170.0 cm - 180.0 cm | 178.0 cm - 188.0 cm | 185.0 cm - 193.0 cm | 190.0 cm |
| Stem Length (mm) | 60.0 mm | 70.0 mm | 80.0 mm | 90.0 mm | 90.0 mm | 100.0 mm | 110.0 mm |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
