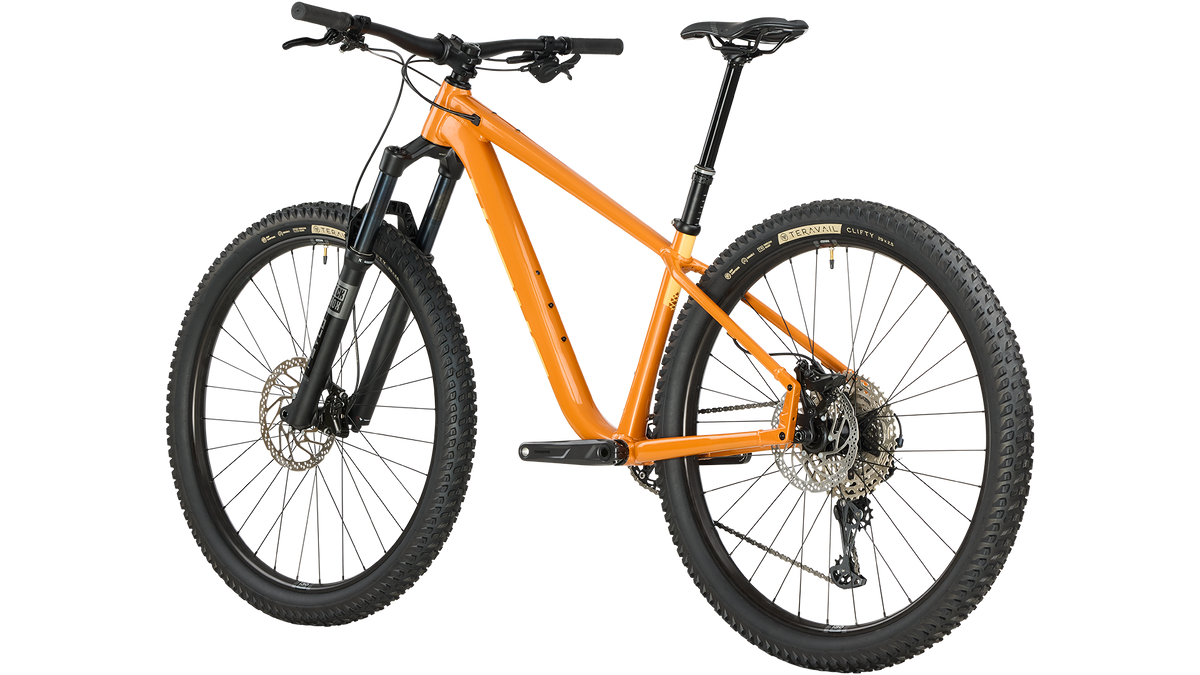

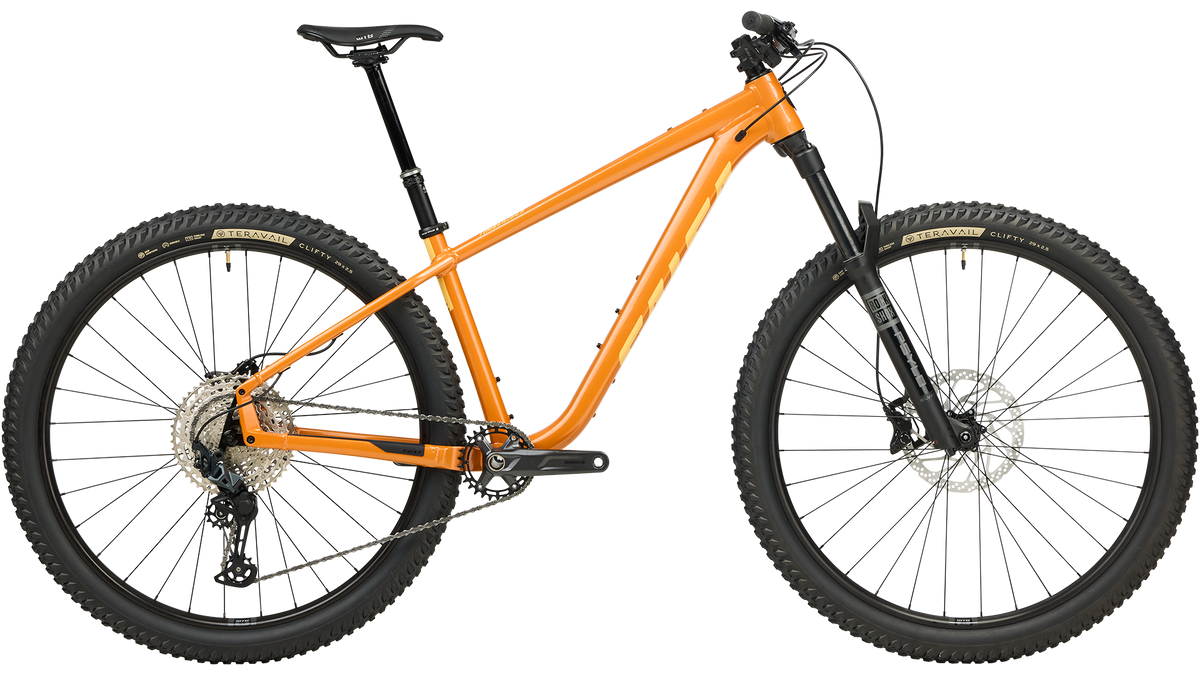

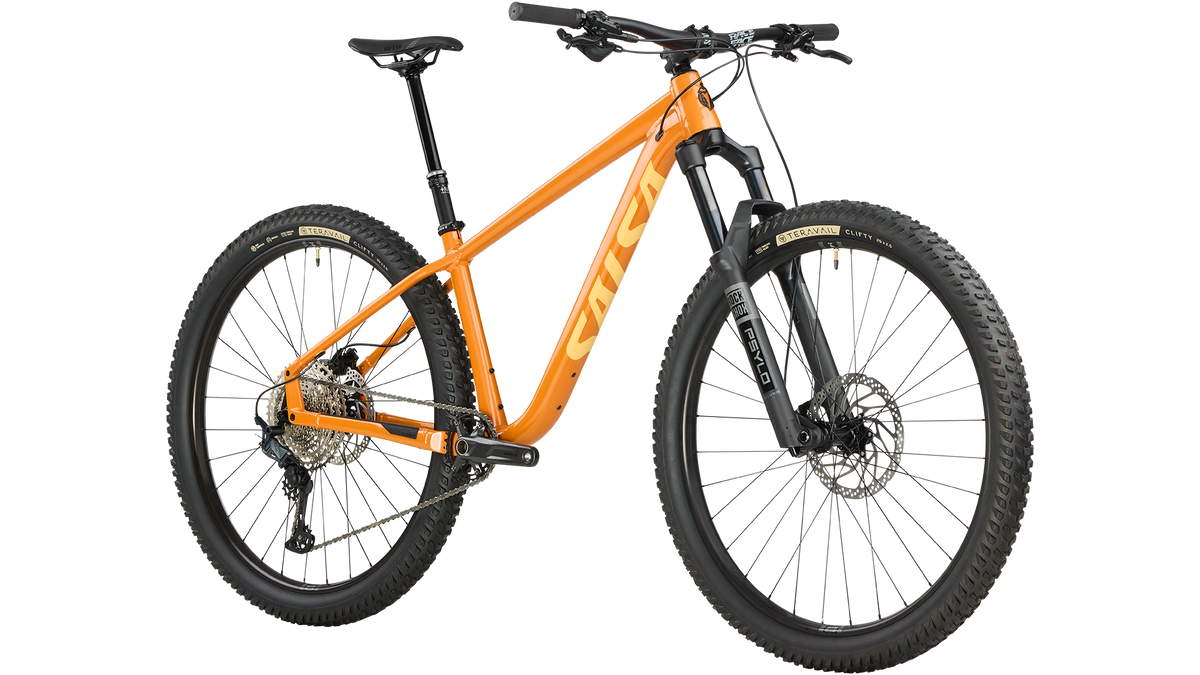

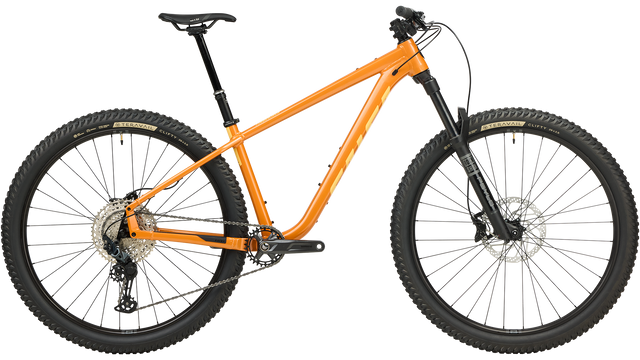

Timberjack SLX 29 Hardtail Mountain Bike
Every bike is fully assembled, tuned, and test-ridden before pickup at your chosen DFW Bike Mart location.
Expected to ship within 14 days.
Professionally built and test-ridden before it ships. Arrives mostly assembled with just minimal setup needed. See Reassembly Instructions
Delivered fully assembled and tuned by Bike Mart - ready to ride right at your doorstep within 10 miles of any DFW location.
Complete your Ride
What is the Bike Mart Return policy?
What is the Bike Mart Return policy?
Bike Mart offers a 14-day return and 30-day exchange policy in effect on qualifying items. Restocking fee may apply for "At Warehouse" Items. Read More
What Financing options does Bike Mart offer?
What Financing options does Bike Mart offer?
Financing is easier than ever at Bike Mart. With Synchrony Financial, you can choose:
- 0% APR for 6 months — on orders under $999
- 0% APR for 12 months — on orders of $1,000 or more
We also support HSA/FSA Funds with TrueMed, Shop Pay Installments and PayPal Financing.
Ship
Get your bike or equipment delivered to your home directly from Bike Mart via our FedEx or USPS Carrier partners. Adult signature is required for all bike deliveries and for equipment & gear deliveries over $500.
For orders that include a bike, it will be professionally pre-built and shipped to your home with minimal assembly needed. While we try to make it as easy as possible, basic mechanical skills and proper tools are required.
If you decide to take your bike to a local bike shop for assembly, additional fees will apply.
Pickup
We’ve made it easier than ever to get the gear and bikes you love—fast. With our Buy Online, Pick Up In Store (BOPIS) option, you can shop online and pick up your items at your convenience from any of our six DFW locations.
The best part about picking up at a Bike Mart location is that you get the same high quality service with the convenience of having the exact bike or part.
Bikes / Car Racks will be assembled and installed at no extra charge and might require additional processing time for assembly.
Delivery
When you select "Home Delivery" at checkout. Your bike will be professionally assembled and the closest Bike Mart store will call you to schedule the delivery.
We offer home delivery for bike purchases only within 10 miles of a Bike Mart location. Contact us if you live beyond 10 miles and we can discuss more options. Additional fees may apply.
In stock bikes will be delivered within 7 days. Warehouse bikes will delivered within 14 days*.
Timberjack SLX 29 Hardtail Mountain Bike
Bike Key Features
-
On-Bike Storage
Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
-
Frame Protection
Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
-
Alternator Dropouts
Adjusts chainstay length to modify ride traits and tire fit (with adjustable swing plates) Tensions chain for single-speed use (with adjustable swing plates) Gives riders upgrade options
Overview
Overview
With Timberjack, we set out to design the most versatile hardtail mountain bike around. Timberjack SLX 29 starts with an aluminum frame built on progressive trail geometry that’s plenty sendy on descents without feeling awkward pedaling back up. The 140 mm RockShox Psylo Silver RC fork handily manages trail chatter for a controlled ride. With ample on-bike storage, you can leave the backpack or hip pack at home. Our Alternator 2.0 dropouts are adjustable to allow for many different drivetrain options and ride characteristics. 29 x 2.5" wheels and tires offer a nice blend of grip and rolling efficiency. Shimano’s SLX 1 x 12 drivetrain hits the sweet spot of functionality and affordability.
Technical Specifications
Technical Specifications
| Frame | Timberjack Alloy V2 |
| Color | Terracotta Orange |
| Fork | RockShox Psylo Silver RC, 140mm, 44mm offset |
| Rear shock | N/A |
| Headset | FSA Orbit 1.5E ACB |
| Seatpost | TranzX YSI05 RAD+, Shimano MT500 lever, 30 mm travel adj |
| Stem | Salsa Guide Trail |
| Grips/bar tape | Salsa File Tread |
| Saddle | WTB Solano Medium |
| Handlebar | Race Face Chester 35 |
| Front derailleur | N/A |
| Rear derailleur | Shimano SLX M7100 SGS |
| Cassette | Shimano Deore M6100-12, 10–51t, 12-speed |
| Chain | Shimano Deore M6100 |
| Crankset | Shimano MT510, 30t |
| Shifter | Shimano Deore M6100 I-SPEC EV |
| Brake levers | Shimano MT420 4-piston brakes |
| Rotors | Shimano RT30 rotors (Center Lock, 203mm front, 180 mm rear) |
| Front wheel | Shimano MT400-B 15 x 110 mm hub, WTB ST i30 32h 29" rim |
| Rear wheel | Shimano MT410-B Micro Spline 12 x 148 mm hub, WTB ST i30 32h 29" rim |
| Front tire | Teravail Clifty 29 x 2.5", Durable casing. Tubeless accessorites: WTB TCS Rim Strip, tubeless tape, valves, and 8oz tire sealant included |
| Rear tire | Teravail Clifty 29 x 2.5", Durable casing. Tubeless accessorites: WTB TCS Rim Strip, tubeless tape, valves, and 8oz tire sealant included |
| Complete bike | 32 lbs 14 oz (size Medium) |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements provided in mm unless otherwise noted; head tube angles are in degrees. Measurements based on: an 510.5mm fork which is equivalent to an average 543mm length 29" 130mm suspension fork at 25% sag a 27.5 x 2.8" tire measuring 724.5mm in diameter Standover is measured vertically to top of top tube from a position 50mm forward of BB center with an unsagged suspension fork Wheelbase at 420mm chainstay length
| Frame size | X-Small | Small | Medium | Large | X-Large |
| A. Effective Top Tube (mm) | 570.0 mm | 594.1 mm | 615.3 mm | 639.0 mm | 659.3 mm |
| B. Stand Over (mm) | 702.9 mm | 722.6 mm | 742.1 mm | 772.1 mm | 792.9 mm |
| C. Reach (mm) | 410.7 mm | 433.6 mm | 453.6 mm | 475.5 mm | 492.6 mm |
| D. Stack (mm) | 599.0 mm | 599.0 mm | 607.4 mm | 613.5 mm | 625.5 mm |
| E. Total Seat Tube Length (mm) | 342.9 mm | 370.0 mm | 395.0 mm | 432.0 mm | 457.2 mm |
| F. Headtube Length (mm) | 100.0 mm | 100.0 mm | 105.0 mm | 115.0 mm | 125.0 mm |
| G. Headtube Angle (degrees) | 66.4 | 66.4 | 66.4 | 66.4 | 66.4 |
| H. Seat Tube Angle (degrees) | 75.1 | 75.1 | 75.1 | 75.1 | 75.1 |
| I. BB Drop (mm) | 56.6 mm | 56.6 mm | 56.6 mm | 56.6 mm | 56.6 mm |
| K. Chainstay Length (mm) | 420.0 mm | 420.0 mm | 420.0 mm | 420.0 mm | 420.0 mm |
| L. Fork Length Axle to Crown (mm) | 543.0 mm | 543.0 mm | 543.0 mm | 543.0 mm | 543.0 mm |
| M. Fork Offset (mm) | 44.0 mm | 44.0 mm | 44.0 mm | 44.0 mm | 44.0 mm |
| N. Wheelbase (mm) | 1120.0 mm | 1142.5 mm | 1164.5 mm | 1180.5 mm | 1211.7 mm |
| Crank Arm Length (mm) | 165.0 mm | 165.0 mm | 170.0 mm | 170.0 mm | 180.0 mm |
| Handlebar Width (cm) | 780.0 cm | 780.0 cm | 780.0 cm | 780.0 cm | 780.0 cm |
| Recommended Rider Height (cm) | 157.0 cm - 163.0 cm | 160.0 cm - 175.0 cm | 173.0 cm - 183.0 cm | 180.0 cm - 191.0 cm | 188.0 cm |
| Stem Length (mm) | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
