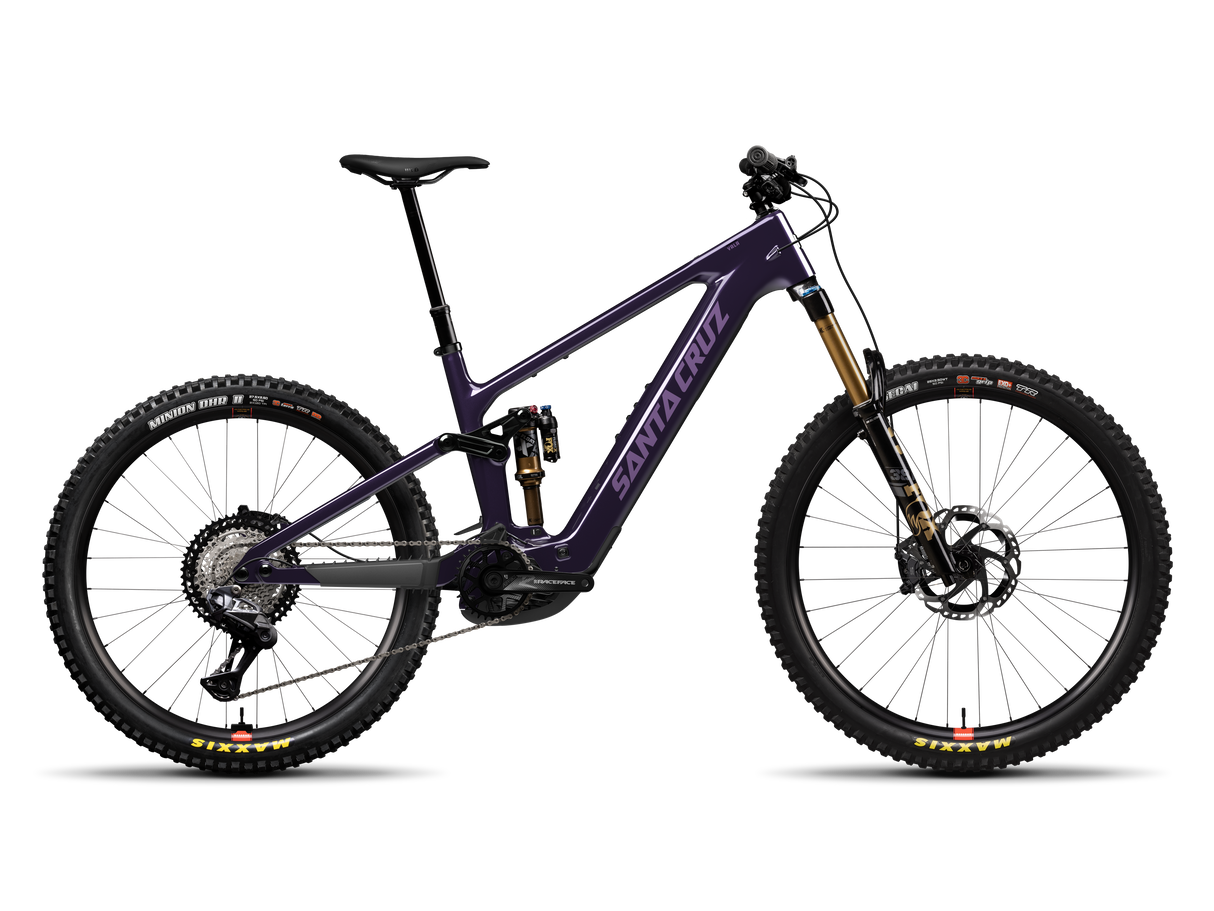

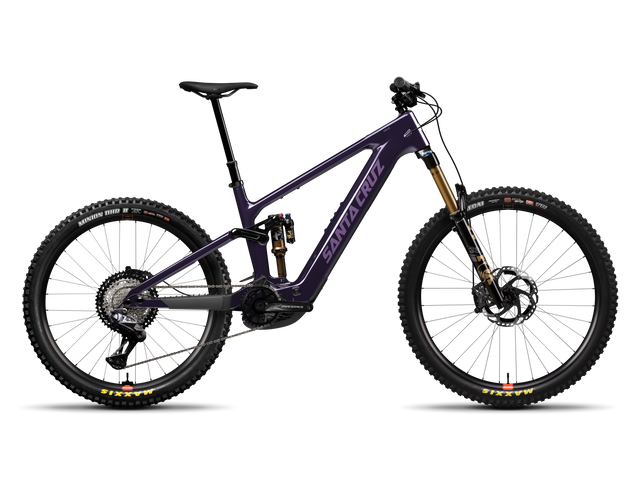

Vala XT Di2 Full Suspension Electric Mountain Bike
Overview
Overview
Technical Specifications
Technical Specifications
| Frame | Carbon C MX 150mm Travel 4-Bar |
| Travel | 150mm |
| Material | Carbon C |
| Wheel size | MX |
| Weight | 47.3lbs / 21.45kg |
| Battery | Bosch PowerTube Battery 600Wh |
| Bb | N/A |
| Brakes | Shimano XT 8220 |
| Cassette | Shimamo XT 8200, 10-51t |
| Chain | Shimano XT 8100, 12spd |
| Chainguide | OneUp Chainguide |
| Crankset | RaceFace Aeffect R All Sizes: 160mm |
| Drive unit | Bosch Performance CX BDU38 |
| Fork | FOX 38 Factory, Grip X2, 160mm |
| Front hub | DT Swiss 350, 15x110, 6-Bolt, 32h |
| Front rim | Reserve 30|HD AL 6069 |
| Front rotor | Shimano MT905, 203mm |
| Front tire | Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
| Grips bar tape | Santa Cruz Bicycles House Grips |
| Handlebars | Santa Cruz Carbon Bar All Sizes: 35x800mm, 35mm Rise |
| Headset | Cane Creek 50 IS Integrated Headset |
| Rear derailleur | Shimano 26 Deore XT M8260 Di2 SGS 12spd |
| Rear hub | DT Swiss 350 DEG, 12x148, MS, 6-Bolt, 72t, 32h |
| Rear rim | Reserve 30|HD AL 6069 |
| Rear rotor | Shimano MT905, 203mm |
| Rear shock | FOX Float X Factory, 205x60 |
| Rear tire | Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra, DoubleDown |
| Right shifter | Shimano Deore XT M8250 Shift Switch |
| Saddle | WTB Silverado Medium Fusion, CroMo SL |
| Seatpost | OneUp Dropper Post, 31.6 S: 120mm. M: 180mm, L: 210mm, XL/XXL: 240mm |
| Stem | OneUp Enduro Stem All Sizes: 42mm |
| Valves | Reserve Fillmore Valves |
| Is electric | Yes |
| Bb shell | EMTB |
| Brake mount | 200mm PM |
| Eye to eye length | 205mm |
| Fork axle to crown | 571mm |
| Fork offset | 44mm |
| Front derailleur mount | No Compatibility |
| Headset headtube | Integrated (IS41/52) |
| Max chainring size | 36t |
| Max rotor size | 220mm |
| Max tire size | 2.5" |
| Rear spacing | 148mm |
| Rear travel | 151mm |
| Recommended sag | 30% |
| Seat clamp | 36.4mm |
| Seat post diameter | 31.6mm |
| Stroke | 60mm |
| Suspension system | Four-bar |
| Udh compatible | Yes |
| Water bottle mounts | 1 |
Parts are subject to change without notice. Chat with us if you have any questions.
Geometry
Geometry
All measurements are in millimeters or degrees unless otherwise noted.
| Frame size | S | M | L | XL | XXL |
| Reach (Hi/Lo) (mm) | 435/432 | 460/456 | 480/477 | 500/497 | 525/522 |
| Stack (Hi/Lo) (mm) | 623/625 | 632/635 | 641/643 | 655/657 | 668/670 |
| Head Tube Angle (Hi/Lo) (degrees) | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Head Tube Length (mm) | 110 | 120 | 130 | 145 | 160 |
| Rear Center (mm) | 439 | 440 | 443 | 446 | 450 |
| Front Center (mm) | 771 | 800 | 825 | 851 | 883 |
| BB Height (Hi/Lo) (mm) | 344/340 | 344/340 | 344/340 | 344/340 | 344/340 |
| BB Drop Front (Hi/Lo) (mm) | 28/32 | 28/32 | 28/32 | 28/32 | 28/32 |
| BB Drop Rear (Hi/Lo) (mm) | 11/15 | 11/15 | 11/15 | 11/15 | 11/15 |
| Wheelbase (mm) | 1210 | 1240 | 1268 | 1297 | 1333 |
| Top Tube Length (mm) | 573 | 601 | 622 | 645 | 673 |
| Seat Tube Length (mm) | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle (Hi/Lo) (degrees) | 77.5°/77.2° | 77.5°/77.2° | 77.5°/77.2° | 77.5°/77.2° | 77.5°/77.2° |
| Standover Height (Hi/Lo) (mm) | 741/undefined | 735/undefined | 734/undefined | 734/undefined | 728/undefined |
This Geometry Chart is provided by the Manufactuer. Chat with us if you have any questions.
Sizing
Sizing
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following. Personal Preference: A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around. Body Dimension: Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
| Size | Height range | Reach |
|---|---|---|
| Medium | 165cm 5'5" - 175cm 5'9" | 460mm |
| Large | 175cm 5'9" - 185cm 6'1" | 480mm |
| X-Large | 182cm 6'0" - 193cm 6'4" | 500mm |
Sizing to be used as a reference only. Chat with us if you have any questions.
