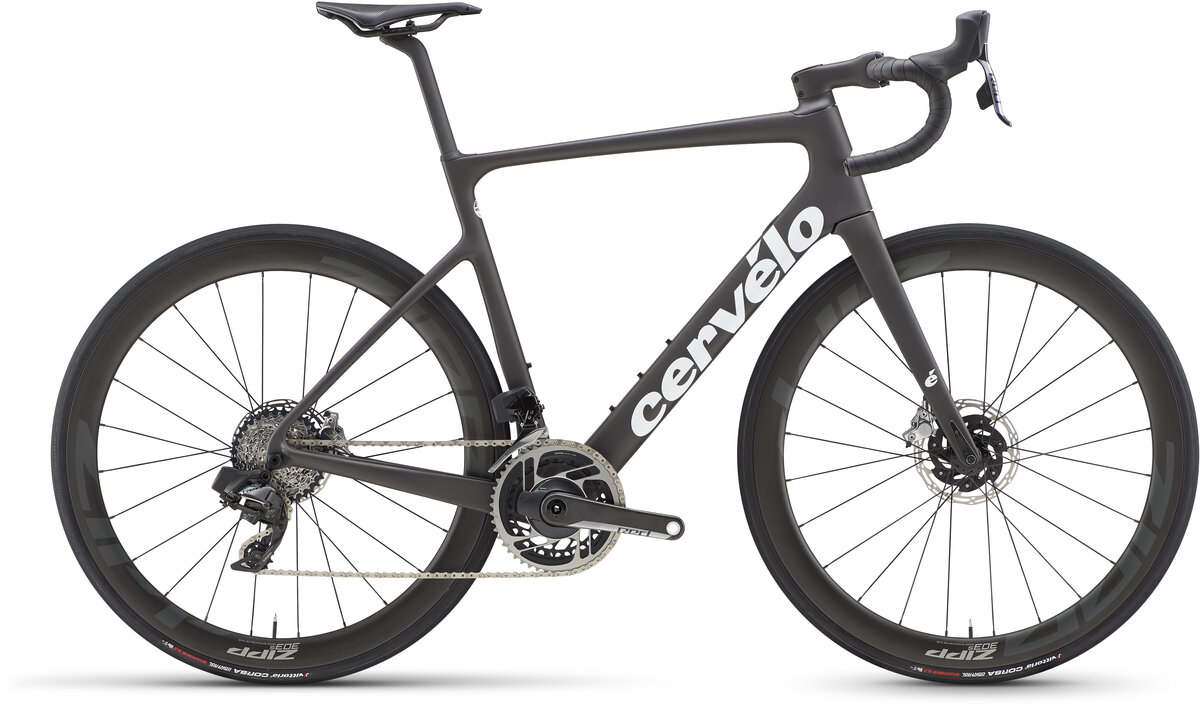

A NEW BIKE FOR CLASSIC RIDES
We don't see road bikes as delicate machines meant only for putting watts into and receiving speed from. They're an extension of our soul, of the way we want to see our worlds, and the lives we want to live. Sometimes that means cutting across park grass, and sometimes it's seeing where that dirt road off to the left leads you. The Caledonia-5 is a bike for the modern road rider.
The Caledonia is the bike we keep reaching for when we know the odometer's going well past the triple-digit mark. Long rides invariably have some smooth tarmac, some junk pavement over backroads, a cutty singletrack connector, and maybe even your own local Strade Bianche sector. So we built a bike that could take on all of them, do it well, and fit fenders in case the ominous clouds turn into a downpour 130km into your day.
We developed the Caledonia-5 in collaboration with our World Tour riders to satisfy the need for a dedicated cobbles bike. Faster handling isn't necessarily better-we engineered the handling based on the specific use-case. In this case, it's Roubaix. Roubaix is harder on bikes than any other race on the calendar, and there's zero margin for error. We increased the rear center, lowered the BB, and increased the trail. The handling is still fast, but we've added stability.
Modern road riders are looking for bikes to handle long-distance, high pace, no limits, and offer maximum fun. By placing lower modulus carbon in key areas to mitigate the brittleness of hi-mod fiber-the Caledonia delivers performance, comfort, and speed. Oh, and you can fit a 34mm tire in there. Or 31mm with fenders.

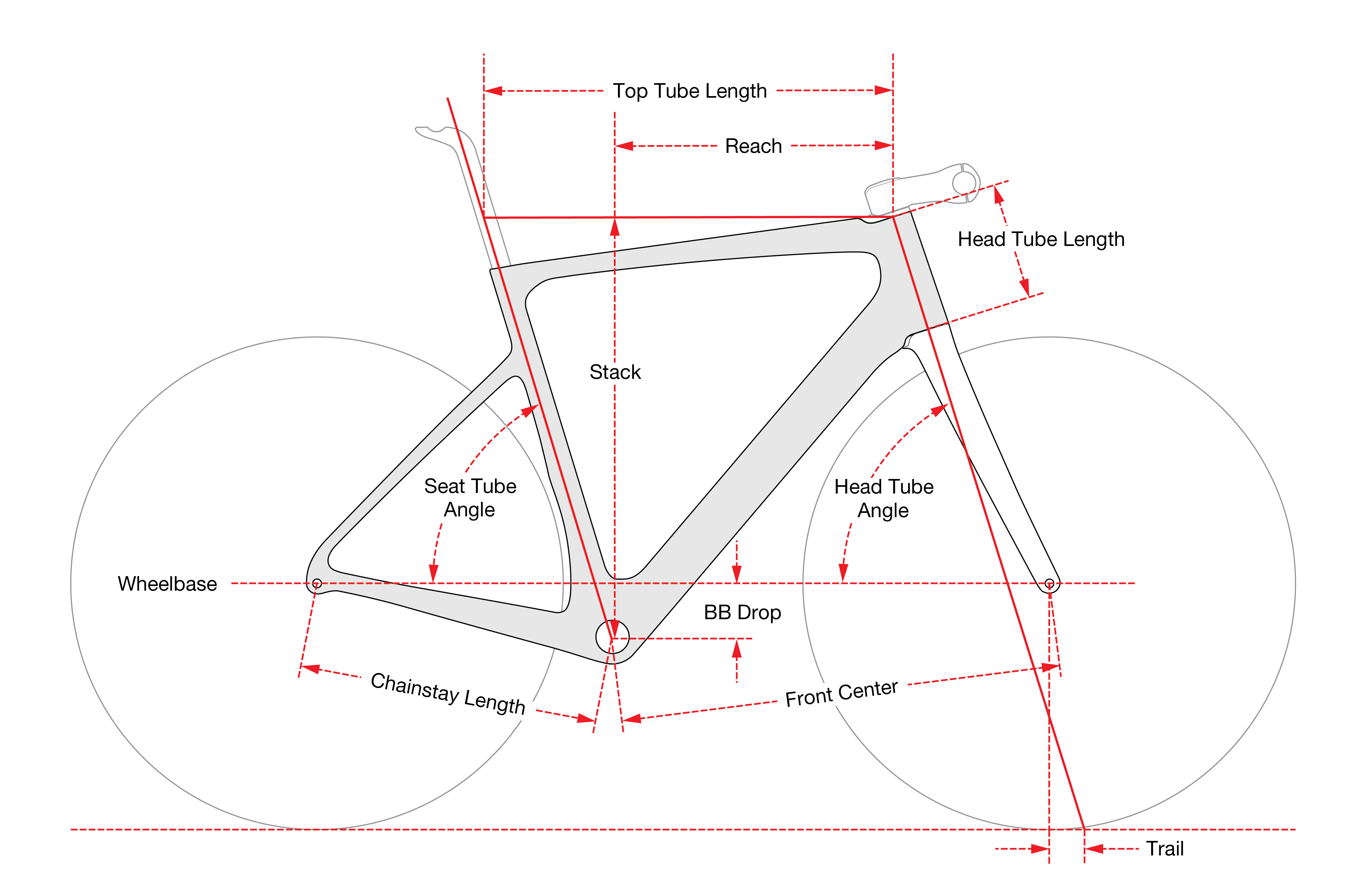

|SEAT TUBE ANGLE||74.5°||74°||73.5°||73°||73°||73°|
|TOP TUBE LENGTH||502MM||522MM||543MM||565MM||581MM||598MM|
|HEAD TUBE ANGLE||70.5°||71.5°||72°||72°||72°||72°|
|HEAD TUBE LENGTH||89.5MM||109.9MM||136MM||162.3MM||191.2MM||217.5MM|
|BOTTOM BRACKET DROP||76.5MM||76.5MM||74MM||74MM||71.5MM||71.5MM|
|Frame||Cervélo All-Carbon, Tapered Caledonia-5 Fork|
|Wheels||Zipp 303 S, 24h (F), 24h (R), 23mm IW, Center-Lock, Tubeless Ready|
|Axles||Cervelo Indexed Thru-Axles w/ Lever, 12x100/142|
|Tires||Vittoria Corsa Control TLR G2.02.0 28c|
|Bottom Bracket||Ceramic Speed Dub|
|Crankset||SRAM Red AXS 48/35 with Power Meter|
|Shifters||SRAM RED eTap AXS HRD 12 spd|
|Front Derailleur||SRAM RED eTap AXS 12 spd|
|Rear Derailleur||SRAM RED eTap AXS 12 spd|
|Cassette/Freewheel||SRAM Force 12s XG1270, 10-36|
|Chain||SRAM RED 12 spd|
|Brakes||SRAM CenterLine XR 160mm|
|Handlebars||Cervélo HB13 Carbon|
|Stem||Cervélo ST31 Carbon|
|Headset||FSA IS2 1-1/4 x 1-1/2|
|Seatpost||Cervélo SP24 Carbon|
|Saddle||Prologo Dimension NACK|
|Accessories & Extras||Cervelo Faceplate Front Computer/Accessory Mount, Cervelo Rear Accessory Mount, Removeable Fender Mounts|
* Subject to change without notice.
|Five Black / 48cm||4250773368005||0H0CFARX1C48|
|Five Black / 51cm||4250773368012||0H0CFARX1C51|
|Five Black / 54cm||4250773368029||0H0CFARX1C54|
|Five Black / 56cm||4250773368036||0H0CFARX1C56||CER444226932|
|Five Black / 58cm||4250773368043||0H0CFARX1C58|
|Five Black / 61cm||4250773368050||0H0CFARX1C61|
